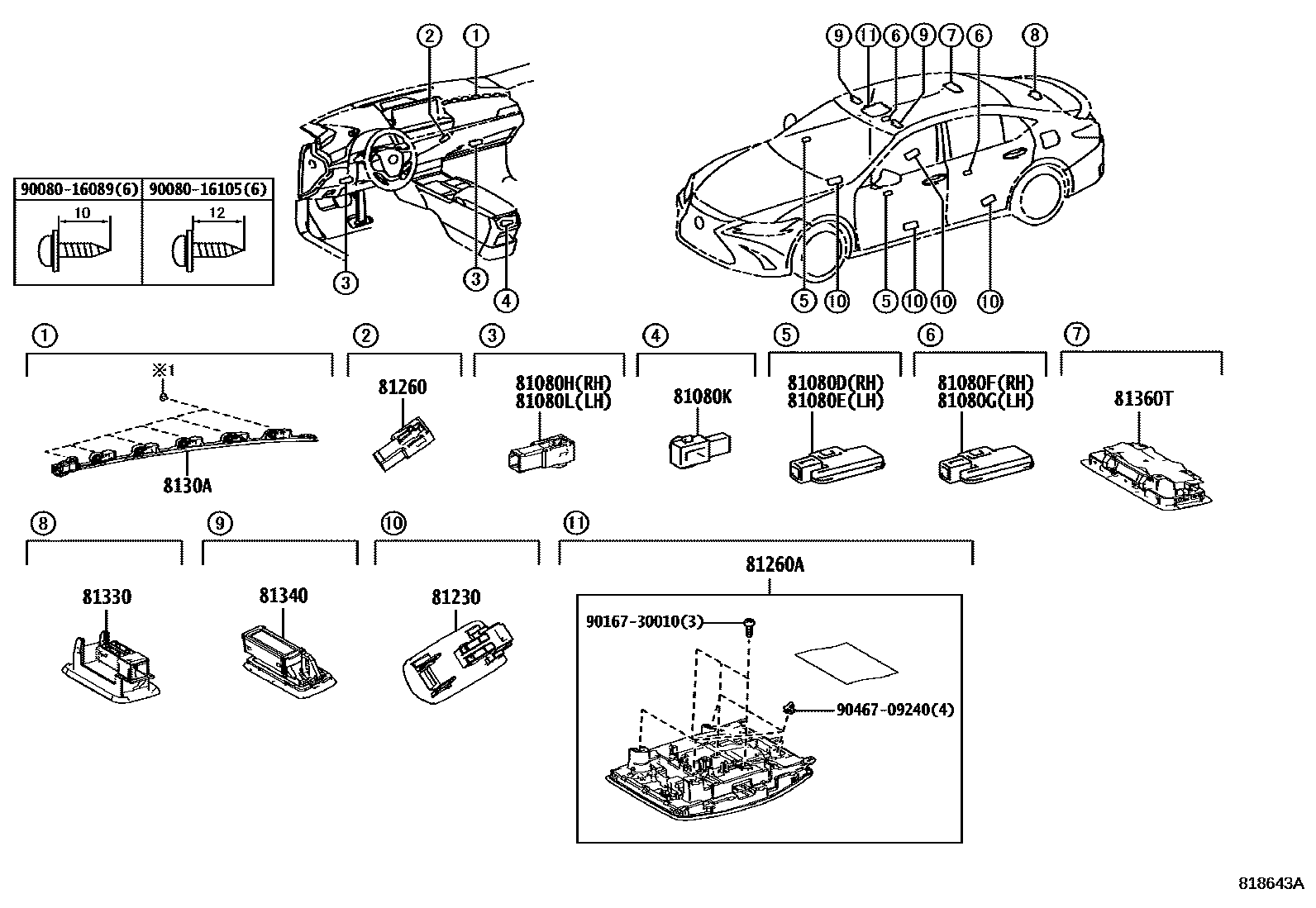

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
WHITE,TRIM1#,20,21,22,23
WHITE,TRIM1#,2#
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#
WHITE,TRIM1#,20,21,22,23
WHITE,TRIM1#,2#
BLACK,TRIM24,25,26
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
WHITE,TRIM1#,20,21,22,23
WHITE,TRIM1#,2#
WHITE,TRIM0#,20,21,22,23,6#
BLACK,TRIM24,25
BLACK,TRIM24,25,26
BLACK,TRIM24,25,26,7#
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81360TLAMP ASSY, SPOT
WHITE,TRIM1#,20,21,22,23
WHITE,TRIM1#,2#
WHITE,TRIM0#,20,21,22,23,6#
BLACK,TRIM24,25,26,7#
BLACK,TRIM24,25,26
BLACK,TRIM24,25
NOBLE BROWN,TRIM5#,6#
HAZEL,TRIM4#
9008016089
main90080-16089
9008016105
main90080-16105
9016730010
main90167-30010
9046709240
main90467-09240
18 parts on this diagram · 1 diagram in section
