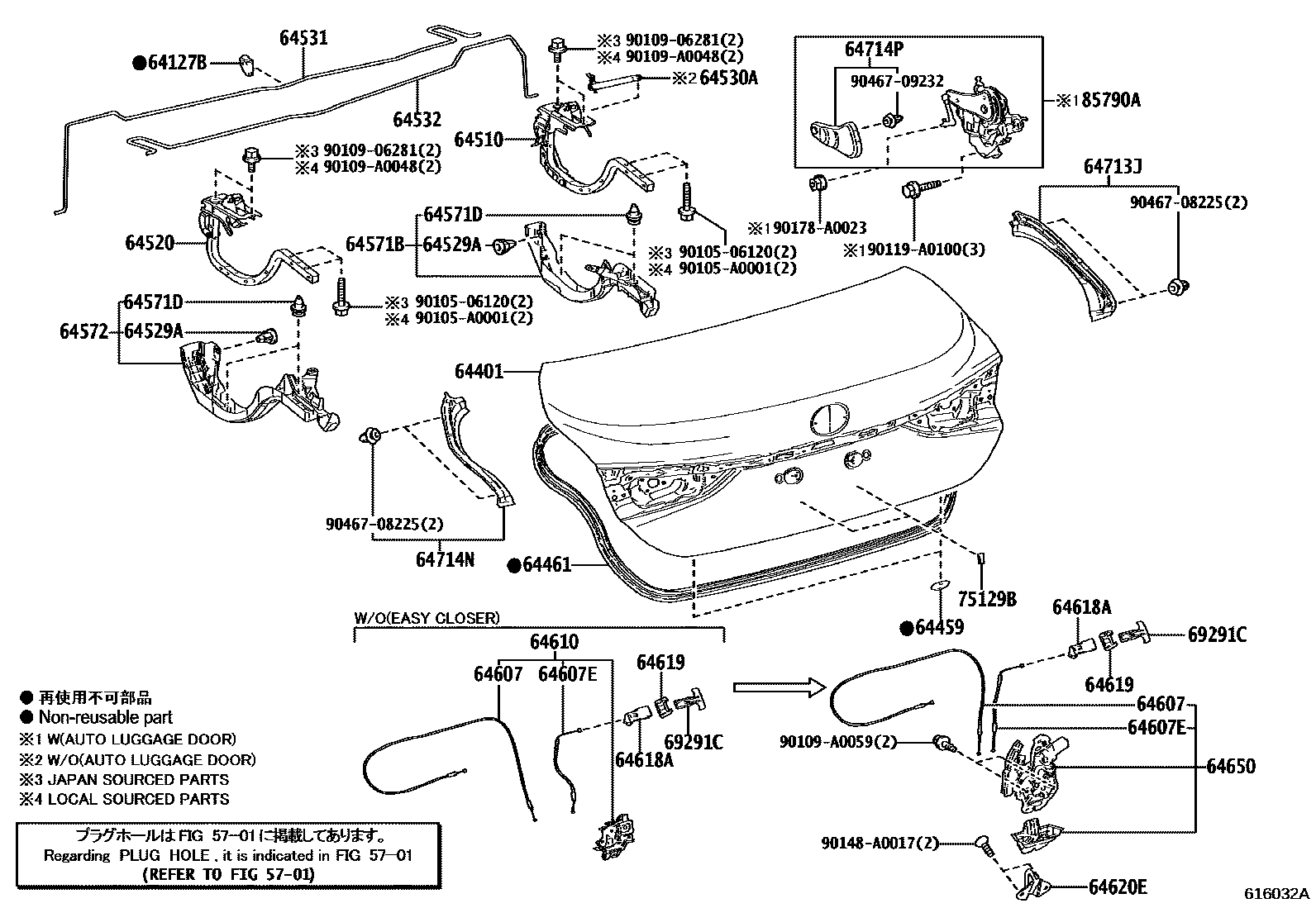

LUGGAGE COMPARTMENT DOOR & LOCK
5701
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
REAR SPOILER-WITH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
AUTO & EASY DOOR CLOSER(LUGGAGE)-WITH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
REAR SPOILER-WITH&AUTO & EASY DOOR CLOSER(LUGGAGE)-WITH
AUTO & EASY DOOR CLOSER(LUGGAGE)-WITH
REAR SPOILER-WITH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
REAR SPOILER-WITH&AUTO & EASY DOOR CLOSER(LUGGAGE)-WITH
AUTO & EASY DOOR CLOSER(LUGGAGE)-WITH
REAR SPOILER-WITH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
BLACK
64619PLATE, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM1#,2#,5#,6#
BLACK,TRIM0#,2#,4#,6#,7#
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64650CLOSER ASSY, LUGGAGE DOOR
main64650-06010
64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
64714PCOVER, DECK SIDE TRIM, RH
69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE
75129BCUSHION, REAR LICENCE PLATE
85790AMOTOR ASSY, LUGGAGE CLOSER
9010506120
main90105-06120
90105A0001
main90105-A0001
9010906281
main90109-06281
90109A0048
main90109-A0048
90109A0059
main90109-A0059
90119A0100
main90119-A0100
90148A0017
main90148-A0017
90178A0023
main90178-A0023
9046708225
main90467-08225
9046709232
main90467-09232
37 parts on this diagram · 1 diagram in section
