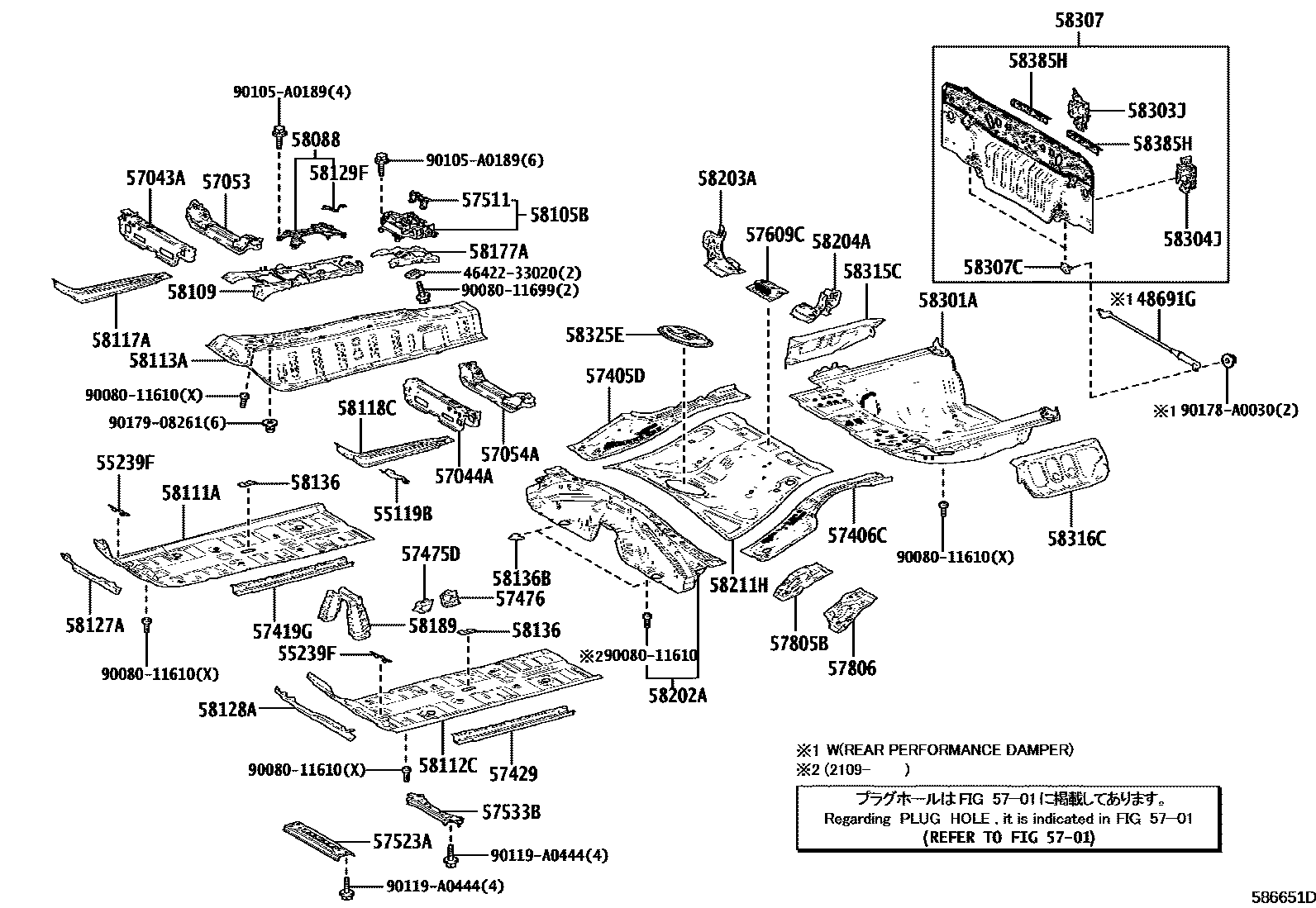

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR PANEL & LOWER BACK PANE0003 1FLOOR PANEL & LOWER BACK PANE0004 1FLOOR UNDER COVER 0005 1FLOOR UNDER COVER 0006 1FLOOR UNDER COVER

48691GDAMPER, SUSPENSION TOWER

55119BEXTENSION, DASH PANEL, LH

main55119-06010iAXZA15,AXZH1#,GSZ10201808-202109

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06050iAXZA15,AXZH1#,GSZ10201808-202109

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06060iAXZA15,AXZH1#,GSZ10201808-202109

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06060iAXZA15,AXZH1#,GSZ10201808-202109

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06040iAXZH1#,GSZ10201808-202109

main57053-06050iAXZA15202009-202109

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06090iAXZA15,AXZH1#,GSZ10201808-202109

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06010iAXZA15,AXZH1#,GSZ10201808-202109

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06010iAXZA15,AXZH1#,GSZ10201808-202303

main57406-06060iAXZA15,AXZH1#,GSZ10202303

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-07060iAXZA15,AXZH1#,GSZ10201808-202109

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-07060iAXZA15,AXZH1#,GSZ10201808-202109

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06060iAXZH1#,GSZ10201808-202109

main57475-06100iAXZA15202009-202109

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06050iAXZA15,AXZH1#,GSZ10201808-202109

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-06060iAXZA15,AXZH1#,GSZ10201808-202109

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06010iAXZH1#,GSZ10201808-202109

main57523-06050iAXZA15202009-202109

57533BBRACE, FRONT FLOOR, CENTER

main57533-06070iAXZH1#,GSZ10201808-202109

main57533-06090iAXZA15202009-202109

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-06040iAXZH1#,GSZ10201808-202109

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06030iGSZ10201808-202109

main57805-06040iAXZH1#201905-202109

main57805-06110iAXZA15202009-202109

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-06030iGSZ10201808-202109

main57806-06070iAXZA15202009-202109

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06010iAXZH10,GSZ10201808-201912

main58088-06060iAXZA15,AXZH1#,GSZ10202001-202109

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06060iAXZA15,AXZH1#,GSZ10201808-202109

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06010iAXZA15,AXZH1#,GSZ10201808-202109

58111APAN, FRONT FLOOR, RH

main58111-07050iAXZH10,GSZ10201808-202001

main58111-07051iAXZH1#,GSZ10202002-202109

main58111-07091iAXZA15202009-202109

58112CPAN, FRONT FLOOR, LH

main58112-07010iAXZH10,GSZ10201808-202001

main58112-07011iAXZA15,AXZH1#,GSZ10202002-202109

58113APANEL, FRONT FLOOR, CENTER

main58113-06090iAXZH1#,GSZ10202404

main58113-07010iAXZH1#,GSZ10201808-202404

main58113-07040iAXZA15202009-202109

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06010iAXZA15,AXZH1#,GSZ10201808-202109

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06010iAXZA15,AXZH1#,GSZ10201808-202109

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06070iAXZA15,AXZH1#,GSZ10202002-202109

main58127-33030iAXZH10,GSZ10201808-202001

58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06070iAXZA15,AXZH1#,GSZ10202002-202107

main58128-06071iAXZA15,AXZH1#,GSZ10202108-202109

main58128-33010iAXZH10,GSZ10201808-202001

58129FCLAMP, SHIFT & SELECT CABLE

main58129-06010iAXZA15,AXZH1#,GSZ10201808-202109

58136COVER, FRONT FLOOR HOLE

main58136-06050iAXZA15,AXZH1#,GSZ10201808-202109

58136BCOVER, CENTER FLOOR HOLE

main58136-06070iAXZA15,AXZH1#,GSZ10201808-202109

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-06010iAXZH1#,GSZ10201808-202404

main58177-06050iAXZA15202009-202109

main58177-06080iAXZH1#,GSZ10202404

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06140iAXZH1#,GSZ10201808-202109

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06060iAXZH1#201905-202109

main58202-06100iGSZ10201808-202109

main58202-06140iAXZA15202009-202109

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-06020iAXZH1#,GSZ10201808-202109

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-06050iAXZH1#,GSZ10201808-202109

58211HPAN, CENTER FLOOR

main58211-06230iGSZ10201808-201901

main58211-06231iGSZ10201901-202109

main58211-06250iAXZH1#201905-202109

main58211-06330iAXZA15202009-202109

58301APANEL SUB-ASSY, REAR FLOOR

main58301-06904iGSZ10201808-202303

main58301-06905iAXZH1#201905-202303

main58301-06907iAXZA15202009-202303

main58301-06909iGSZ10202303

main58301-06910iAXZH1#202303

main58301-06911iAXZA15202303

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-06080iAXZA15,AXZH1#,GSZ10201808-202109

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-06090iAXZA15,AXZH1#,GSZ10201808-202109

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06270iAXZH10,GSZ10201808-202008

main58307-06271iAXZA15,AXZH1#,GSZ10202009-202109

58307CRETAINER, LOWER BACK TRIM

main58377-06010iAXZA15,AXZH1#,GSZ10201808-202109

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-06020iAXZA15,GSZ10201808-202109

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06040iAXZA15,AXZH1#,GSZ10201808-202109

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06080iGSZ10201808-202109

main58325-06090iAXZH1#201905-202109

main58325-06100iAXZA15202009-202109

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-06150iAXZA15,AXZH1#,GSZ10201808-202109

4642233020CAP, PARKING BRAKE CABLE, CASING

main46422-33020

9008011610

main90080-11610

9008011699

main90080-11699

90105A0189

main90105-A0189

90119A0444

main90119-A0444

90178A0030

main90178-A0030

9017908261

main90179-08261

55 parts on this diagram · 6 diagrams in section
