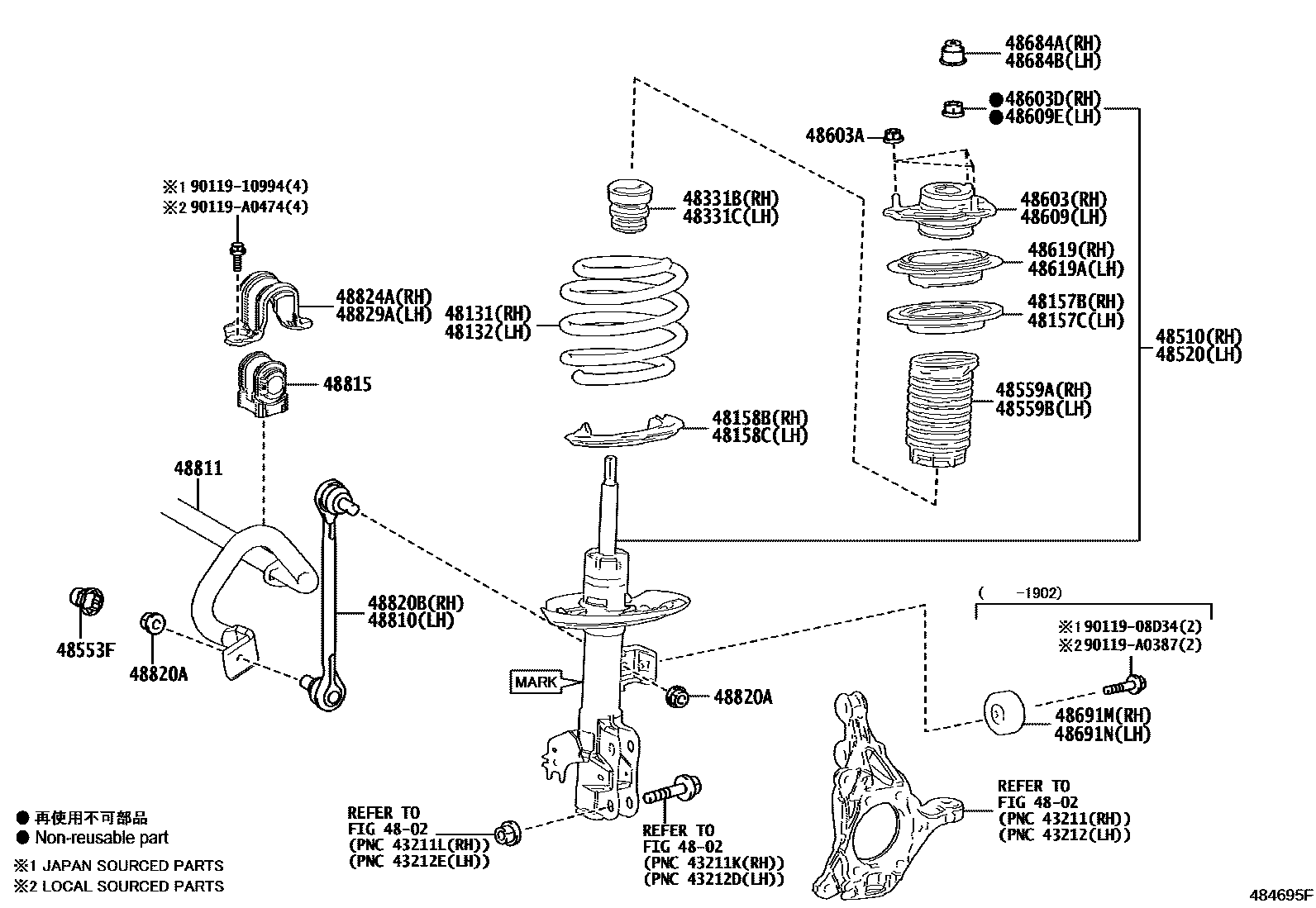

FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-33840
MARK 48510-33870
MARK 48510-06710
MARK 48510-06D10
MARK 48510-33830,F SPORT&AVS-WITH
MARK 48510-33770,F SPORT
MARK 48510-06D30,F SPORT
MARK 48510-06D70,MEXICO SPEC
MARK 48510-06E00,F SPORT
MARK 48510-06D60,MEXICO SPEC
MARK 48510-06D40,F SPORT
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-33810
MARK 48520-33830
MARK 48520-06D00
MARK 48520-06D10
MARK 48520-33790,F SPORT&AVS-WITH
MARK 48520-33A50,F SPORT&AVS-WITH
MARK 48520-06D30,F SPORT
MARK 48520-06D70,MEXICO SPEC
MARK 48520-06E00,F SPORT
MARK 48520-06D60,MEXICO SPEC
MARK 48520-06D40,F SPORT
48553FCAP
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
F SPORT SPECIAL&AVS-WITH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
F SPORT SPECIAL&AVS-WITH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48691MDAMPER, FRONT SUSPENSION, RH
48691NDAMPER, FRONT SUSPENSION, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
F SPORT
F SPORT
48815BUSH, FRONT STABILIZER BAR, NO.1
F SPORT SPECIAL
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908D34
main90119-08D34
9011910994
main90119-10994
90119A0387
main90119-A0387
90119A0474
main90119-A0474
36 parts on this diagram · 1 diagram in section
