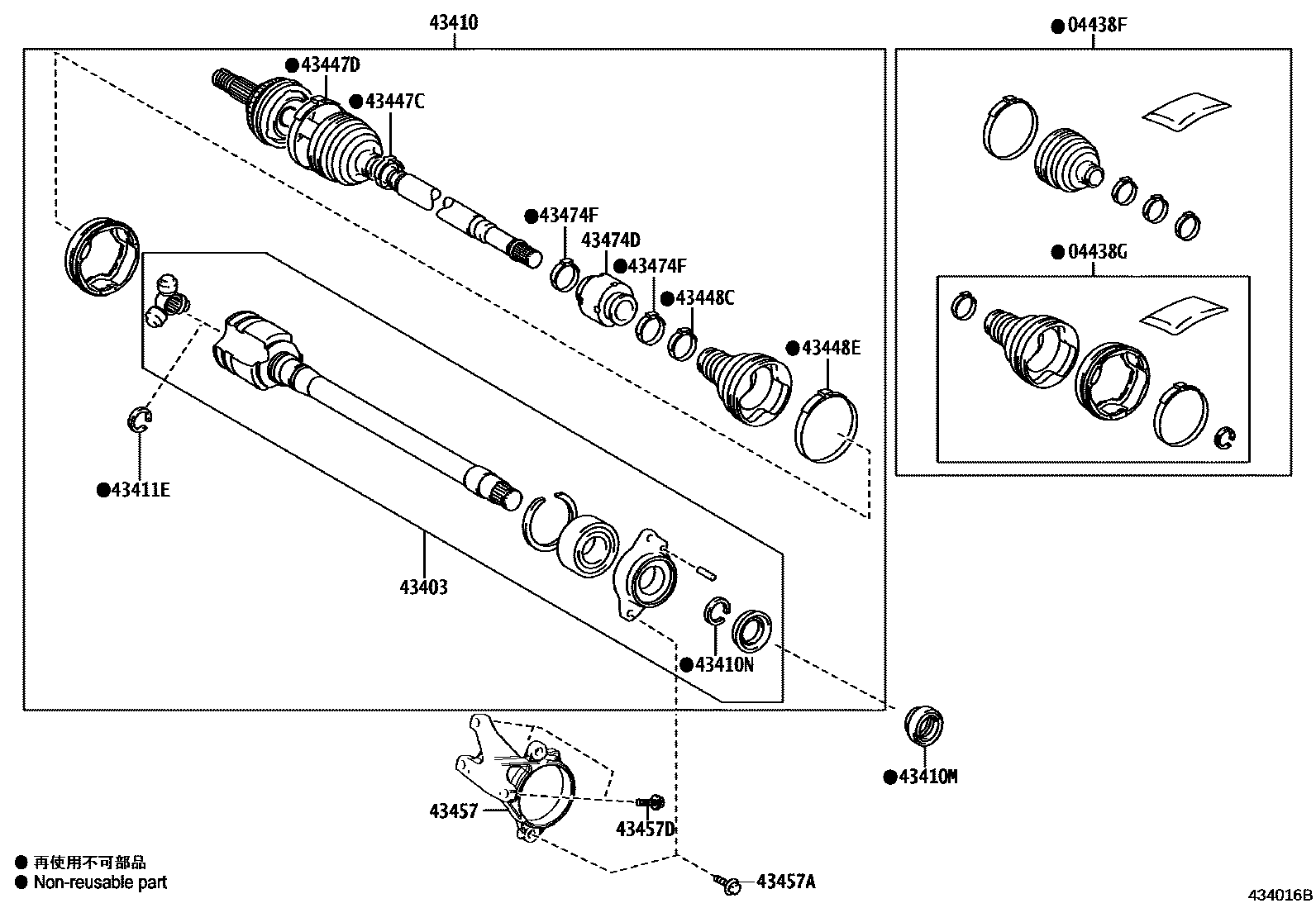

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1LH 0005 1LH 0006 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-08180iAXZH10201905-201908

main04427-08190iGSZ10201808-201908

main04427-08240iGSZ10202109

main04427-08260iAXZH1#201909-202109

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08070iAXZH10,GSZ10201808-201908

main04437-08110iAXZH1#,GSZ10202109

main04437-0R066iAXZA15202009-202109

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-06040iGSZ10202109

main43403-07010iAXZH1#202109

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06C50iAXZA15202109

main43410-07080iAXZH10201905-201908

main43410-07081iAXZH1#201909-202109

main43410-07090iGSZ10201808-201908

main43410-07091iGSZ10201909-202109

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iGSZ10201808-202109

main90311-40049iAXZH1#202109

main90316-34001iAXZA15202109

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0R050iAXZA15202109

main90080-52013iAXZH1#,GSZ10202109

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-06450iAXZH1#,GSZ10201909-202109

main43425-08040iAXZH10,GSZ10201808-201909

main43425-0R030iAXZA15202009-202109

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iAXZH1#202109

main42345-06A20iGSZ10201808-202109

main42345-0R040iAXZA15202009-202109

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iAXZH1#201905-202109

main42345-06A30iGSZ10202109

main42345-0R030iAXZA15202009-202109

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08080iAXZH1#,GSZ10202109

main42345-0R080iAXZA15202009-202109

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06A10iAXZA15202109

main42345-08110iAXZH1#,GSZ10201808-202109

43457BRACKET, DRIVE SHAFT BEARING

main43457-06150iAXZH1#201905-202109

main43457-06210iGSZ10202109

main43457-42190iAXZA15202009-202109

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-A0259×2iAXZH1#,GSZ10201808-202109

*10-1.25PX22-19.5

main90119-10461iAXZA15202009-202109

*10-1.25PX19.8-8.3

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iAXZA15,AXZH1#,GSZ10201808-202109

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06270iAXZA15202009-202109

main43474-06490iAXZA15202302

main43474-06540iAXZH1#,GSZ10201808-202109

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06790×2iAXZH1#,GSZ10201808-202109

main42345-07090×2iAXZA15202009-202109

16 parts on this diagram · 6 diagrams in section
