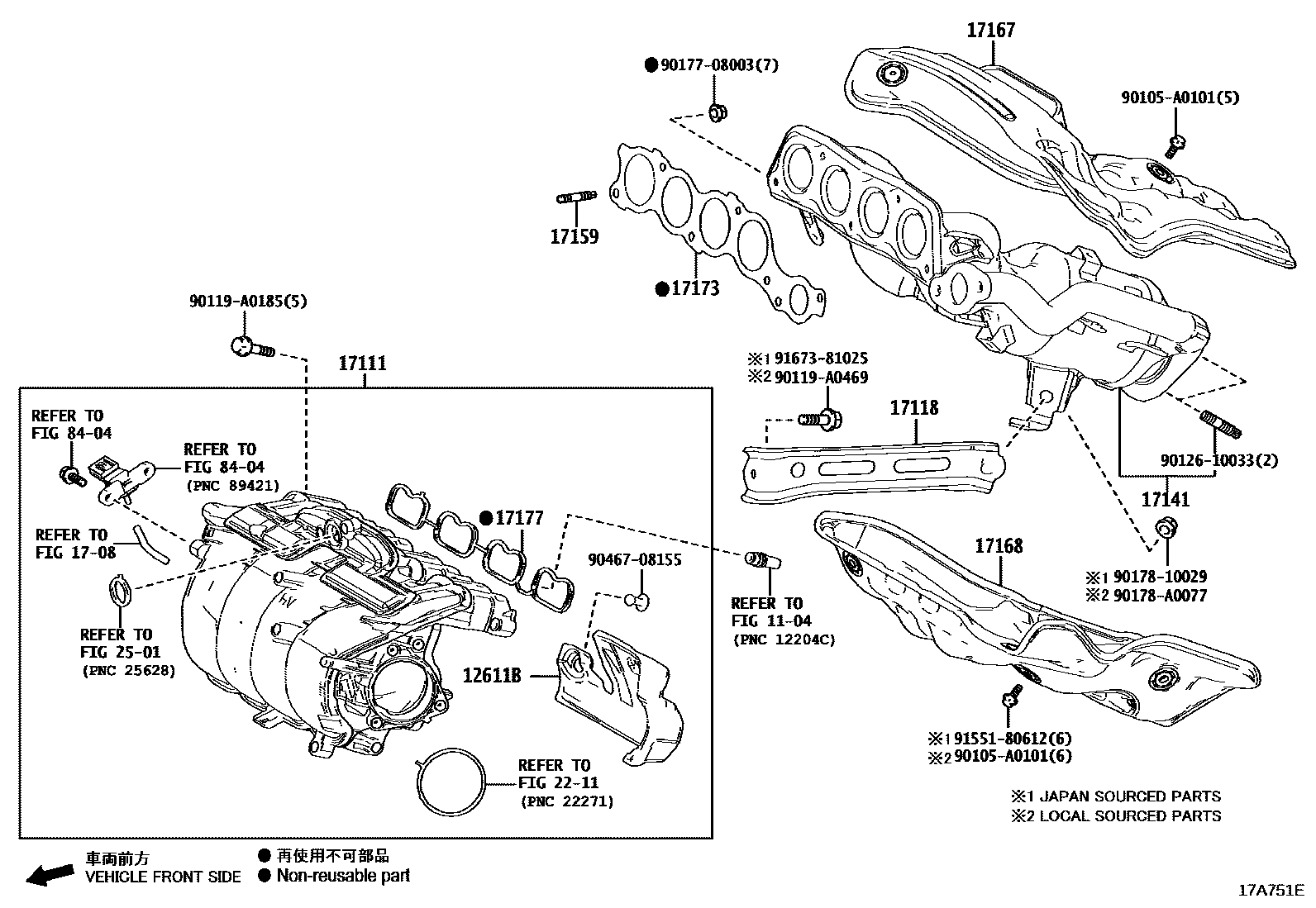

MANIFOLD
1104
12611BCOVER, ENGINE, NO.1
(J)
(L)
1708
17111MANIFOLD, INTAKE
(L)
(J)
MARK=17101-25050
MARK=17101-F0050
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
(J)
(L)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
(J)
(L)
(L)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
(L)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211
2501
8404
90105A0101
main90105-A0101
90119A0185
main90119-A0185
90119A0469
main90119-A0469
9012610033
main90126-10033
9017708003
main90177-08003
9017810029
main90178-10029
90178A0077
main90178-A0077
9046708155
main90467-08155
9155180612
main91551-80612
9167381025
main91673-81025
24 parts on this diagram · 3 diagrams in section
