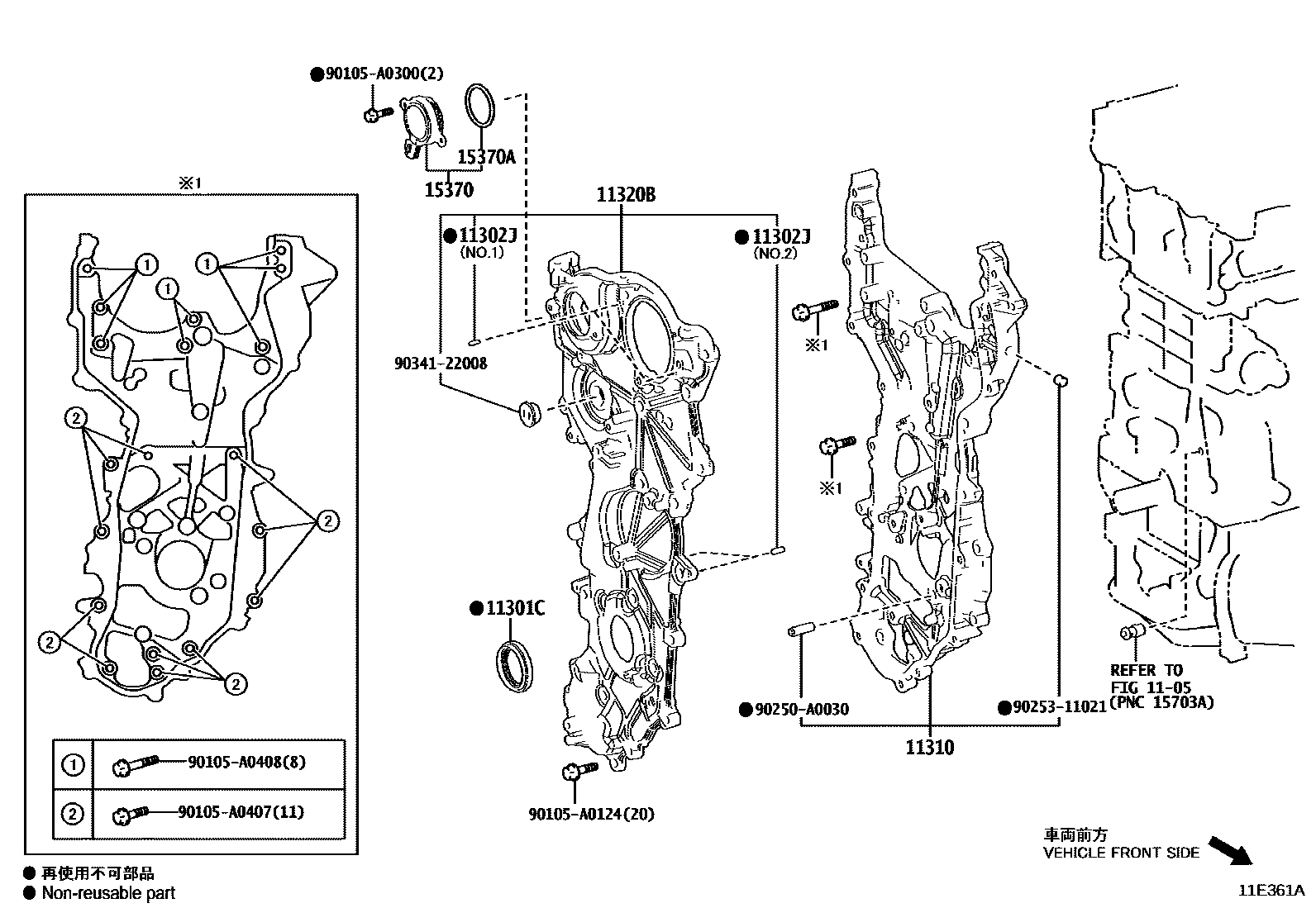

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
(J)
(L)
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
11310COVER ASSY, TIMING CHAIN
(L)
(J)
11320BCOVER ASSY, TIMING CHAIN, NO.2
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90105A0124
main90105-A0124
90105A0300
main90105-A0300
90105A0407
main90105-A0407
90105A0408
main90105-A0408
90250A0030
main90250-A0030
9025311021
main90253-11021
9034122008
main90341-22008
14 parts on this diagram · 4 diagrams in section
