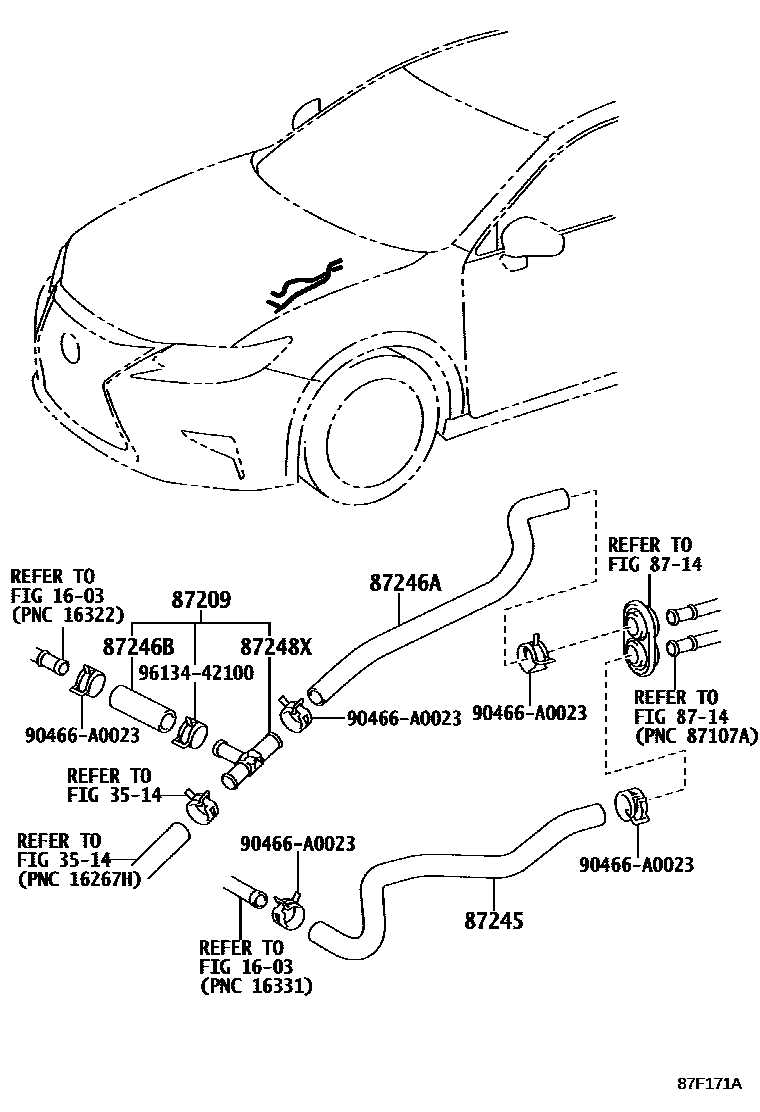

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87209-06030iGSV60201510-201807

87245HOSE, HEATER WATER, INLET

main87245-06800iGSV60201510

87246AHOSE, HEATER WATER, OUTLET A

main87245-06810iGSV60201510

87246BHOSE, HEATER WATER, OUTLET B

main87245-06790iGSV60201510

87248XPIPE, HEATER WATER

main87248-06040iGSV60201510

90466A0023

main90466-A0023

9613442100

main96134-42100

10 parts on this diagram · 1 diagram in section
