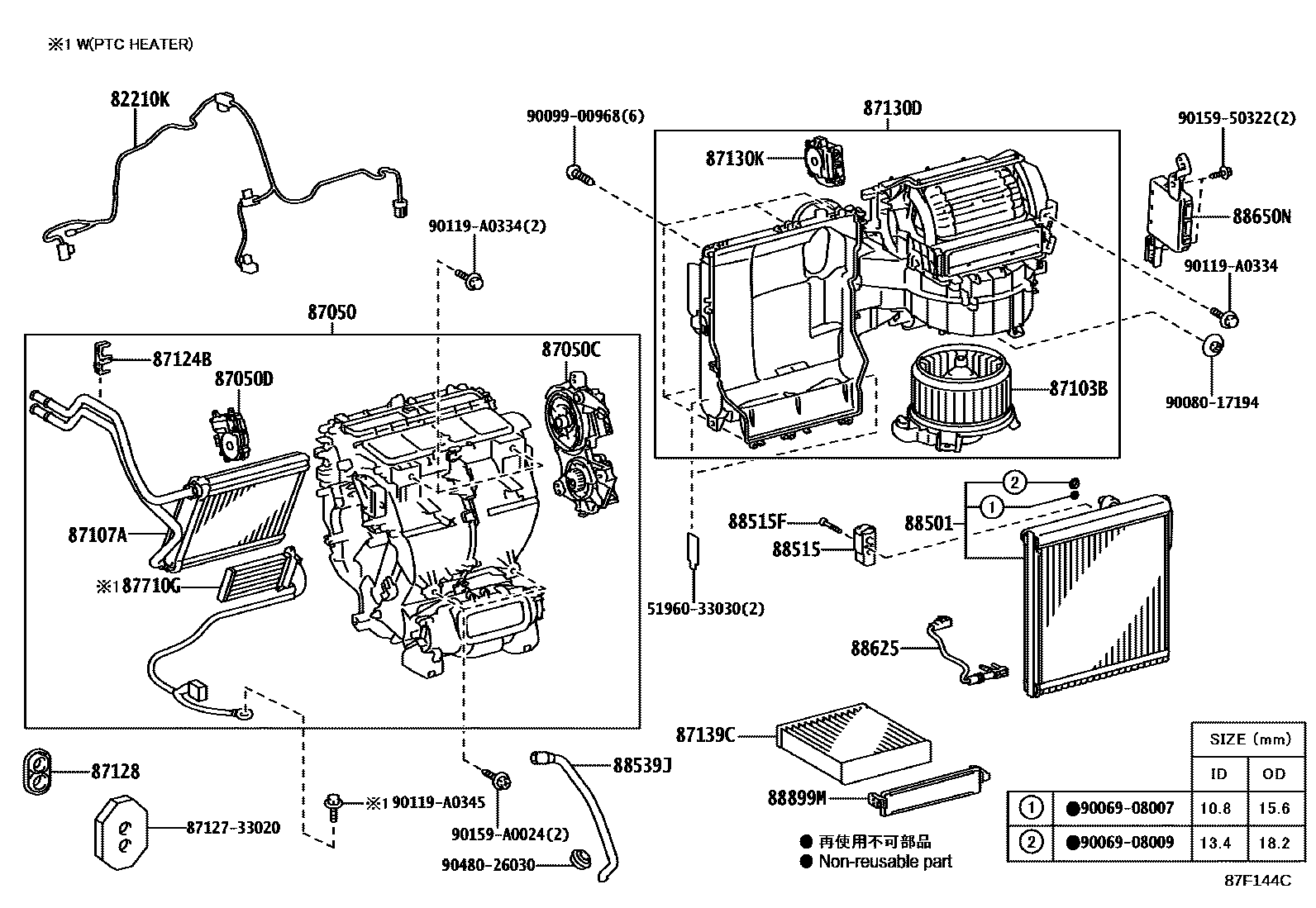

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06121iGSV60201510-201807

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06601supersedes 87050-06581iGSV60201510

STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06300iGSV60201510

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-07120iGSV60201510

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-06120iGSV60201510

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07030iGSV60201510

87124BCLAMP, HEATER

main87124-07030iGSV60201510

87128GROMMET, HEATER

main90480-A0004iGSV60201510

87130DBLOWER ASSY

main87130-06400iGSV60201510

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-07140iGSV60201510

87139CFILTER, CLEAN AIR

main87139-07020iGSV60201510

POLLEN FILTER

main87139-50100iGSV60201510

POLLEN DEODORANT,OE PART

87710GQUICK HEATER ASSY

main87710-06010iGSV60201510

STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06230iGSV60201510

88515VALVE, COOLER EXPANSION

main88515-06130iGSV60201510

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iGSV60201510

88539JHOSE, DRAIN COOLER

main88539-06121iGSV60201510

88625THERMISTOR, COOLER, NO.1

main88620-06020iGSV60201510

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0W030supersedes 88650-0W020iGSV60201510

SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)

88899MPLATE, COVER(FOR AIR FILTER)

main88899-07010iGSV60201510

5196033030HOOK ASSY, FRONT

main51960-33030

8712733020PACKING, HEATER AIR DAMPER

main87127-33020

9006908007

main90069-08007

9006908009

main90069-08009

9008017194

main90080-17194

9009900968

main90099-00968

90119A0334

main90119-A0334

90119A0345

main90119-A0345

9015950322

main90159-50322

90159A0024

main90159-A0024

9048026030

main90480-26030

30 parts on this diagram · 1 diagram in section
