Toyota LEXUS ES350 (NAP)28C — MIRROR

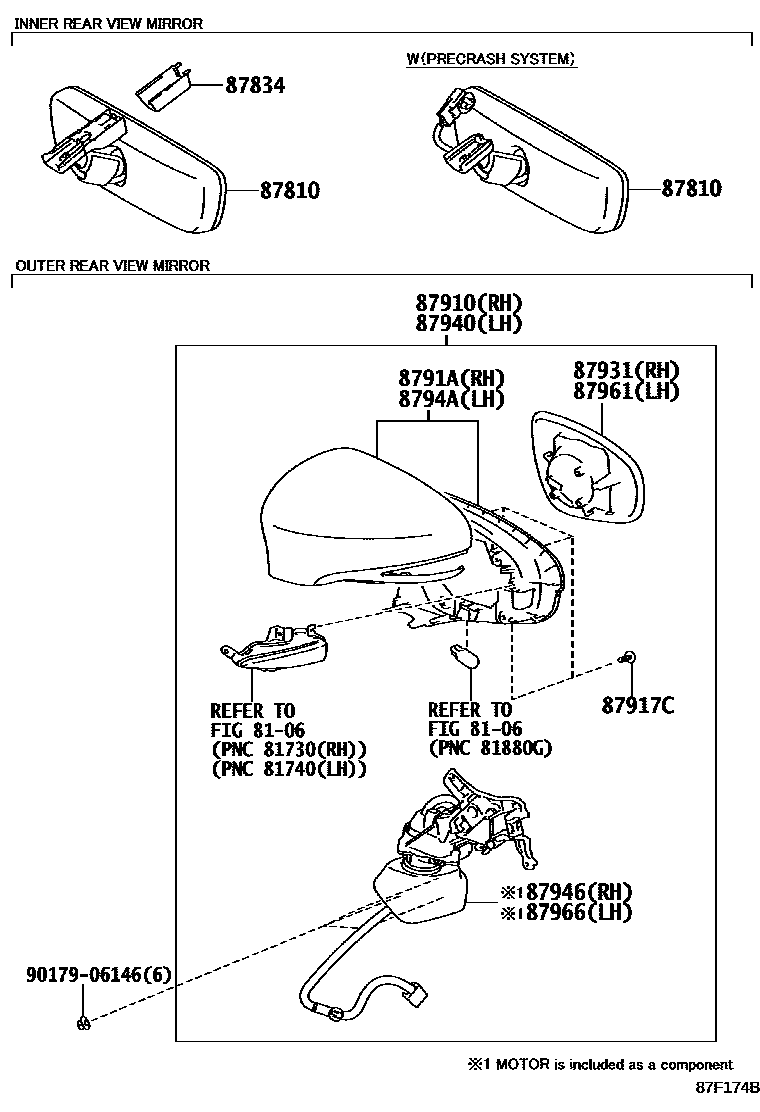

Parts diagram

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

87910MIRROR ASSY, OUTER REAR VIEW, RH

87917CSCREW, OUTER MIRROR

8791ACOVER, OUTER MIRROR, RH NO.2

87931OUTER MIRROR, RH

87940MIRROR ASSY, OUTER REAR VIEW, LH

87946RETRACTOR, OUTER MIRROR, RH

8794ACOVER, OUTER MIRROR, LH NO.2

87961MIRROR OUTER, LH

87966RETRACTOR, OUTER MIRROR, LH

9017906146

13 parts on this diagram · 1 diagram in section

MIRROR for Toyota LEXUS ES350 (NAP)28C

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota LEXUS ES350 (NAP)28C. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, SCREW, OUTER MIRROR.
