Toyota 671440 — RADIO RECEIVER & AMPLIFIER & CONDENSER

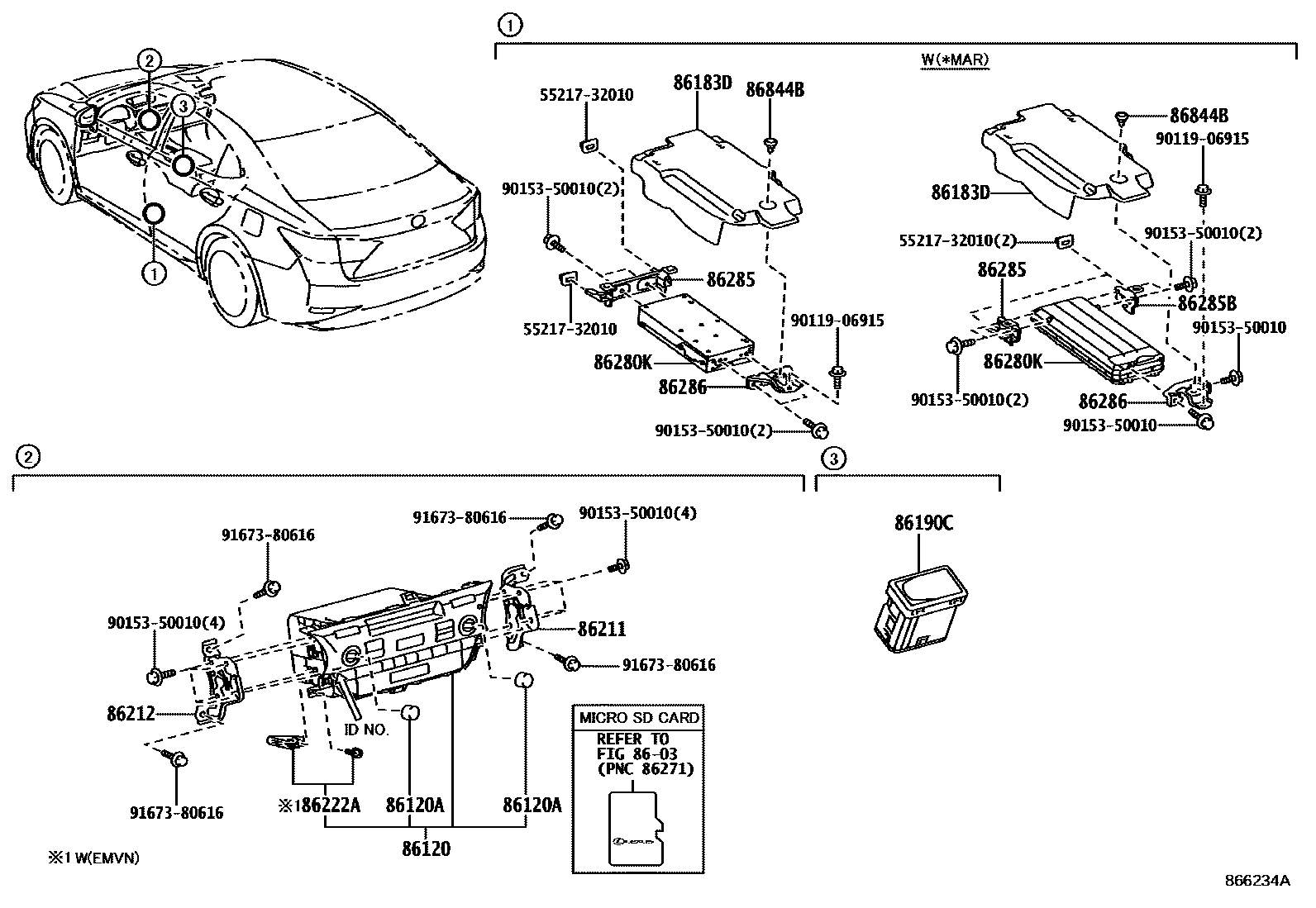

Parts diagram

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

86120AKNOB, RADIO RECEIVER SWITCH

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

86222ACLIP, RADIO RECEIVER BRACKET NO.1

86280KAMPLIFIER ASSY, STEREO COMPONENT

86285BRACKET, AMPLIFIER, NO.1

86285BBRACKET, AMPLIFIER, NO.1

86286BRACKET, AMPLIFIER, NO.2

86844BRETAINER, AUDIO AMPLIFIER COVER

5521732010STRIP, DASH PANEL SILENCER FINISH

9011906915

9015350010

9167380616

17 parts on this diagram · 2 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 671440

This section contains 19 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 671440. Key components include: CONDENSER, RADIO SETTING, NAVIGATION & FRONT MONITOR DISPLAY, RECEIVER ASSY, RADIO, KNOB, RADIO RECEIVER SWITCH.
