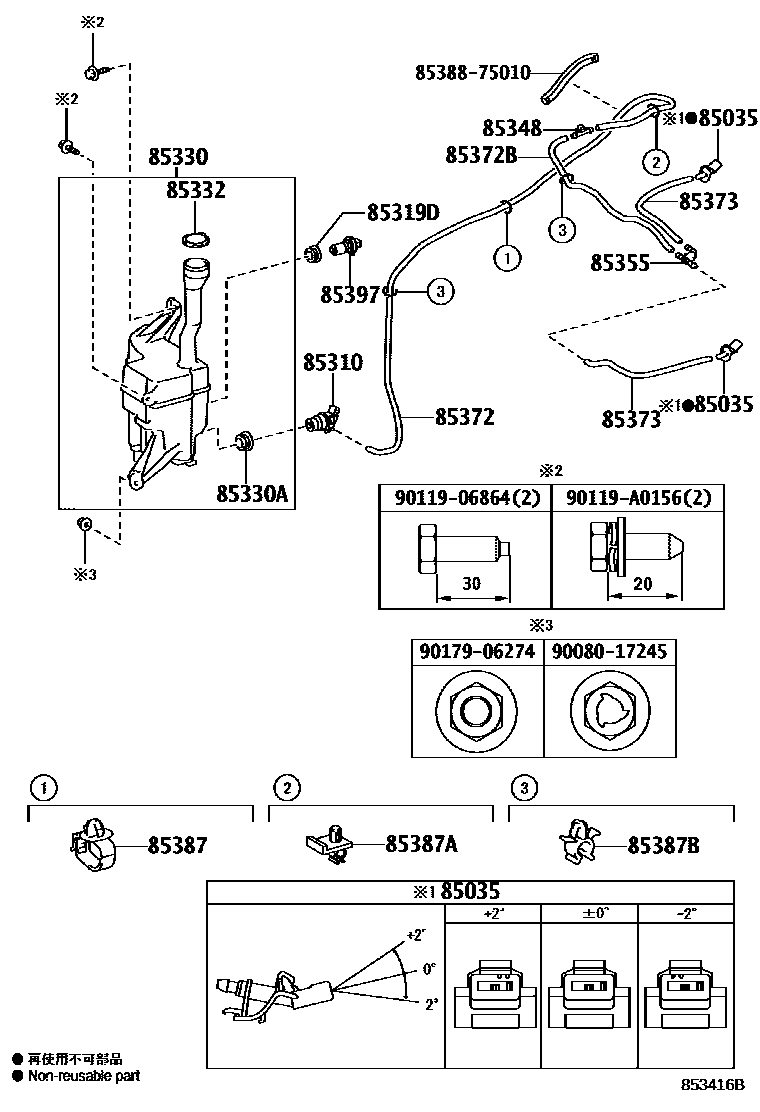

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2iGSV60201510

ANGLE 0

main85381-12340×2iGSV60201510

ANGLE -2

main85381-12350×2iGSV60201510

ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-06070iGSV60201510

85319DPACKING, FRONT WASHER

main85319-AA020iGSV60201510

85330JAR ASSY, WINDSHIELD WASHER

main85315-06220iGSV60201510

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iGSV60201510

85332CAP, WINDSHIELD WASHER JAR

main85386-0C010iGSV60201510

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050iGSV60201510

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGSV60201510

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33275iGSV60201510

L=1670

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33049iGSV60201510

L=720

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-45006×2iGSV60201510

L=360

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E340iGSV60201510

85387ACLAMP, WASHER, NO.2

main85371-06010iGSV60201510

85387BCLAMP, WASHER, NO.3

main90469-07011×2iGSV60201510

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040iGSV60201510

8538875010CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-75010

9008017245

main90080-17245

9011906864

main90119-06864

90119A0156

main90119-A0156

9017906274

main90179-06274

20 parts on this diagram · 1 diagram in section
