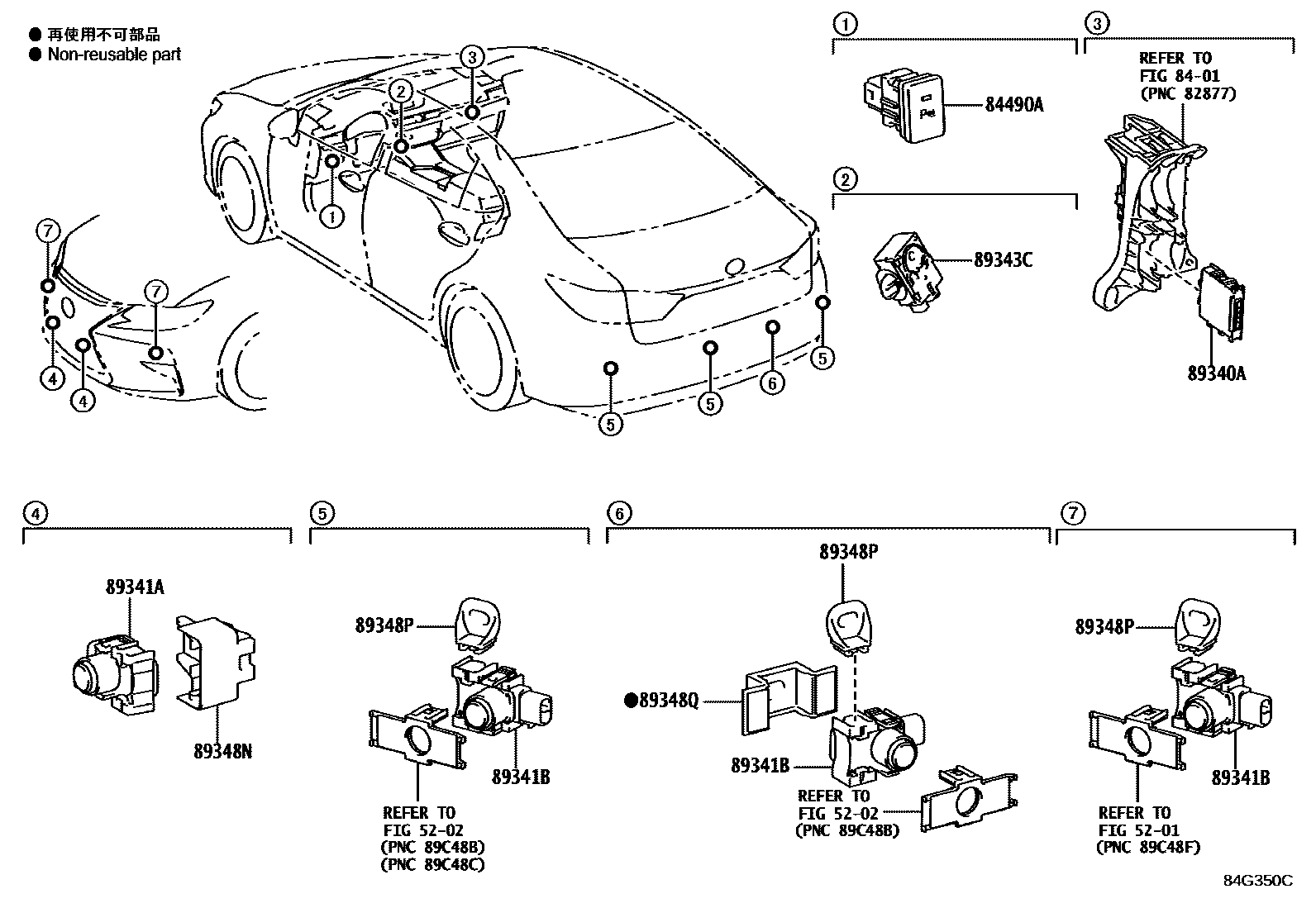

Toyota LEXUS ES350 (NAP)28C — CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341ASENSOR, ULTRASONIC, NO.1

89341BSENSOR, ULTRASONIC, NO.2

89343CBUZZER, CLEARANCE WARNING, NO.1

89348NCLIP, ULTRASONIC SENSOR, NO.1

89348PCLIP, ULTRASONIC SENSOR, NO.2

89348QCLIP, ULTRASONIC SENSOR, NO.3

11 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota LEXUS ES350 (NAP)28C

This section contains 11 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota LEXUS ES350 (NAP)28C. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, SWITCH & RELAY & COMPUTER, SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR, COMPUTER ASSY, CLEARANCE WARNING.
