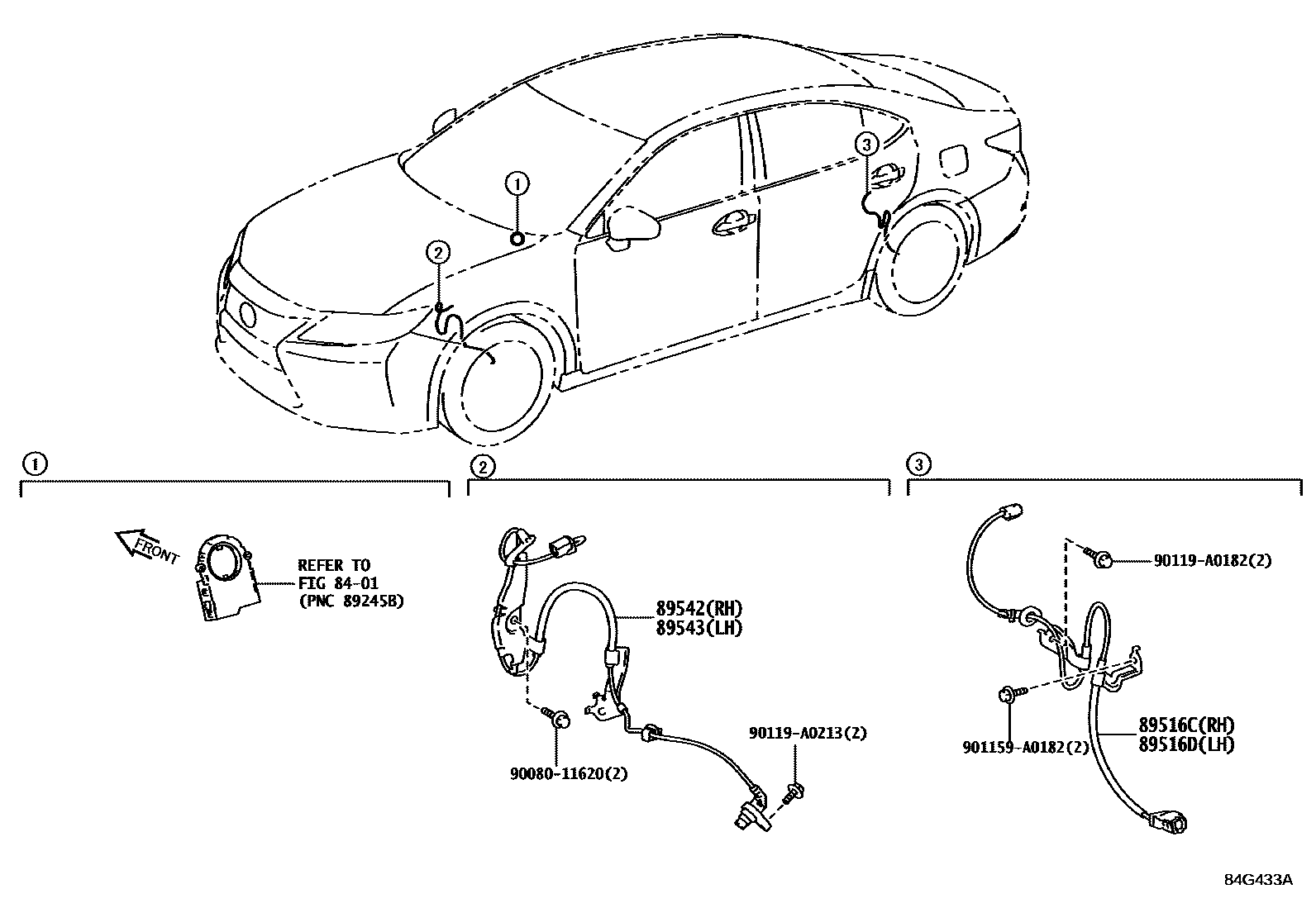

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-06150iGSV60201510

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-06160iGSV60201510

89542SENSOR, SPEED, FRONT RH

main89542-06120iGSV60201510

89543SENSOR, SPEED, FRONT LH

main89543-06120iGSV60201510

9008011620

main90080-11620

90119A0182

main90119-A0182

90119A0213

main90119-A0213

8 parts on this diagram · 1 diagram in section
