OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

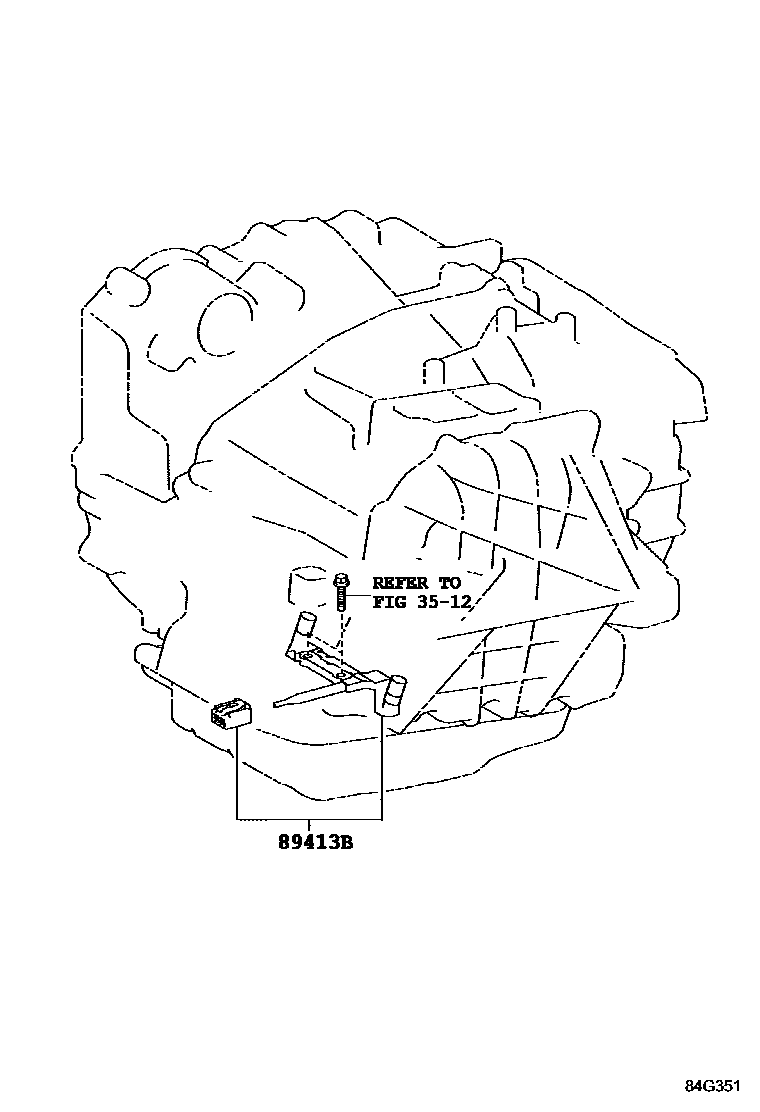

Parts diagram

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-08030i201510-201709

main89413-33030i201709-201807

*324

2 parts on this diagram · 1 diagram in section
