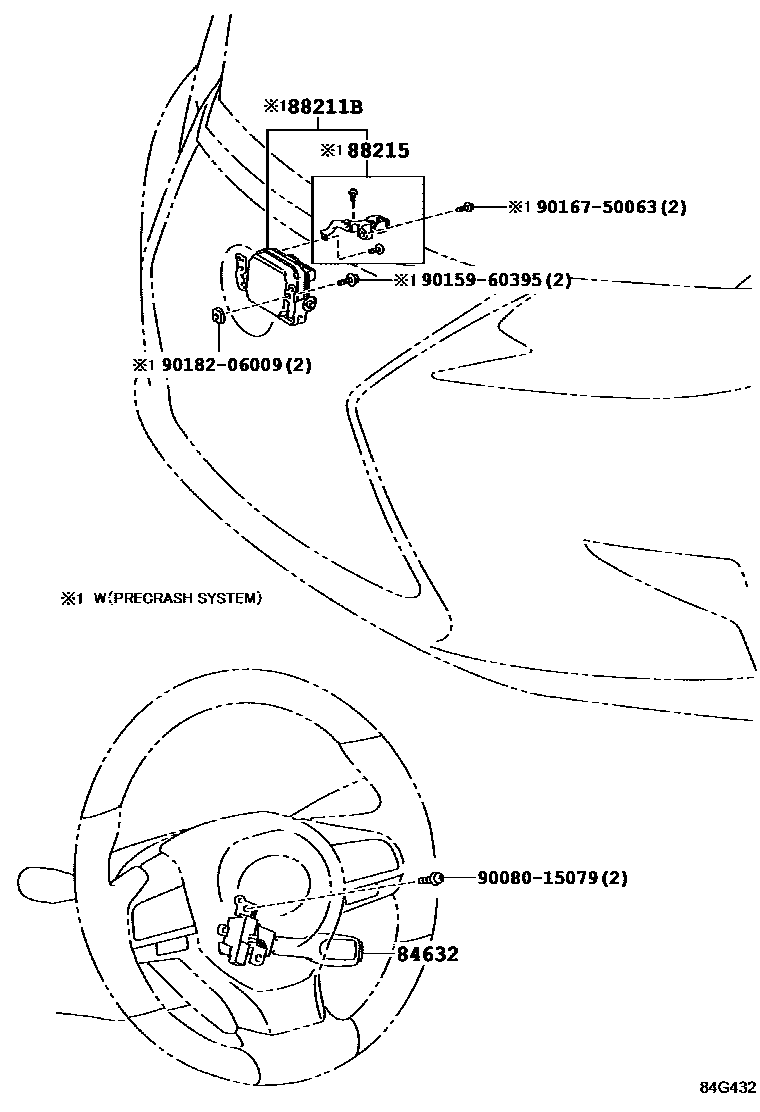

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-0E040supersedes 84632-0E010iGSV60201510

PRE-COLLISION SYSTEM-WITH

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-06020iGSV60201510-201807

PRE-COLLISION SYSTEM-WITH

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-48010iGSV60201510

PRE-COLLISION SYSTEM-WITH

9008015079

main90080-15079

9015960395

main90159-60395

9016750063

main90167-50063

9018206009

main90182-06009

7 parts on this diagram · 1 diagram in section
