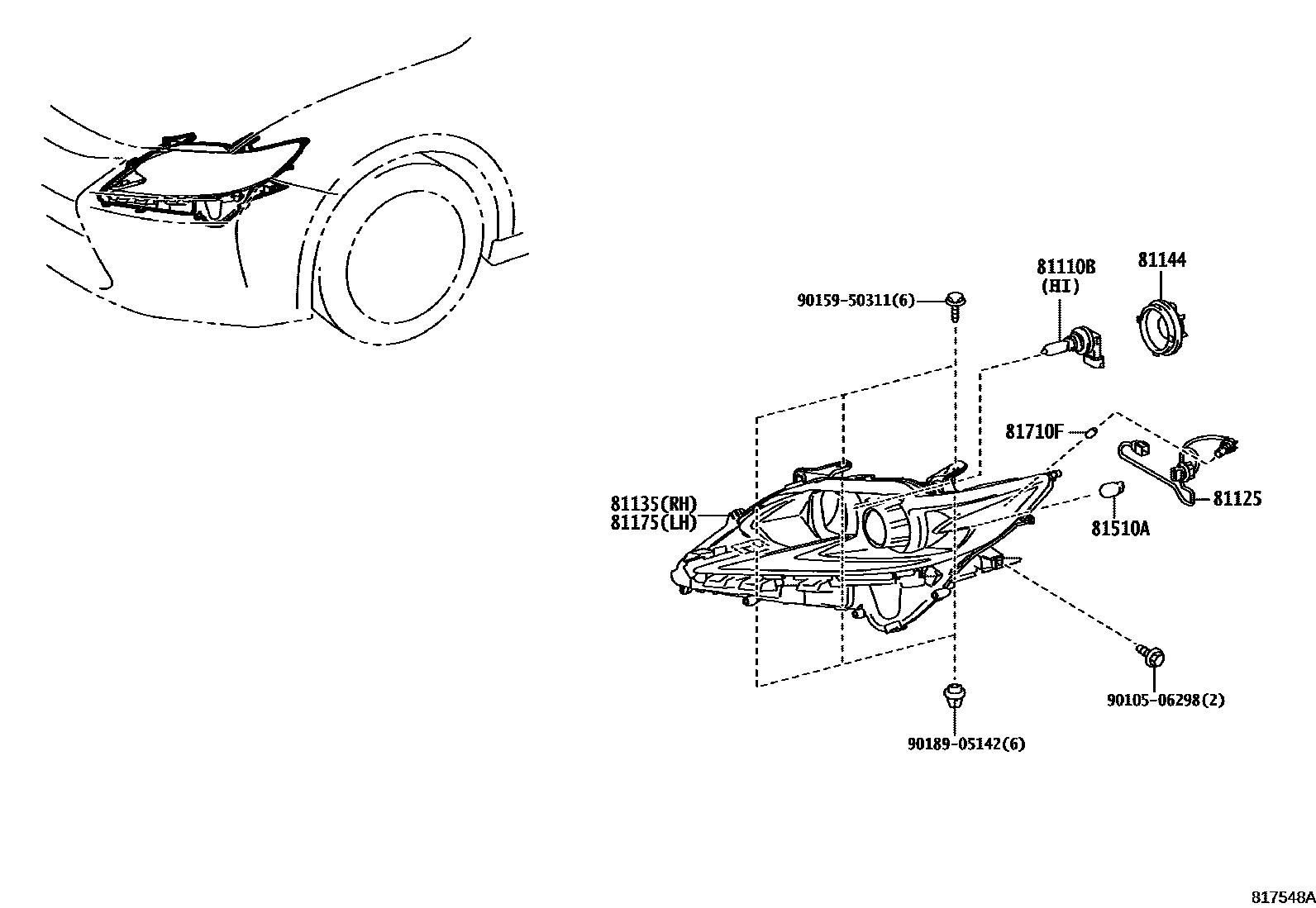

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13084×2i201510

12V 65W,HALOGEN

81125CORD, HEADLAMP

main81125-33A50×2i201510

81135UNIT ASSY, HEADLAMP, RH

main81140-33A60i201510-201709

HEADLAMP-HI(LED); HEADLAMP-HI(LED) & WITH(*AHB)

HEADLAMP-HI(LED); HEADLAMP-HI(LED) & WITH(*AHB)

main81140-33C70i201510-201709

HEADLAMP-HI(LED) & WITH(AFS & *AHB); HEADLAMP-HI(LED) & WITH(AFS)

HEADLAMP-HI(LED) & WITH(AFS & *AHB); HEADLAMP-HI(LED) & WITH(AFS)

81144COVER, HEADLAMP, NO.1

main81135-3A150×2i201510

81175UNIT ASSY, HEADLAMP, LH

main81070-33A60i201510-201709

HEADLAMP-HI(LED); HEADLAMP-HI(LED) & WITH(*AHB)

HEADLAMP-HI(LED); HEADLAMP-HI(LED) & WITH(*AHB)

main81070-33A70i201510-201709

HEADLAMP-HI(LED) & WITH(AFS & *AHB); HEADLAMP-HI(LED) & WITH(AFS)

HEADLAMP-HI(LED) & WITH(AFS & *AHB); HEADLAMP-HI(LED) & WITH(AFS)

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2i201510

12V 28/8W

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11069×2i201510

9010506298

9015950311

9018905142

10 parts on this diagram · 2 diagrams in section
