FRONT SEAT & SEAT TRACK

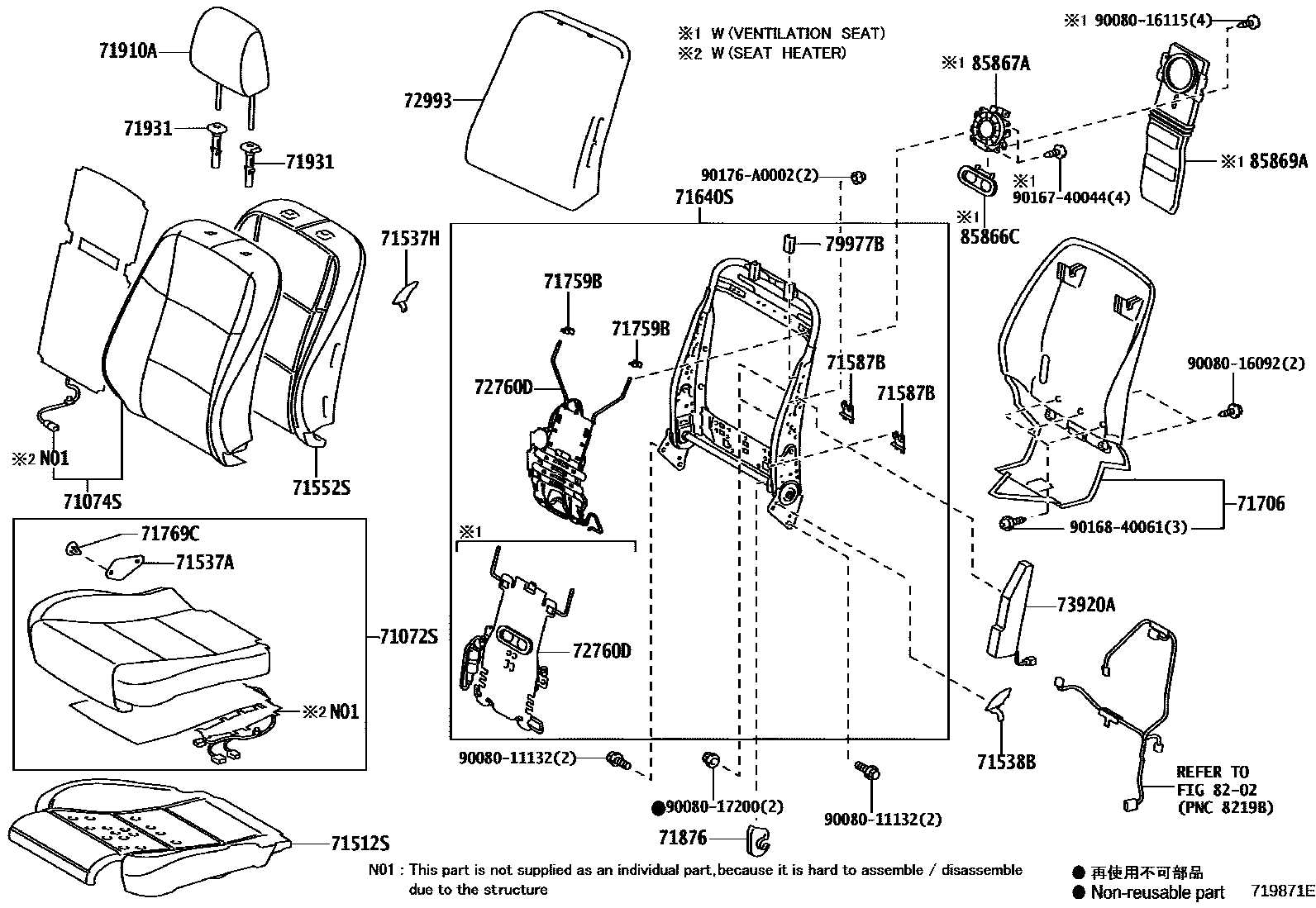

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-06N10-A1supersedes 71072-06N00-A1i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71072-06N10-B1supersedes 71072-06N00-B1i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71072-06N10-C1supersedes 71072-06N00-C1i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71072-06N10-E0i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; CANADA SPEC&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#
main71072-06N10-F1supersedes 71072-06N00-F1i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#
main71072-06N20-A0i201510-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71072-06N20-B1i201709-201807
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71072-06N20-C1i201510-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71072-06N20-F1i201709-201807
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWM,TRIM5#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWM,TRIM5#
main71072-06N40-A0i201709-201807
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71072-06N40-B1i201709-201807
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71072-06N40-C1i201510-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71072-06N40-F0i201510-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-06R40-A1supersedes 71074-06R30-A1i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71074-06R40-B1supersedes 71074-06R30-B1i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71074-06R40-C1supersedes 71074-06R30-C1i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71074-06R40-E0i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; CANADA SPEC&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM4#
main71074-06R40-F1supersedes 71074-06R30-F1i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#
main71074-06R50-A0i201510-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71074-06R50-B1i201709-201807
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71074-06R50-C1i201510-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71074-06R50-F2i201510-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWM,TRIM5#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWM,TRIM5#
main71074-06R60-A0i201510-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71074-06R60-B1i201510-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71074-06R60-C1i201709-201807
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71074-06R60-F1i201709-201807
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ,TRIM5#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-06680i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
main71512-06690i201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
71537APROTECTOR, FRONT SEAT CUSHION
main71537-06190×2i201510
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-33020-C0i201510-201807
BLACK,TRIM1#,2#
main71537-33020-E1i201510-201807
NOBLE BROWN,TRIM0#,4#,5#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-33010-C0i201510-201807
BLACK,TRIM1#,2#
main71538-33010-E1i201510-201807
NOBLE BROWN,TRIM0#,4#,5#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-06600i201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-52030×4i201510
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-33110supersedes 71640-33100i201510
CANADA SPEC&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
main71640-33130i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)
main71640-33140i201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-06240-C1i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM1#,2#; C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM1#,2#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM1#,2#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM1#,2#; CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM1#,2#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM1#,2#
main71705-06240-E0i201709-201807
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#; SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),NOBLE BROWN,TRIM0#,4#,5#
71759BHOOK, FRONT SEATBACK
main71759-47011×4i201510
71769CCLIP, FRONT SEAT CUSHION COVER
main71769-60010-C0×4i201510-201609
BLACK
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-06620i201510
71910AHEADREST ASSY, FRONT SEAT
main71910-33C20-E1×2i201703-201807
NOBLE BROWN,TRIM4#
main71910-33B20-A2×2supersedes 71910-33760-A2i201510-201609
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71910-33B20-B2×2supersedes 71910-33760-B9i201510-201609
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71910-33B20-C2×2supersedes 71910-33760-20i201510-201609
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71910-33B20-F2×2supersedes 71910-33760-F1i201510-201609
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#
main71910-33B30-A2×2supersedes 71910-33760-A2i201510-201609
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71910-33B30-B2×2supersedes 71910-33760-B9i201510-201609
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71910-33B30-C2×2supersedes 71910-33760-20i201510-201609
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71910-33B30-F1×2supersedes 71910-33760-F1i201510-201609
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#
main71910-33C30-A1×2supersedes 71910-33C20-A1i201609-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71910-33C30-B1×2supersedes 71910-33C20-B1i201609-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71910-33C30-C1×2supersedes 71910-33C20-C1i201609-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71910-33C30-F1×2supersedes 71910-33C20-F1i201609-201709
C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#; CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#
main71910-33C40-A1×2supersedes 71910-33C20-A1i201609-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),IVORY,TRIM0#
main71910-33C40-B1×2supersedes 71910-33C20-B1i201609-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),MOON STONE,TRIM1#
main71910-33C40-C1×2supersedes 71910-33C20-C1i201609-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),BLACK,TRIM2#
main71910-33C40-F1×2supersedes 71910-33C20-F1i201609-201709
CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#; D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP),TOPAZ BROWN,TRIM5#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A4×2i201510-201807
W(LOCK),IVORY,TRIM0#
main71930-47020-C0×2i201510-201710
W(LOCK),BLACK,TRIM2#
main71930-47020-C4×2i201710-201807
W(LOCK),BLACK,TRIM2#
main71930-47020-F0×2i201510-201807
W(LOCK),TOPAZ BROWN,TRIM5#
main71930-47020-L1×2i201709-201807
W(LOCK),NOBLE BROWN,TRIM4#
main71930-47020-P2×2i201510-201807
W(LOCK),MOON STONE,TRIM1#
main71931-47020-A4×2i201510-201807
W/O(LOCK),IVORY,TRIM0#
main71931-47020-C0×2i201510-201710
W/O(LOCK),BLACK,TRIM2#
main71931-47020-C4×2i201710-201807
W/O(LOCK),BLACK,TRIM2#
main71931-47020-F0×2i201510-201807
W/O(LOCK),TOPAZ BROWN,TRIM5#
main71931-47020-L1×2i201709-201807
W/O(LOCK),NOBLE BROWN,TRIM4#
main71931-47020-P2×2i201510-201807
W/O(LOCK),MOON STONE,TRIM1#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72706-33010i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
72993COVER, FRONT SEATBACK
main72991-06150×2i201510
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-06190i201510
79977BFELT, SEATBACK FRAME
main79977-33020×2i201510
8202WIRING & CLAMP
→ Go to FIG 82-02
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
main85866-06010i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
85866CDUCT, SEATBACK CLIMATE CONTROL, LH
main8586A-06010i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-06010i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-06010i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
85869COVER, SEATBACK CLIMATE CONTROL, RH
main85869-06010i201510-201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATHEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
85869ACOVER, SEATBACK CLIMATE CONTROL, LH
main85869-06010i201709
B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&B PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&C PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEATMEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); CANADA SPEC&SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); D PACKAGE&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER & PASSENGER SEAT)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP); SPECIAL EDITION&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC,WITH(MEMORY)&SEAT MEMORY-WITH(DRIVER SIDE ONLY)&SEAT HEATER-WITH(*DRP) & VENTILATION SEAT(*DRP)
9008011132
main90080-11132
9008016092
main90080-16092
9008016115
main90080-16115
9008017200
main90080-17200
9016740044
main90167-40044
9016840061
main90168-40061
90176A0002
main90176-A0002

33 parts on this diagram · 4 diagrams in section
