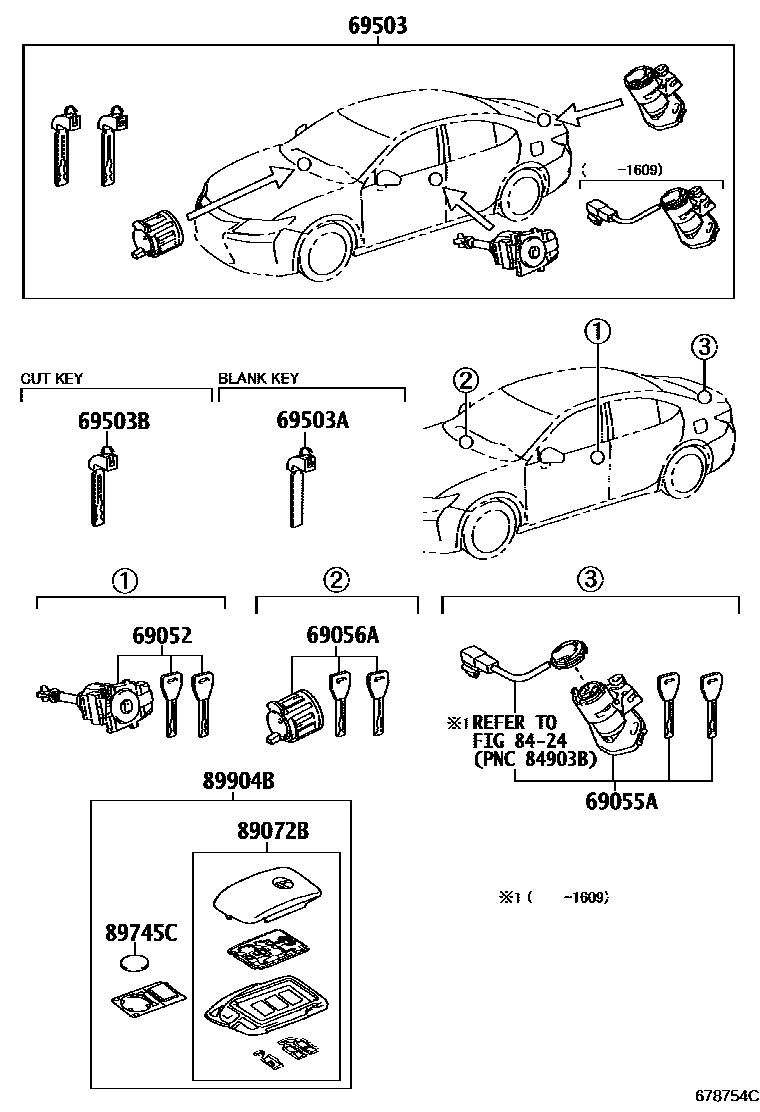

Toyota LEXUS ES350 (NAP)28C — LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
69503BKEY, CUT
8424ANTI-THEFT DEVICE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89745CBATTERY, TRANSMITTER
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
10 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota LEXUS ES350 (NAP)28C
This section contains 10 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota LEXUS ES350 (NAP)28C. Key components include: CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER SET, LOCK, KEY, BLANK.
