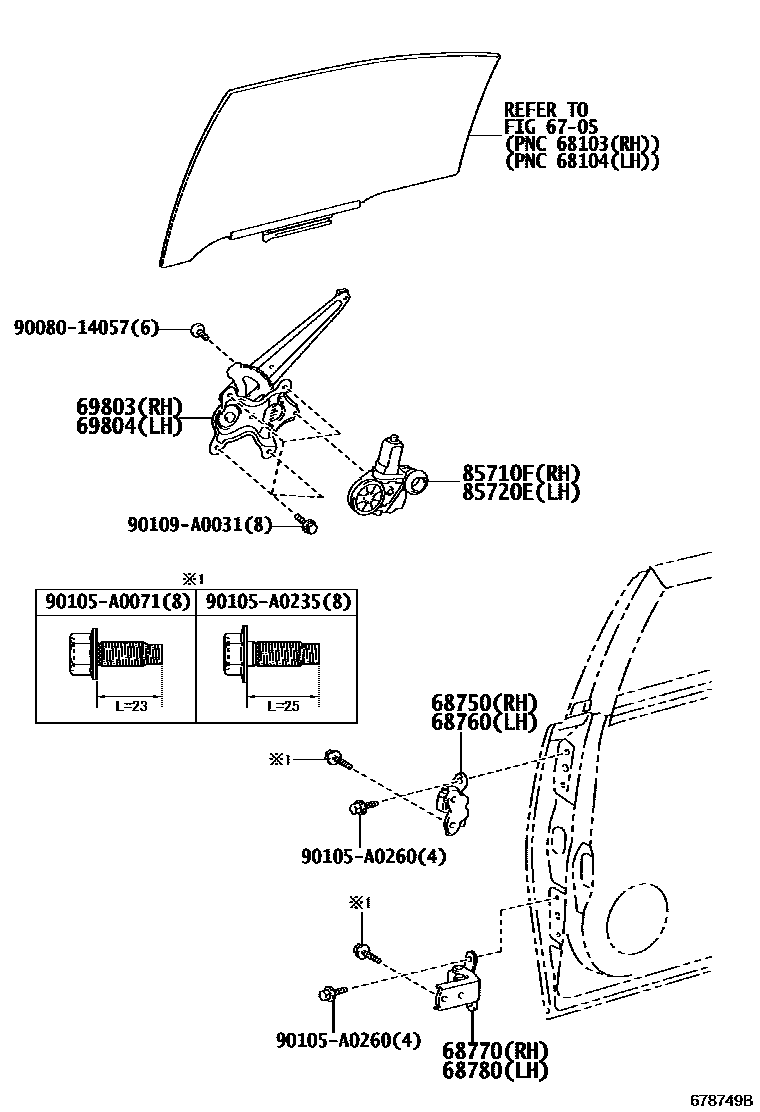

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iGSV60201510

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iGSV60201510

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050iGSV60201510

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050iGSV60201510

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-02150iGSV60201510

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-02150iGSV60201510

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06291iGSV60201510

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06271iGSV60201510

9008014057

main90080-14057

90105A0071

main90105-A0071

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90109A0031

main90109-A0031

14 parts on this diagram · 1 diagram in section
