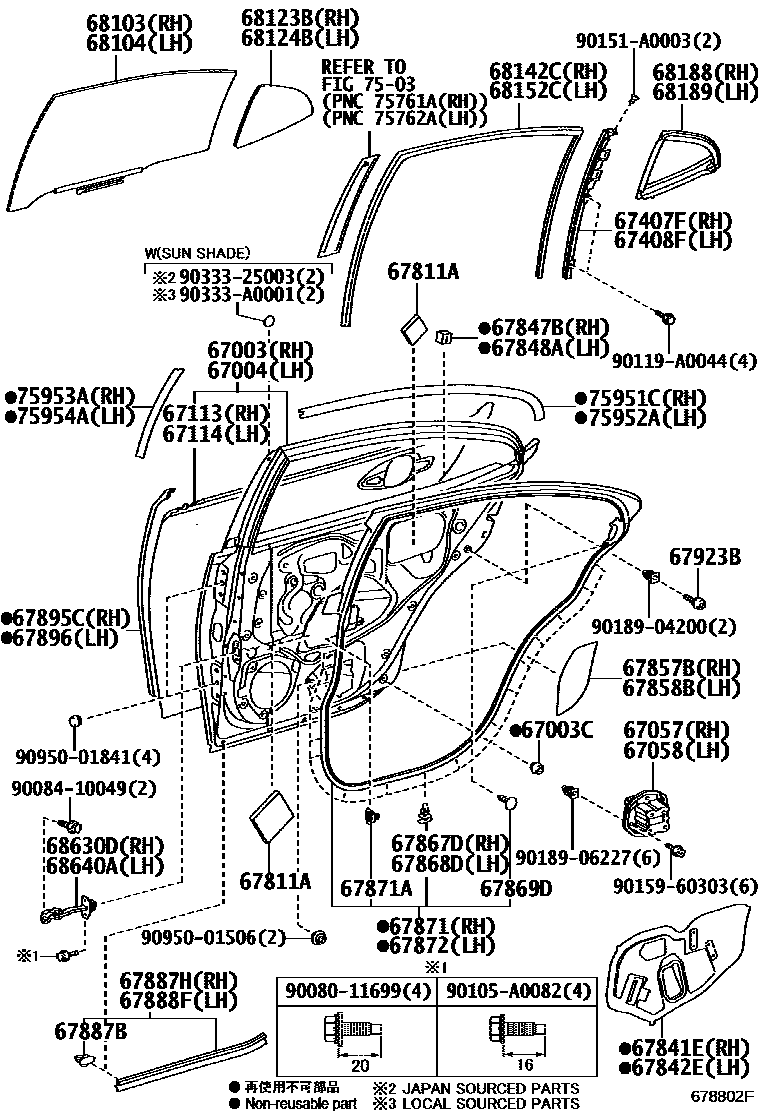

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
67811APAD, REAR DOOR SILENCER
80 X 80
130 X 130
60 X 120
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503SIDE MOULDING
75951CTAPE, BLACK OUT, INNER FRONT RH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
75952ATAPE, BLACK OUT, INNER FRONT LH
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
9008011699
main90080-11699
9008410049
main90084-10049
90105A0082
main90105-A0082
90119A0044
main90119-A0044
90151A0003
main90151-A0003
9015960303
main90159-60303
9018904200
main90189-04200
9018906227
main90189-06227
9033325003
main90333-25003
90333A0001
main90333-A0001
9095001506
main90950-01506
9095001841
main90950-01841
55 parts on this diagram · 2 diagrams in section
