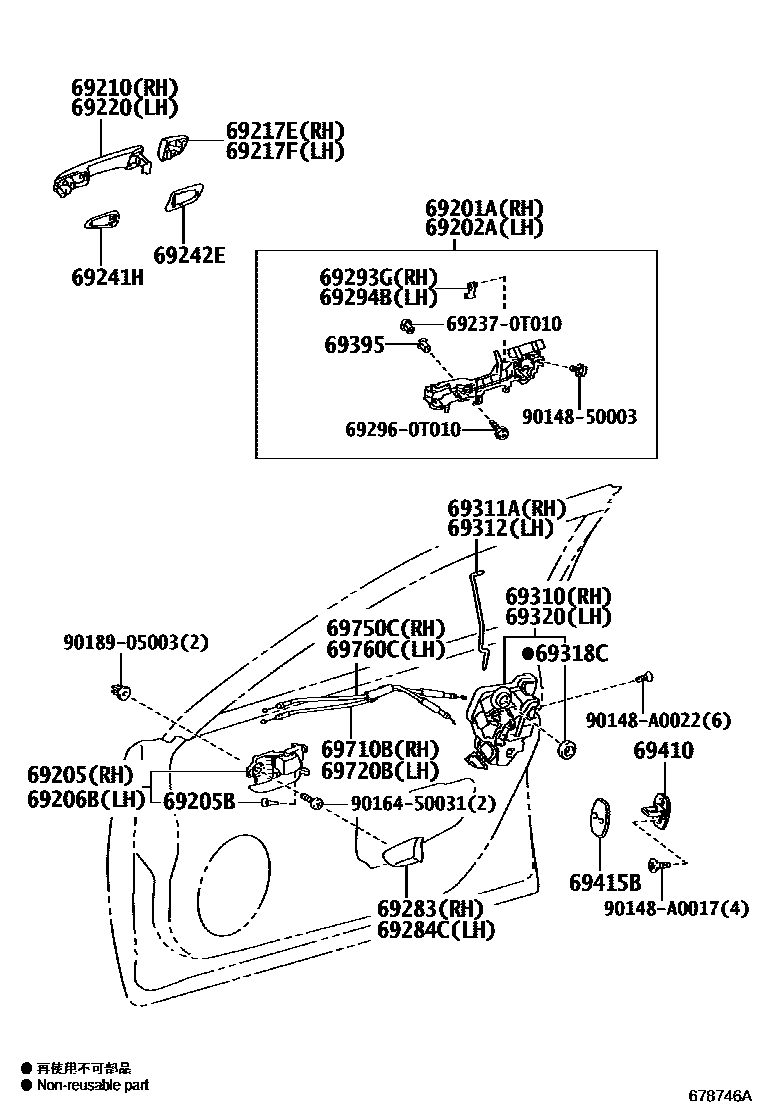

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
TOPAZ BROWN,TRIM41,5#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
TOPAZ BROWN,TRIM41,5#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
DEEP BLUE MC.,8X5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
DEEP BLUE MC.,8X5
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
DEEP BLUE MC.,8X5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
DEEP BLUE MC.,8X5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
TOPAZ BROWN,TRIM41,5#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
TOPAZ BROWN,TRIM41,5#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
692370T010RETAINER, DOOR OUTSIDE HANDLE
main69237-0T010
692960T010SCREW, DOOR INSIDE HANDLE
main69296-0T010
9014850003
main90148-50003
90148A0017
main90148-A0017
90148A0022
main90148-A0022
9016450031
main90164-50031
9018905003
main90189-05003
34 parts on this diagram · 1 diagram in section
