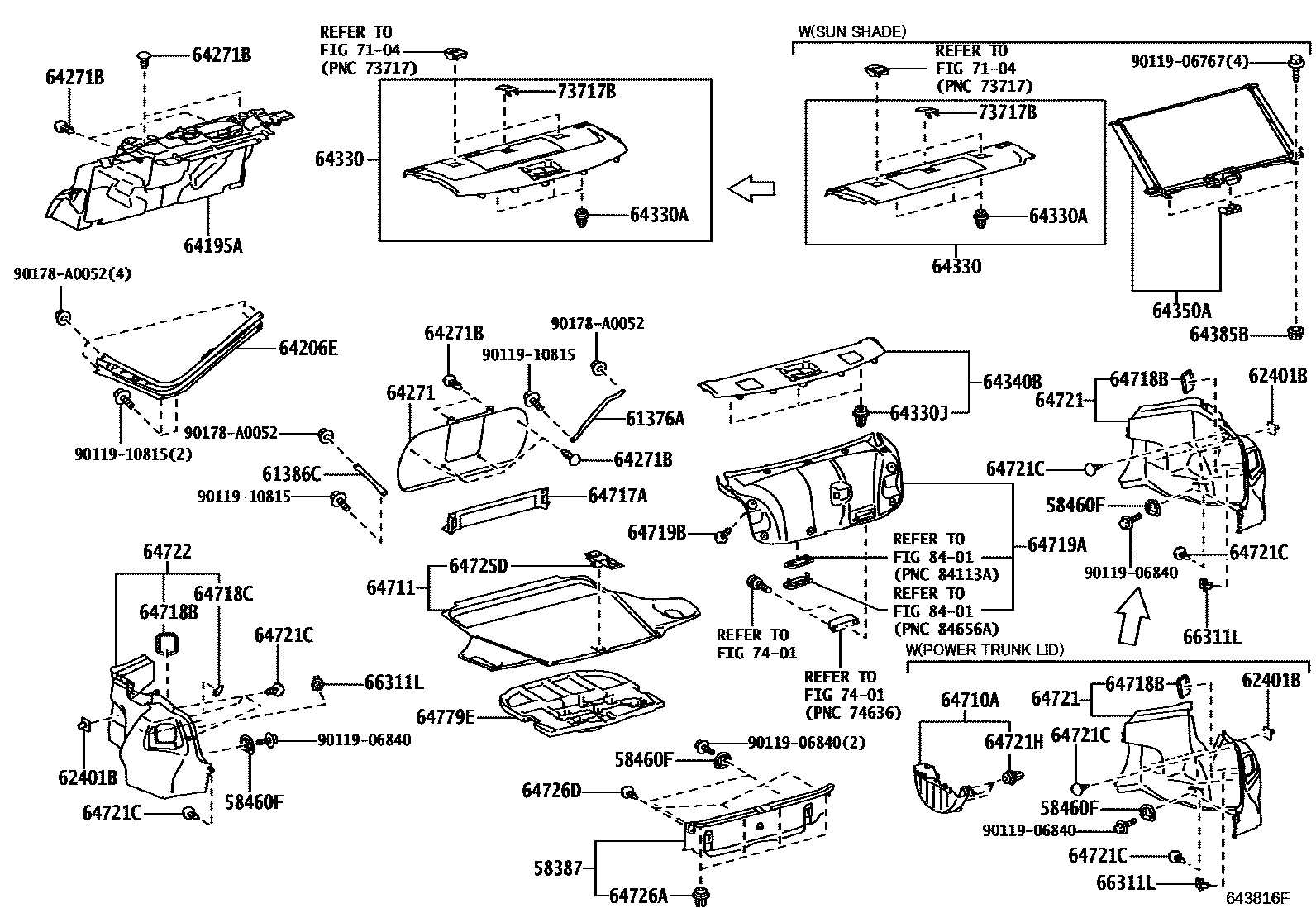

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#,2#,4#,5#
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
61376ABRACE, REAR WHEEL, UPPER FRONT RH
61386CBRACE, REAR WHEEL, UPPER FRONT LH
62401BFASTENER, HOOK
64195AINSULATOR, ROOM PARTITION PANEL
64206EPANEL SUB-ASSY, ROOM PARTITION
64271BOARD, ROOM PARTITION, NO.1
BLACK,TRIM0#,1#,2#,4#,5#
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK
BLACK
64330PANEL ASSY, PACKAGE TRAY TRIM
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,40; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,40
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),NOBLE BROWN,TRIM0#,41,5#; SUN SHADE-WITH(BACK WINDOW),NOBLE BROWN,TRIM0#,41,5#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM1#,2#,40; SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM1#,2#,40
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,NOBLEBROWN,TRIM0#,41,5#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,NOBLE BROWN,TRIM0#,41,5#
AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM1#,2#,40
AUDIO-EMVN & *MAR & 15SPEAKER,NOBLE BROWN,TRIM0#,41,5#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW); SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER; SUN SHADE-WITH(BACK WINDOW); SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,40; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,40
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),NOBLE BROWN,TRIM0#,41,5#; SUN SHADE-WITH(BACK WINDOW),NOBLE BROWN,TRIM0#,41,5#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM1#,2#,40; SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM1#,2#,40
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,NOBLEBROWN,TRIM0#,41,5#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,NOBLE BROWN,TRIM0#,41,5#
64350ASHADE ASSY, REAR WINDOW
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM0#,1#,2#,4#,5#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM0#,1#,2#,4#,5#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM0#,1#,2#,4#,5#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER,BLACK,TRIM0#,1#,2#,4#,5#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM0#,1#,2#,4#,5#
64385BCLIP
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW); SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER; SUN SHADE-WITH(BACK WINDOW); SUN SHADE-WITH(BACK WINDOW)&AUDIO-EMVN & *MAR & 15SPEAKER
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
AUTO LUGGAGE DOOR-WITH,BLACK,TRIM0#,1#,2#,5#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,2#,4#,5#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,4#,5#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,4#,5#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,4#,5#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#,4#,5#
AUTO LUGGAGE DOOR-WITH,BLACK,TRIM0#,1#,2#,5#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#,2#,4#,5#
AUTO LUGGAGE DOOR-WITH,BLACK,TRIM0#,1#,2#,5#
64721CCLIP(LUGGAGE COMPARTMENT)
AUTO LUGGAGE DOOR-WITH,BLACK,TRIM0#,1#,2#,5#; BLACK,TRIM0#,1#,2#,4#,5#
AUTO LUGGAGE DOOR-WITH,BLACK,TRIM0#,1#,2#,5#; BLACK,TRIM0#,1#,2#,5#
64721HCLIP(LUGGAGE COMPARTMENT)
AUTO LUGGAGE DOOR-WITH
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#,2#,4#,5#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64779ETRAY, SPARE WHEEL COVER
66311LHOOK,ROPE
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,1#,2#,4#,5#
7104SEAT BELT & CHILD RESTRAINT SEAT
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
7401ARMREST & VISOR
8401SWITCH & RELAY & COMPUTER
9011906767
main90119-06767
9011906840
main90119-06840
9011910815
main90119-10815
90178A0052
main90178-A0052
39 parts on this diagram · 1 diagram in section
