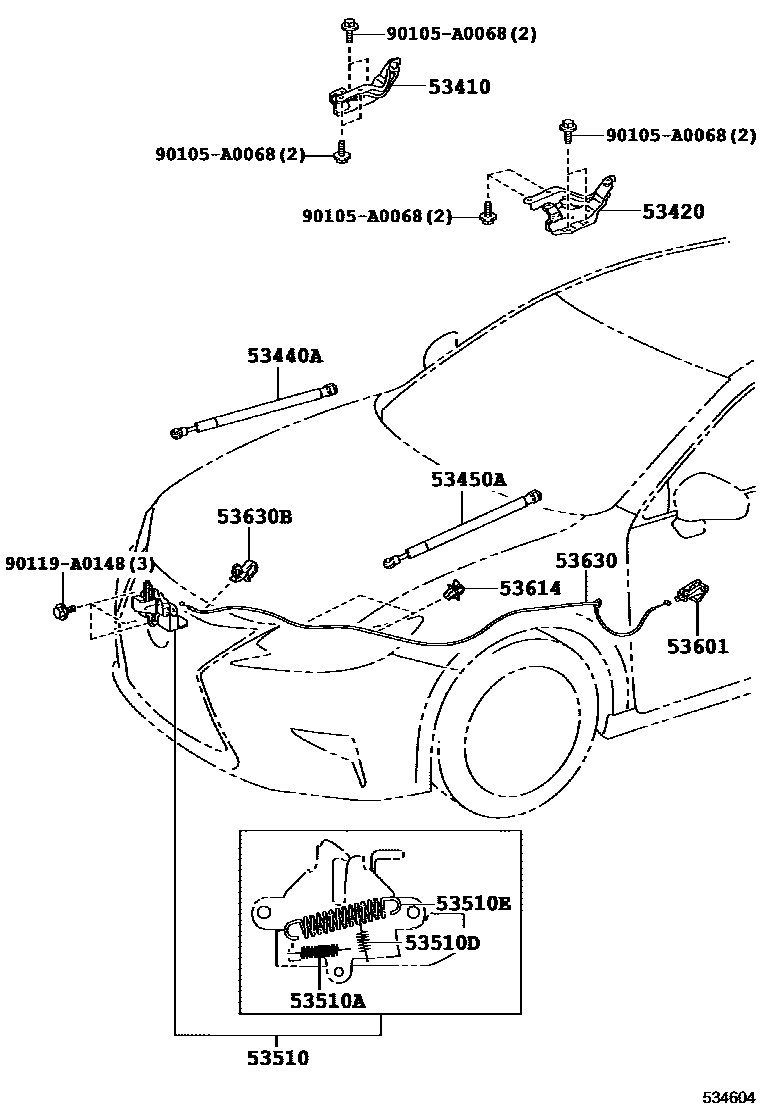

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-06360iGSV60201510

53420HINGE ASSY, HOOD, LH

main53420-06360iGSV60201510

53440ASUPPORT ASSY, HOOD, RH

main53440-33100iGSV60201510-201807

53450ASUPPORT ASSY, HOOD, LH

main53450-33090iGSV60201510-201807

53510LOCK ASSY, HOOD

main53510-33400iGSV60201510

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGSV60201510

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGSV60201510

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iGSV60201510

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iGSV60201510-201701

BLACK,TRIM1#,2#

main53601-30090-C1iGSV60201701-201807

BLACK,TRIM1#,2#,40

main53601-30090-E2iGSV60201701-201807

NOBLE BROWN,TRIM0#,41,5#

53614CLAMP, HOOD LOCK CONTROL CABLE

main90959-01369×2iGSV60201510

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33180iGSV60201510

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-12009iGSV60201510

90105A0068

main90105-A0068

90119A0148

main90119-A0148

14 parts on this diagram · 1 diagram in section
