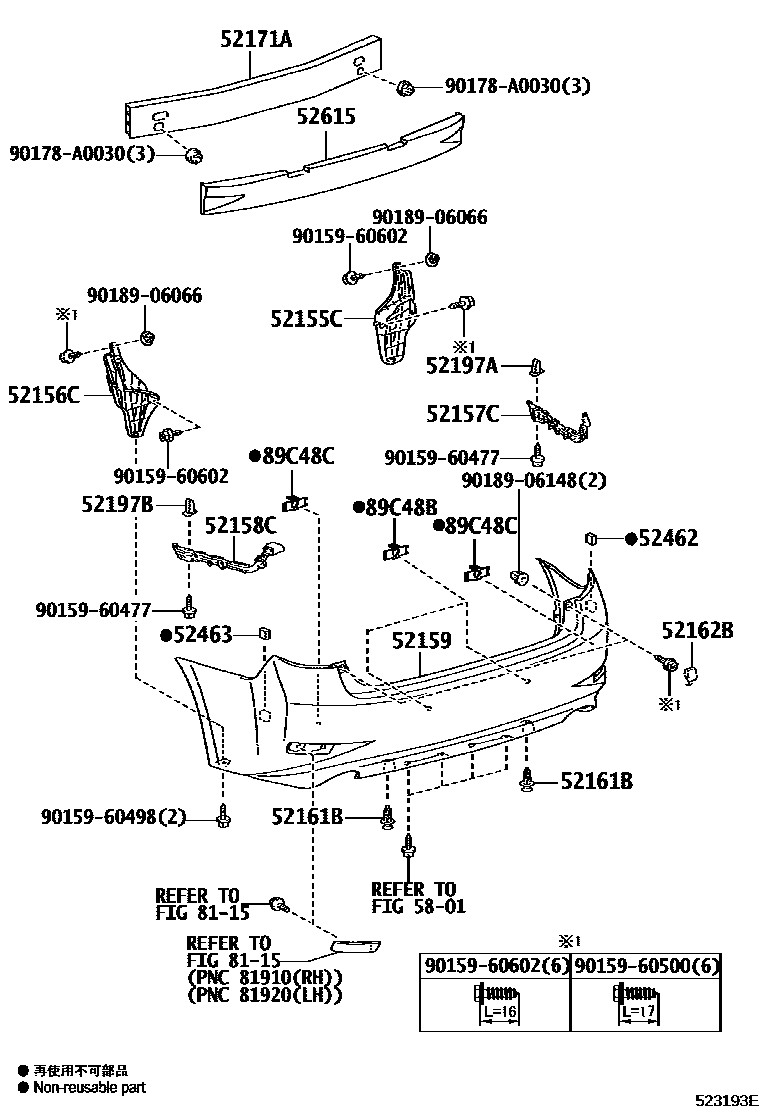

REAR BUMPER & BUMPER STAY

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-06030iGSV60201510-201803

main52155-33010iGSV60201803

(J)

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-06030iGSV60201510-201803

main52156-33010iGSV60201803

(J)

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-06060iGSV60201510-201803

main52157-33030iGSV60201803

(J)

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-06060iGSV60201510-201803

main52158-33030iGSV60201803

(J)

52159COVER, REAR BUMPER

main52159-0A905supersedes 52159-0A904iGSV60201510

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

52161BPIECE, REAR BUMPER

main52161-02020×2iGSV60201510

52162BPLATE, REAR BUMPER, NO.1

main52162-33903×2iGSV60201510

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-06130iGSV60201510

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iGSV60201510

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-22020iGSV60201510

52462PAD, REAR BUMPER, RH

main52462-33030iGSV60201510

52463PAD, REAR BUMPER, LH

main52463-33020iGSV60201510

52615ABSORBER, REAR BUMPER ENERGY

main52615-06170iGSV60201510

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-06040×2iGSV60201510-201807

CLEARANCE & BACK SONAR-WITH

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-06040×2iGSV60201510-201807

CLEARANCE & BACK SONAR-WITH

9015960477

main90159-60477

9015960498

main90159-60498

9015960500

main90159-60500

9015960602

main90159-60602

90178A0030

main90178-A0030

9018906066

main90189-06066

9018906148

main90189-06148

24 parts on this diagram · 1 diagram in section
