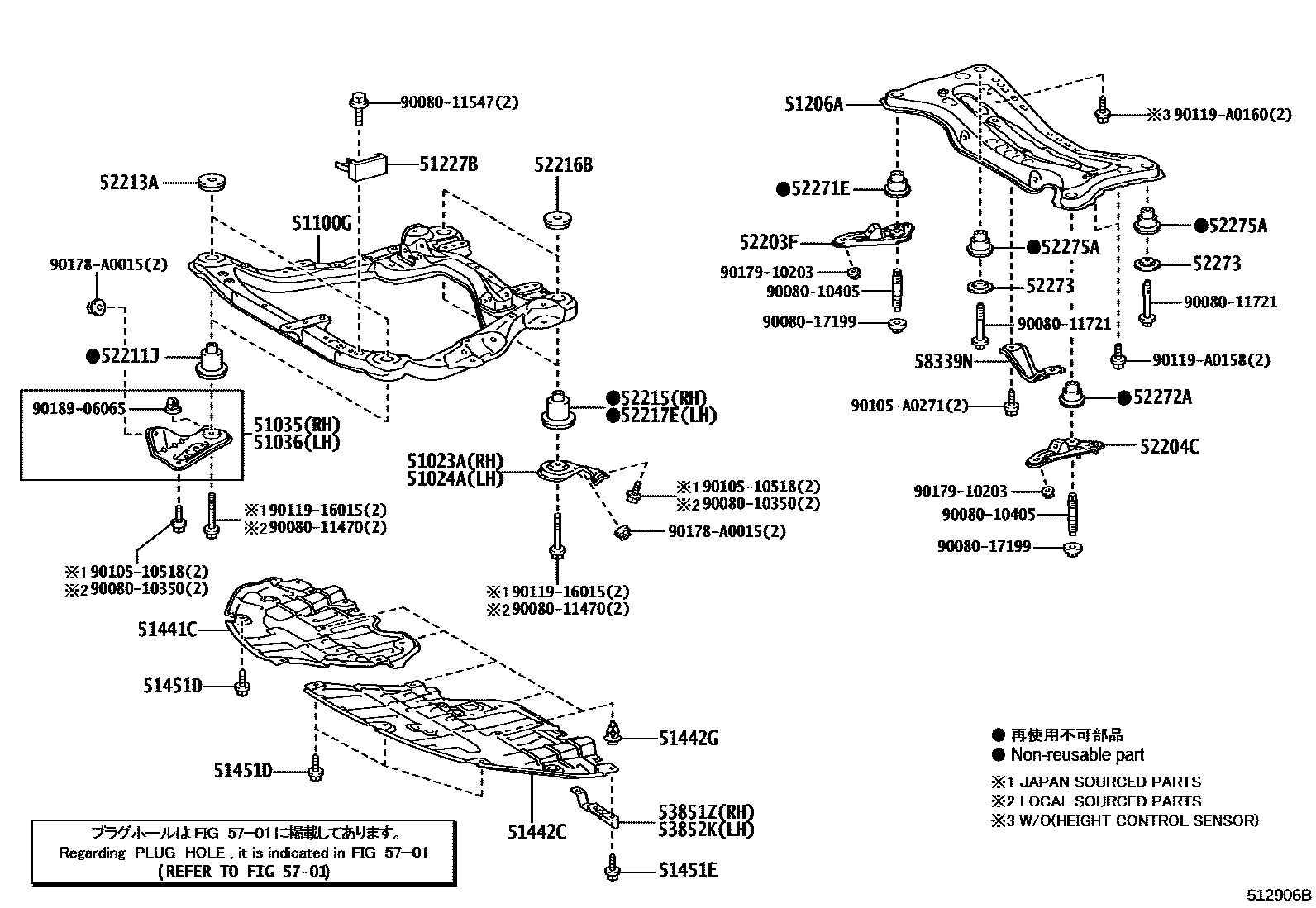

SUSPENSION CROSSMEMBER & UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-07010iGSV60201510

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-07010iGSV60201510

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-07010iGSV60201510

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-07010iGSV60201510

51100GFRAME ASSY, FRONT

main51100-07035iGSV60201510

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06091iGSV60201510

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iGSV60201510

51441CCOVER, ENGINE UNDER, RH

main51441-06280iGSV60201510-201802

main51441-33200iGSV60201802

(J)

51442CCOVER, ENGINE UNDER, LH

main51442-06270iGSV60201510-201802

main51442-33200iGSV60201802

(J)

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-A0037×5iGSV60201510-201807

51451DSCREW, NO.1

main90159-60477×8iGSV60201510-201807

51451ESCREW, NO.2

main90159-60477×2iGSV60201510-201807

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-06041iGSV60201510

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-06041iGSV60201510

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06080×2iGSV60201510

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06080×2iGSV60201510

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06120iGSV60201510

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06060×2iGSV60201510

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06100iGSV60201510

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-06110iGSV60201510

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06100iGSV60201510

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010×2iGSV60201510

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06140×2iGSV60201510

53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-06130iGSV60201510-201710

main53851-06131iGSV60201711

53852KPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-06130iGSV60201510-201710

main53852-06131iGSV60201711

5701HOLE PLUG

→ Go to FIG 57-01

58339NBRACKET, JACK UP

main58339-06030iGSV60201510

9008010350

main90080-10350

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

9010510518

main90105-10518

90105A0271

main90105-A0271

9011916015

main90119-16015

90119A0158

main90119-A0158

90119A0160

main90119-A0160

90178A0015

main90178-A0015

9017910203

main90179-10203

9018906065

main90189-06065

41 parts on this diagram · 1 diagram in section
