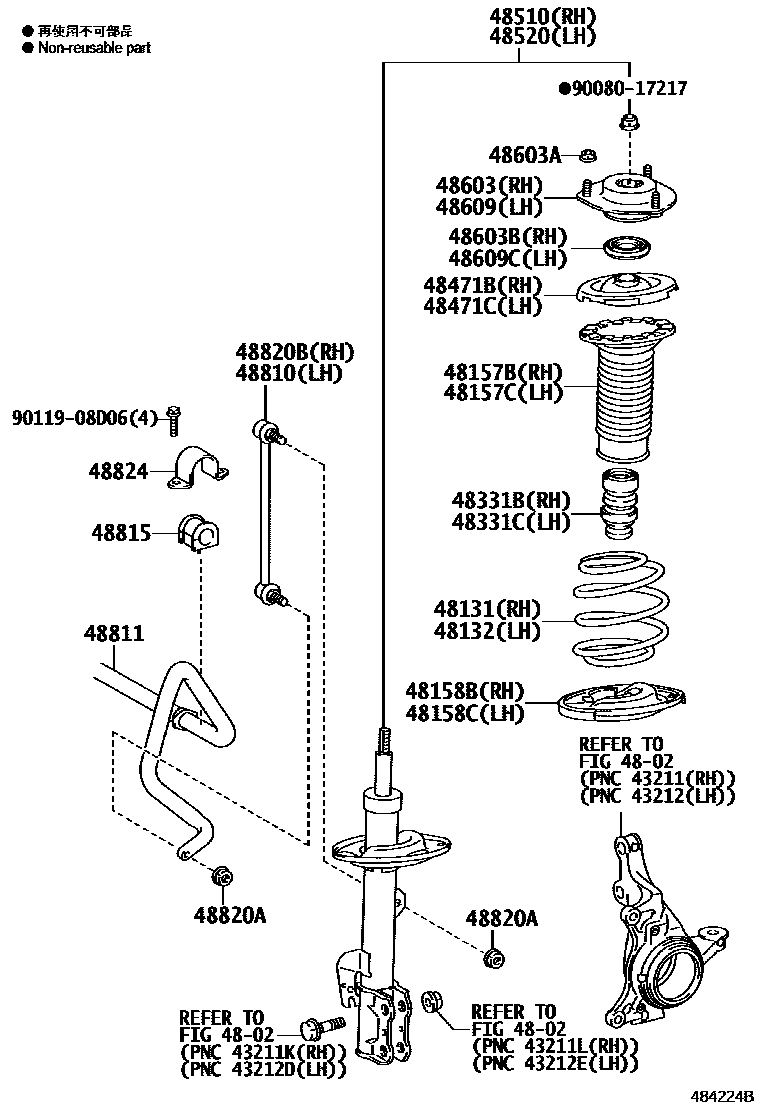

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-06G40iGSV60201510

48132SPRING, FRONT COIL, LH

main48132-06240iGSV60201510

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-07020iGSV60201711

main48157-33080iGSV60201510-201710

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-07020iGSV60201711

main48157-33080iGSV60201510-201710

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33090iGSV60201510

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33100iGSV60201510

48331BBUMPER, FRONT SPRING, RH

main48331-06050iGSV60201510

48331CBUMPER, FRONT SPRING, LH

main48331-06050iGSV60201510

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-0E011iGSV60201510

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-0E011iGSV60201510

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z261iGSV60201510

MARK 48510-06A60

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z121iGSV60201510

MARK 48520-06A50

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06270iGSV60201510

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-A0004iGSV60201510

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iGSV60201510

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06270iGSV60201510

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iGSV60201510

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06050iGSV60201510

48811BAR, STABILIZER, FRONT

main48811-33190iGSV60201510

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28130iGSV60201510

48820ANUT(FOR FRONT STABILIZER LINK)

main90080-17224iGSV60201510

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06050iGSV60201510

48824BRACKET, STABILIZER, FRONT

main48824-06020iGSV60201510

9008017217

main90080-17217

9011908D06

main90119-08D06

26 parts on this diagram · 1 diagram in section
