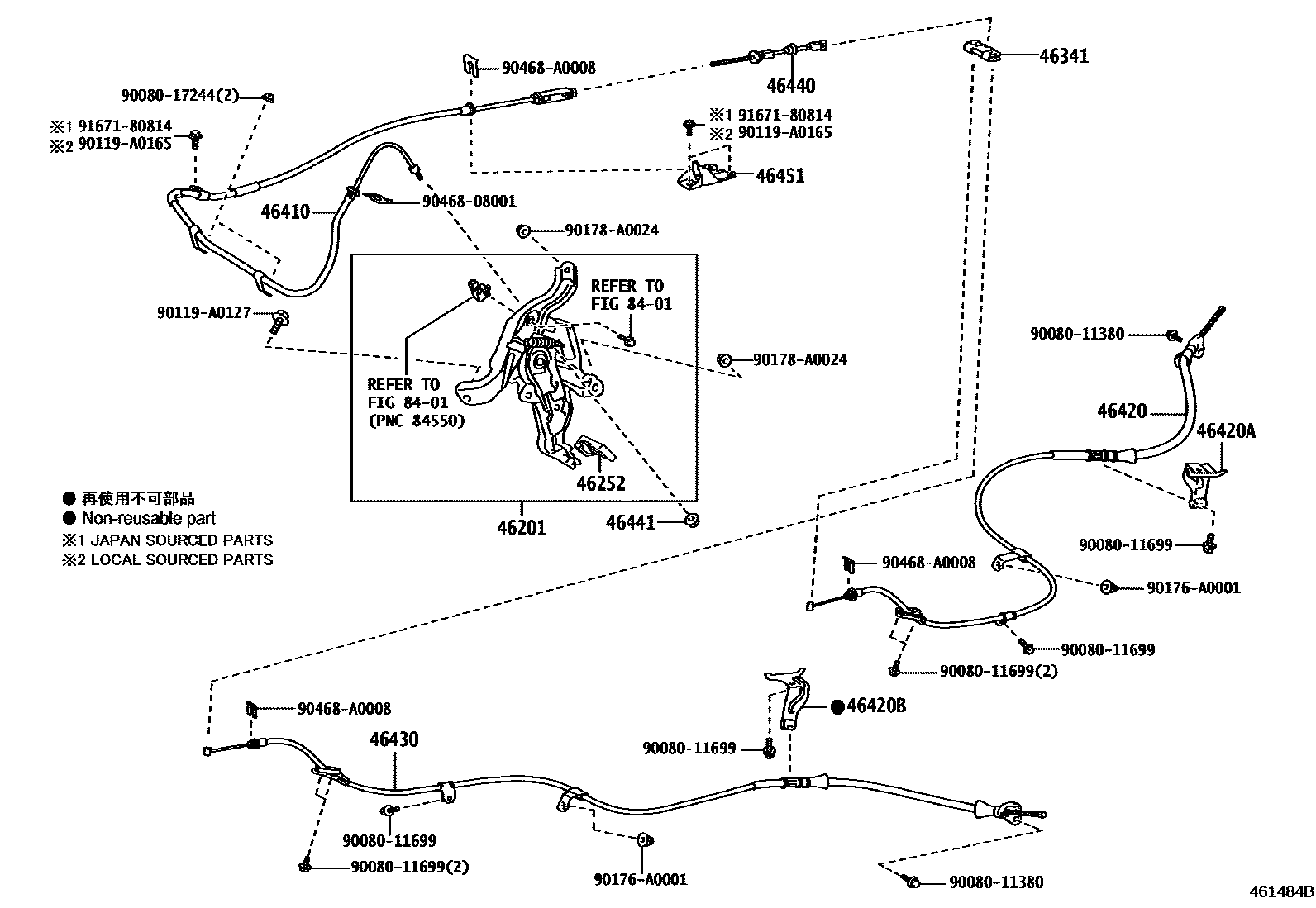

PARKING BRAKE & CABLE

0001 1 0002 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-06200iGSV60201510

46252PAD, PARKING PEDAL

main46252-06020iGSV60201510

46341EQUALIZER, PARKING BRAKE

main46341-33030iGSV60201510

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06140iGSV60201510

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-07040iGSV60201510

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-06011iGSV60201510

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-06011iGSV60201510

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-07040iGSV60201510

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-06080iGSV60201510

46441NUT, WIRE ADJUSTING, NO.1

main90182-A0030iGSV60201510

46451BRACKET, CABLE SUPPORT

main46451-33100iGSV60201510

8401

9008011380

main90080-11380

9008011699

main90080-11699

9008017244

main90080-17244

90119A0127

main90119-A0127

90119A0165

main90119-A0165

90176A0001

main90176-A0001

90178A0024

main90178-A0024

9046808001

main90468-08001

90468A0008

main90468-A0008

9167180814

main91671-80814

22 parts on this diagram · 2 diagrams in section
