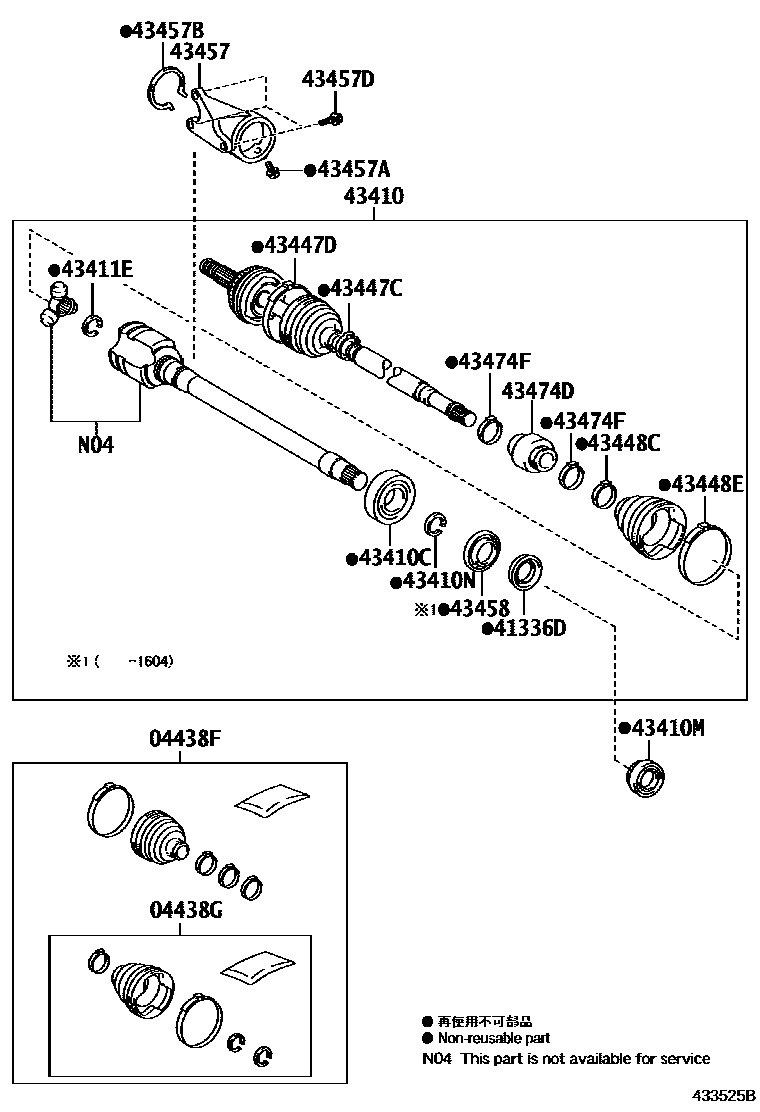

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06540iGSV60201510

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08050iGSV60201510

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iGSV60201510

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06A50iGSV60201510-201711

main43410-06B80iGSV60201712

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iGSV60201510

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iGSV60201709

*324

main90311-A0029iGSV60201510-201801

*325

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iGSV60201510

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSV60201510

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSV60201510

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06250iGSV60201510

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08070iGSV60201510

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGSV60201510

43457BRACKET, DRIVE SHAFT BEARING

main43457-07010iGSV60201510

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iGSV60201510

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iGSV60201510

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iGSV60201510

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iGSV60201510-201604

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06300iGSV60201510

sub43474-06540

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06790×2iGSV60201510

19 parts on this diagram · 2 diagrams in section
