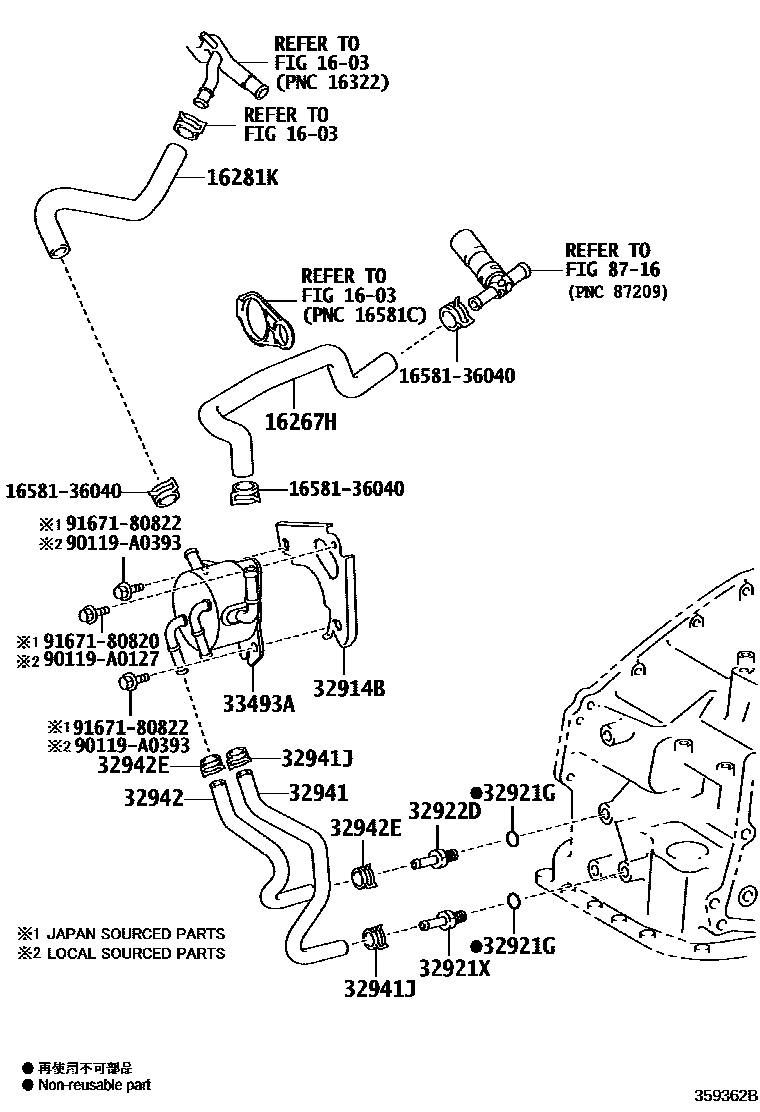

OIL COOLER & TUBE (ATM)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16267HHOSE, WATER BY-PASS, NO.3

main16267-0P010i2GRFE..GSV60201510-201807

16281KHOSE, WATER BY-PASS, NO.4

main16281-0P040i2GRFE..GSV60201510

32914BSTAY, TRANSMISSION OIL COOLER

main32914-06010iGSV60201510

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031×2iGSV60201709

*324

main90301-A0022×2iGSV60201510-201801

*325

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iGSV60201606-201801

*325

main90404-A0002iGSV60201510-201605

*325

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iGSV60201606-201801

*325

main90404-A0002iGSV60201510-201605

*325

32941HOSE, OIL COOLER INLET, NO.1

main32941-06080iGSV60201510

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90467-A0012×2iGSV60201510

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06070iGSV60201510

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90467-A0012×2iGSV60201510

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33040iGSV60201510

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

1658136040CLAMP, HOSE(FOR WATER HOSE)

main16581-36040

90119A0127

main90119-A0127

90119A0393

main90119-A0393

9167180820

main91671-80820

9167180822

main91671-80822

18 parts on this diagram · 1 diagram in section
