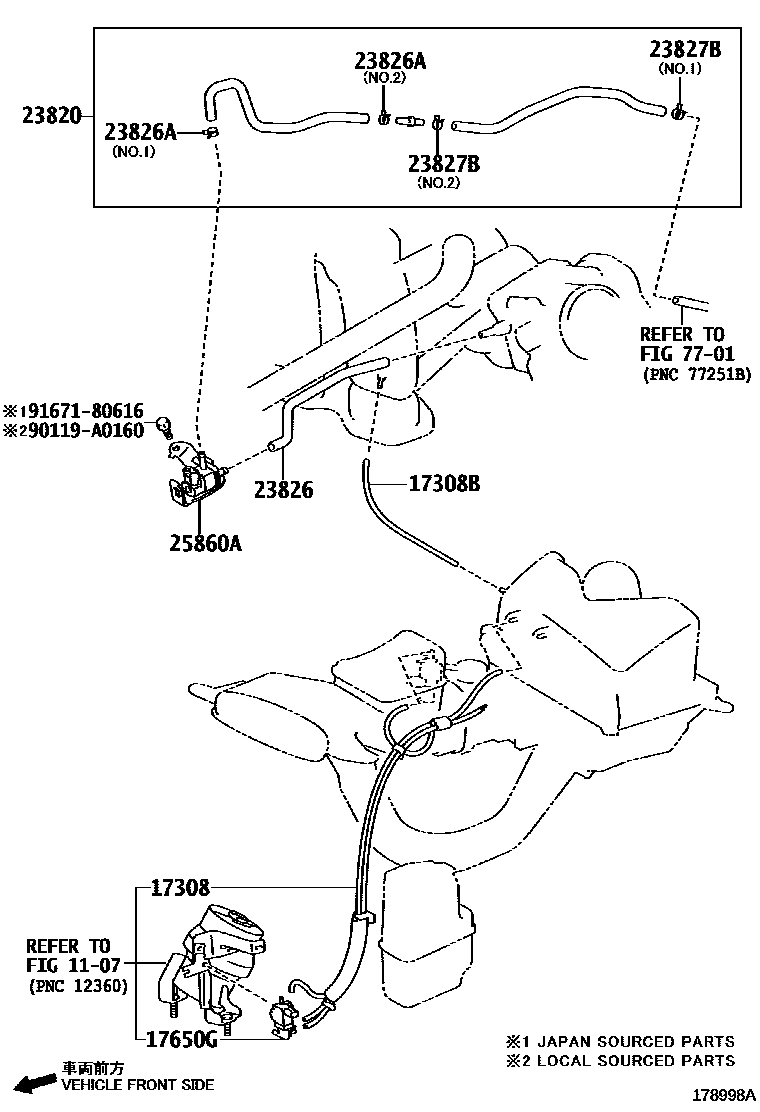

VACUUM PIPING

1107MOUNTING

→ Go to FIG 11-07

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-0P111i2GRFE..GSV60201510

17308BHOSE SUB-ASSY, VACUUM

main90999-92003i2GRFE..GSV60201510

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i2GRFE..GSV60201510

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0P200i2GRFE..GSV60201510

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0P040i2GRFE..GSV60201510

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2GRFE..GSV60201510-201802

NO.1

main90466-11004i2GRFE..GSV60201803

NO.1

main96132-51100i2GRFE..GSV60201510-201802

NO.2

main96133-51101i2GRFE..GSV60201803

NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13005i2GRFE..GSV60201510

NO.1

main96132-51100i2GRFE..GSV60201510-201802

NO.2

main96133-51101i2GRFE..GSV60201803

NO.2

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-31070i2GRFE..GSV60201510

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90119A0160

main90119-A0160

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
