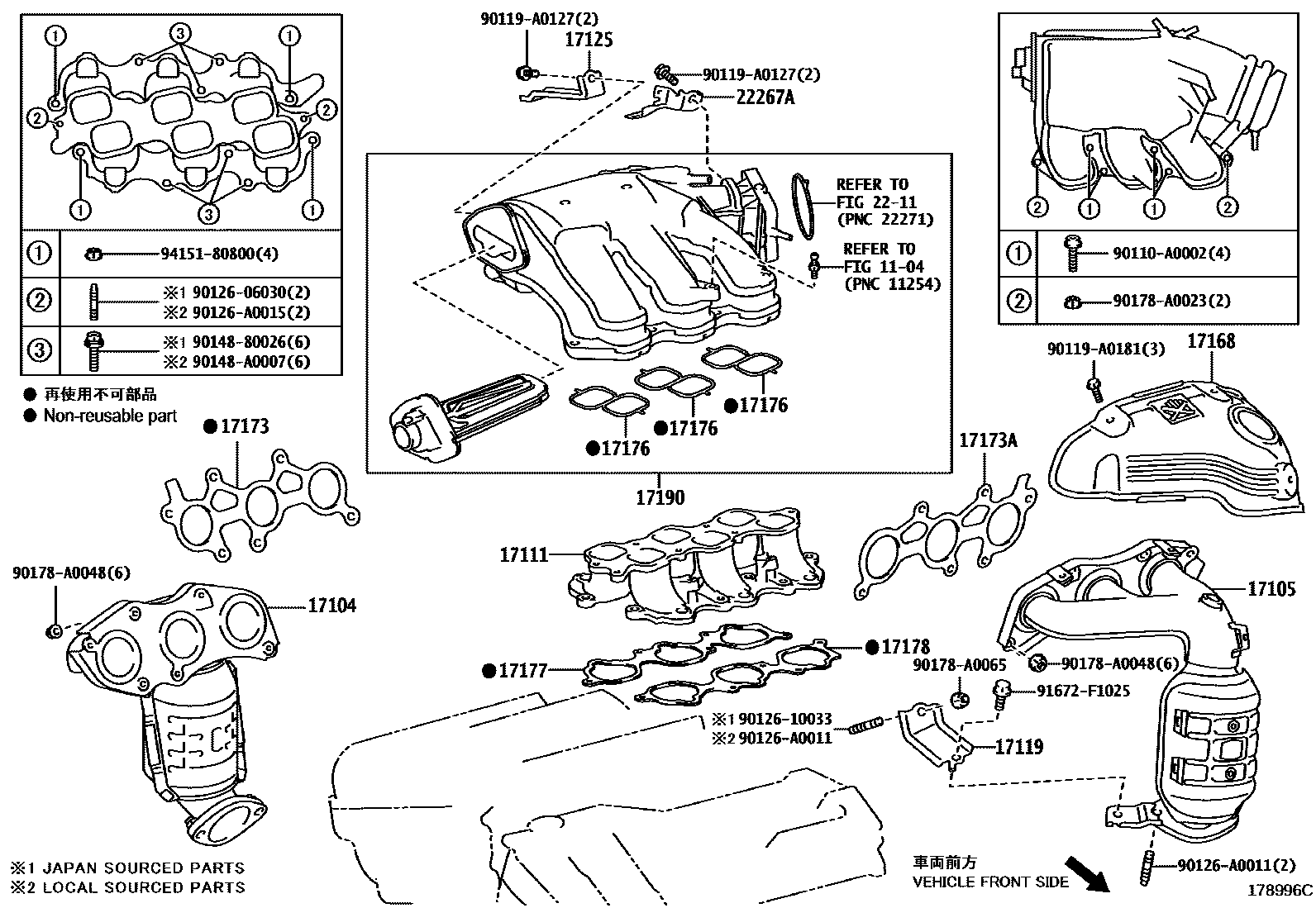

MANIFOLD

1104

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-0P220i2GRFE..GSV60201510

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-0P300i2GRFE..GSV60201510

17111MANIFOLD, INTAKE

main17111-0P030i2GRFE..GSV60201510

(L)

main17111-31141i2GRFE..GSV60201510

(J)

17119STAY, MANIFOLD, NO.2

main17119-0P030i2GRFE..GSV60201510

17125STAY, SURGE TANK, NO.1

main17125-0P020i2GRFE..GSV60201510

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0P020i2GRFE..GSV60201510

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0P020i2GRFE..GSV60201510

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-0P020i2GRFE..GSV60201510

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-0P021i2GRFE..GSV60201510

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0P021i2GRFE..GSV60201510

(L)

main17177-31040i2GRFE..GSV60201510

(J)

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-0P021i2GRFE..GSV60201510

(L)

main17178-31030i2GRFE..GSV60201510

(J)

17190TANK ASSY, INTAKE AIR SURGE

main17190-0P032i2GRFE..GSV60201510

2211

22267ABRACKET, THROTTLE BODY

main22267-0P020i2GRFE..GSV60201510

90110A0002

main90110-A0002

90119A0127

main90119-A0127

90119A0181

main90119-A0181

9012606030

main90126-06030

9012610033

main90126-10033

90126A0011

main90126-A0011

90126A0015

main90126-A0015

9014880026

main90148-80026

90148A0007

main90148-A0007

90178A0023

main90178-A0023

90178A0048

main90178-A0048

90178A0065

main90178-A0065

91672F1025

main91672-F1025

9415180800

main94151-80800

29 parts on this diagram · 1 diagram in section
