WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

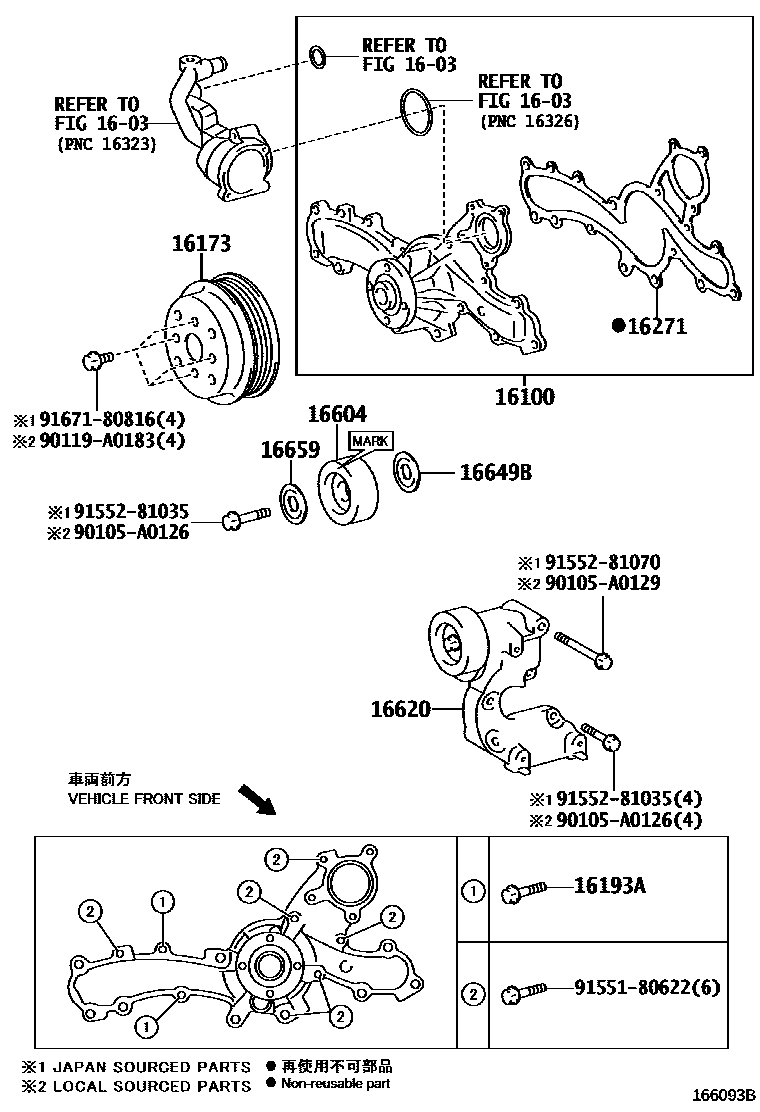

16100PUMP ASSY, ENGINE WATER

main16100-09441i2GRFE..GSV60201510-201608

(L)

main16100-09442i2GRFE..GSV60201608

(L)

main16100-39456i2GRFE..GSV60201510

(J)

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GSV60201510

16193ABOLT(FOR WATER PUMP COVER)

main16193-0P040×2i2GRFE..GSV60201608-201807

(L)

main16193-31080×2i2GRFE..GSV60201510-201807

(J)

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GSV60201510

(L)

main16271-31030i2GRFE..GSV60201510

(J)

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020i2GRFE..GSV60201510

MARK=PU107013ARMXY3

main16604-31030i2GRFE..GSV60201510

MARK=PU107013ARMXY1

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GSV60201510

16649BPLATE, IDLER PULLEY COVER

main16649-31020i2GRFE..GSV60201510

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2GRFE..GSV60201510

(J)

main16659-AD010i2GRFE..GSV60201510

(L)

90105A0126

main90105-A0126

90105A0129

main90105-A0129

90119A0183

main90119-A0183

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

16 parts on this diagram · 1 diagram in section
