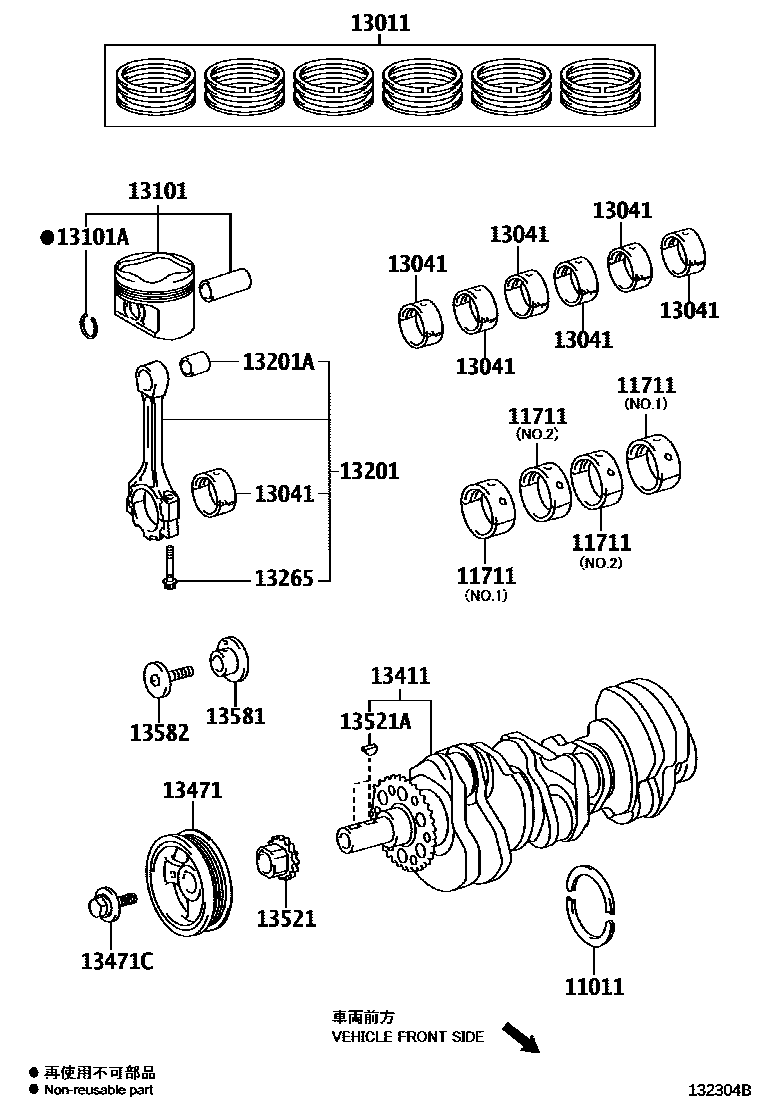

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK 1,NO.2,(L):REFER R/M
MARK 2,NO.2,(L):REFER R/M
MARK 3,NO.2,(L):REFER R/M
MARK 4,NO.2,(L):REFER R/M
MARK 5,NO.2,(L):REFER R/M
MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M
MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M
MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M
MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M
MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M
MARK 1,NO.1,(L):REFER R/M
MARK 2,NO.1,(L):REFER R/M
MARK 3,NO.1,(L):REFER R/M
MARK 4,NO.1,(L):REFER R/M
MARK 5,NO.1,(L):REFER R/M
MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M
MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M
MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M
MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M
MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M
13011RING SET, PISTON
STD,*402
STD,*497
13041BEARING, CONNECTING ROD
MARK1,REFER R/M,*402
MARK2,REFER R/M,*402
MARK3,REFER R/M,*402
MARK4,REFER R/M,*402
MARK 1,(L),REFER R/M,*402
MARK 2,(L),REFER R/M,*402
MARK 3,(L),REFER R/M,*402
MARK 4,(L),REFER R/M,*402
MARK 1,(J),REFER R/M,*402
MARK 2,(J),REFER R/M,*402
MARK 3,(J),REFER R/M,*402
MARK 4,(J),REFER R/M,*402
MARK 1,REFER R/M,*497
MARK 2,REFER R/M,*497
MARK 3,REFER R/M,*497
MARK 4,REFER R/M,*497
13101PISTON SUB-ASSY, W/PIN
STD,REFER R/M,*402
STD,MARK A,REFER R/M,*497
STD,MARK B,REFER R/M,*497
STD,MARK C,REFER R/M,*497
13101ARING, HOLE SNAP(FOR PISTON PIN)
(J)
(L)
13201ROD SUB-ASSY, CONNECTING
MARK A,REFER R/M
MARK B,REFER R/M
MARK C,REFER R/M
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
(J)
(L)
13582SHAFT, IDLE GEAR, NO.2
(J),(L)
16 parts on this diagram · 1 diagram in section
