CAMERA & REAR MONITOR DISPLAY
7504
8106
8504
86470COMPUTER ASSY, DRIVER MONITOR
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
86471CAMERA, DRIVER MONITOR
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
86790BCAMERA ASSY, TELEVISION, FR
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86790DCAMERA ASSY, TELEVISION, RR
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86790FCAMERA ASSY, TELEVISION, SIDE LH
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86792CCOMPUTER, PARKING ASSIST
*614
*614
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM),*614
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM),*614
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
86799BWIRE, TELEVISION CAMERA, RH
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
86799CWIRE, TELEVISION CAMERA, LH
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
8679ASEAL, TELEVISION CAMERA
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
867A3CIRCUIT, LIGHT PARKING ASSIST
9015350015
main90153-50015
9015950327
main90159-50327
9016750063
main90167-50063
9017906274
main90179-06274
9167380612
main91673-80612

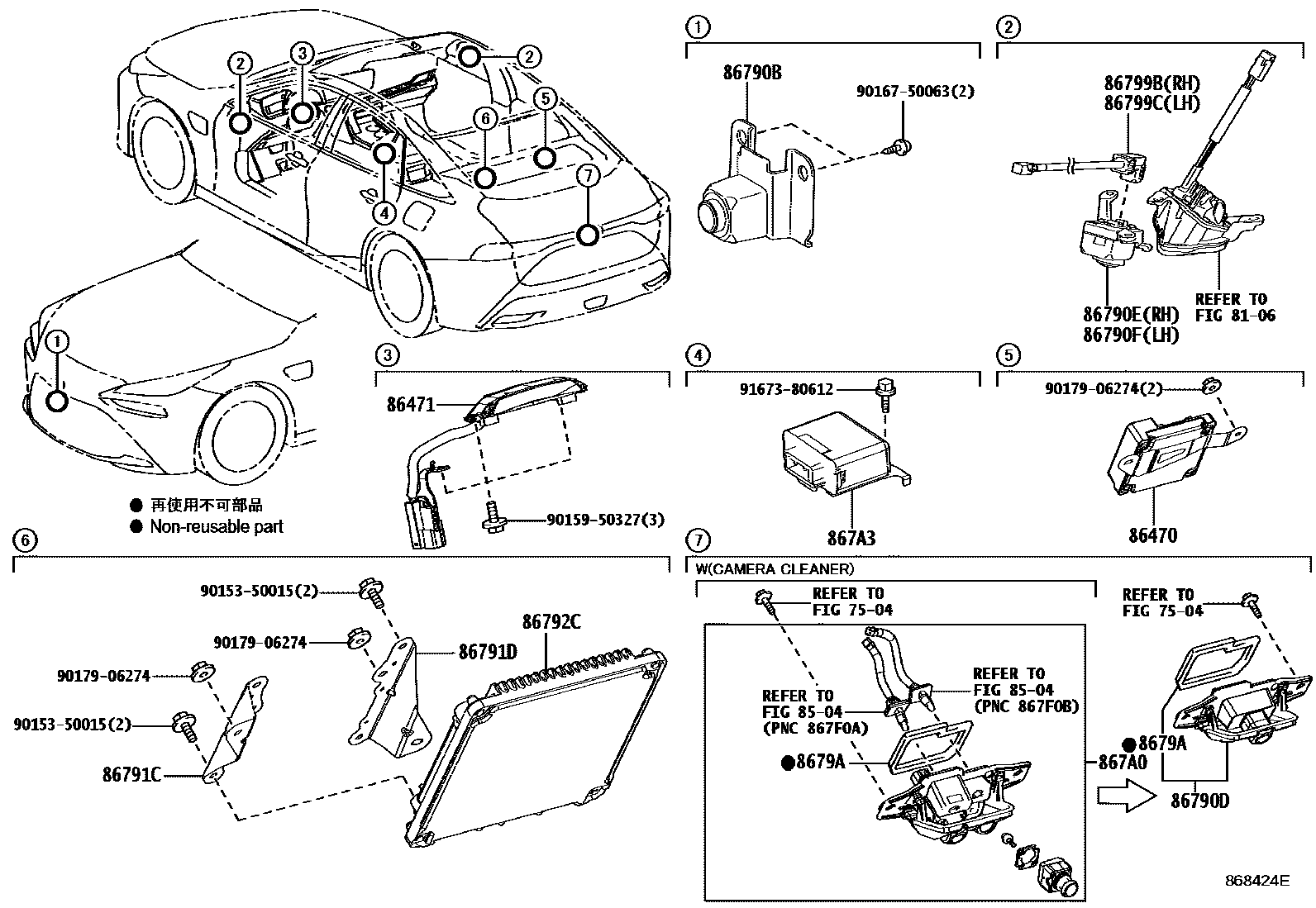

22 parts on this diagram · 1 diagram in section
