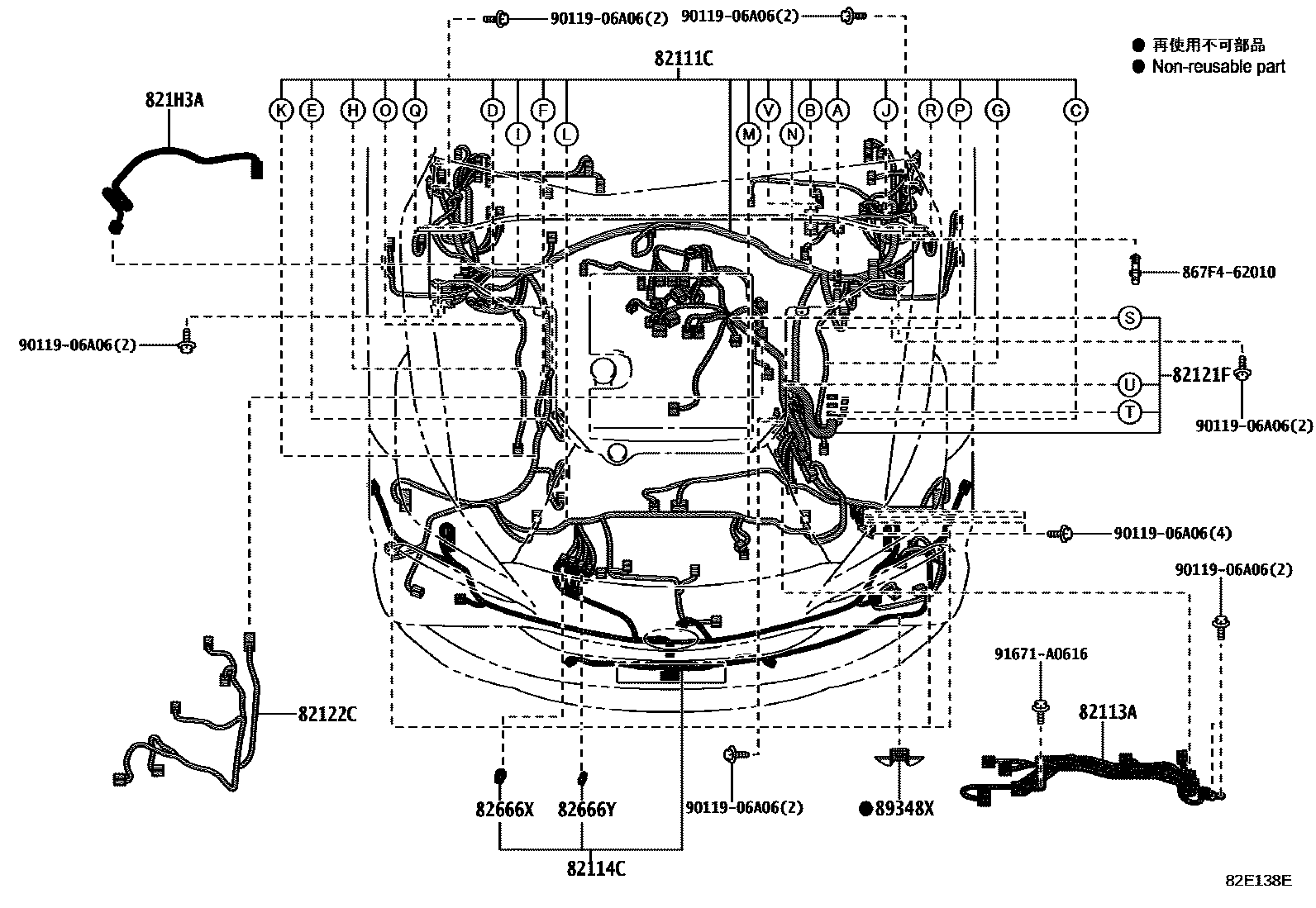

WIRING & CLAMP
82111CWIRE, FRONT COMPARTMENT, MAIN
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&HEADLAMP-DOUBLE BEAM LED
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&HEADLAMP-DOUBLE BEAM LED
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&HEADLAMP-DOUBLE BEAM LED
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM
82113AWIRE, FRONT COMPARTMENT, NO.3
82114CWIRE, FRONT COMPARTMENT, NO.4
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
82121FWIRE, STACK
821H3AWIRE, BATTERY PACK, NO.1
82666XHOLDER, CONNECTOR NO.17
82666YHOLDER, CONNECTOR NO.18
89348XCLIP, ULTRASONIC SENSOR, FRONT
OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *FLA & *PVM&CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
CLEARANCE & BACK SONAR-WITH(*PKSB & *PVM)
867F462010JOINT, WASHER HOSE
main867F4-62010
9011906A06
main90119-06A06
91671A0616
main91671-A0616
12 parts on this diagram · 14 diagrams in section
