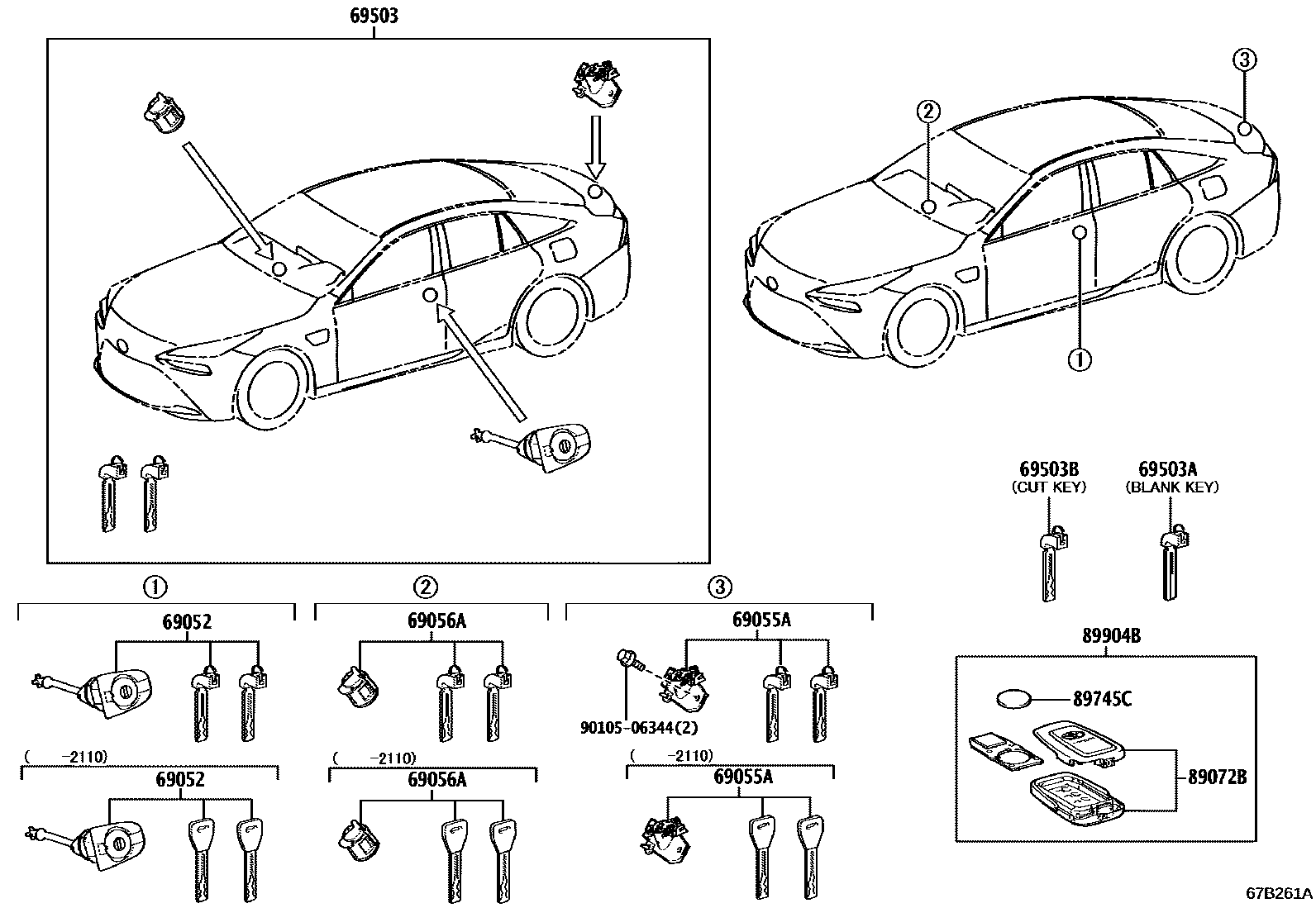

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-62030iJPD20202011-202312

main69052-62050iJPD20202312-202411

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-62020iJPD20202011-202312

main69055-62040iJPD20202312-202411

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30270iJPD20202011-202110

main69056-30290iJPD20202110-202312

main69056-30310iJPD20..S202411

69503CYLINDER SET, LOCK

main69005-62060iJPD20202011-202312

main69005-62140iJPD20..S202411

69503AKEY, BLANK

main69515-16110iJPD20202110-202312

MASTER KEY,W(*68)

main69515-47030iJPD20202011-202109

MASTER KEY,W(*68)

main69515-K0020iJPD20202312-202411

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-16100iJPD20202110-202312

MASTER KEY,W(*68)

main69515-47020iJPD20202011-202109

MASTER KEY,W(*68)

main69515-K0010iJPD20202312-202411

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-62050×2iJPD20..B,S202011-202211

main89072-62130×2iJPD20..B,S202212-202312

main89072-62190×2iJPD20..S202312-202411

main89072-62140×2supersedes 89072-62200iJPD20..H202312-202411

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE

89745CBATTERY, TRANSMITTER

main89745-50020iJPD20202011-202312

CR2032

main89745-K0010iJPD20..S202411

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-62030iJPD20..B,S202011-202211

main8990H-62140iJPD20..B,S202212-202312

main8990H-62210iJPD20..S202312-202411

main8990H-62150supersedes 8990H-62220iJPD20..H202312-202411

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE

9010506344

main90105-06344

10 parts on this diagram · 1 diagram in section
