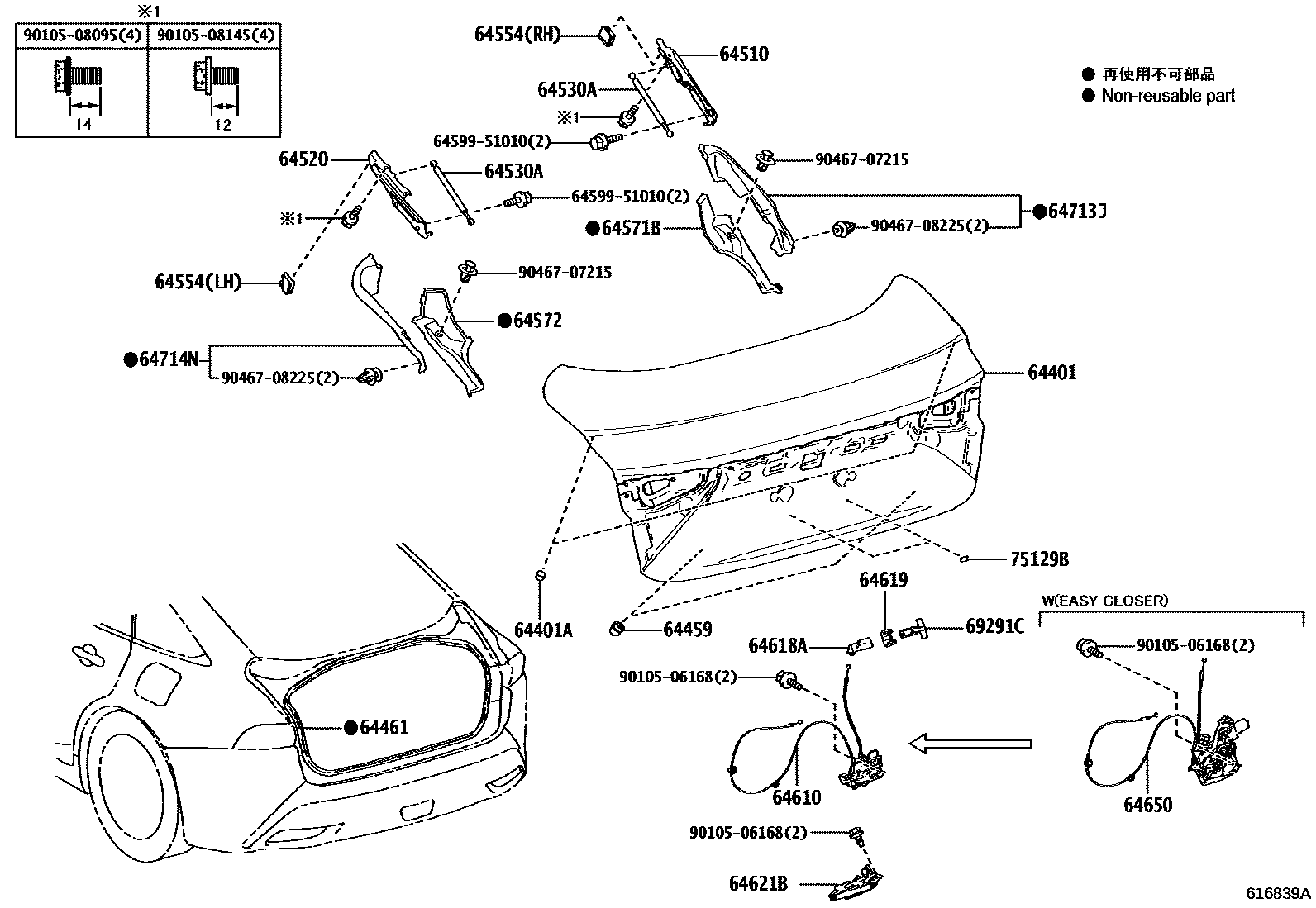

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-62080iJPD20202312-202411

CANADA SPEC

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main53384-60050×2iJPD20202312-202411

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116×2iJPD20202312-202411

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-62040iJPD20202312-202411

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-62040iJPD20202312-202411

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-62040iJPD20202011-202312

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W270×2iJPD20202011-202312

main64530-0W290×2iJPD20202011-202312

JIKOUSIKI

64554STOPPER, LUGGAGE DOOR BALANCER

main64554-30041iJPD20202312-202411

RH

main64554-30051iJPD20..S202411

LH

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-62020iJPD20202011-202312

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-62020iJPD20202312-202411

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-62040iJPD20..S202312-202411

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-30010-C1iJPD20202312-202411

BLACK,TRIM0#,2#

64619PLATE, LUGGAGE LOCK CONTROL CABLE

main64619-30030-C1iJPD20202312-202411

BLACK,TRIM0#,2#

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-30150iJPD20202312-202411

64650CLOSER ASSY, LUGGAGE DOOR

main64650-62020iJPD20..H202312-202411

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64712-62010iJPD20202312-202411

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64713-62040iJPD20202312-202411

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-53012iJPD20202312-202411

75129BCUSHION, REAR LICENCE PLATE

main75129-30010×2iJPD20202312-202411

6459951010BOLT, LUGGAGE DOOR HINGE

main64599-51010

9010506168

main90105-06168

9010508095

main90105-08095

9010508145

main90105-08145

9046707215

main90467-07215

9046708225

main90467-08225

25 parts on this diagram · 1 diagram in section
