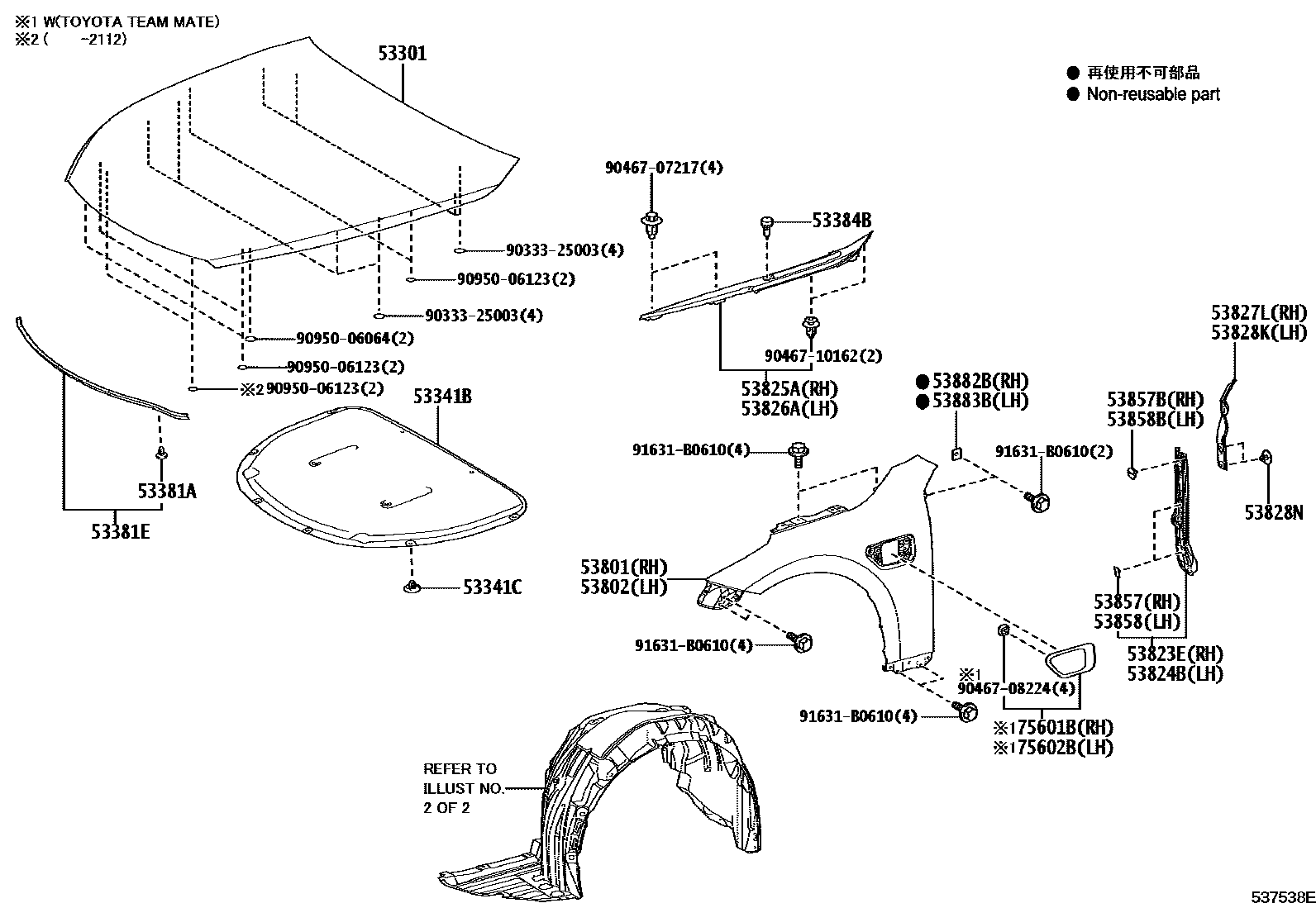

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381ESEAL, HOOD TO RADIATOR SUPPORT
53384BCUSHION, HOOD, CENTER
53801FENDER SUB-ASSY, FRONT RH
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
53802FENDER SUB-ASSY, FRONT LH
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
BLACK
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
75601BMOULDING SUB-ASSY, FRONT FENDER, RH
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,PRECIOUS WHITE PEARL,090
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,PRECIOUS SILVER,1J6
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,PRECIOUS METAL,1L5
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,BLACK,202
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,EMOTIONAL RED 2,3U5
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,FORCE BLUE MULTIPLE LAYER,8Y7
75602BMOULDING SUB-ASSY, FRONT FENDER, LH
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,PRECIOUS WHITE PEARL,090
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,PRECIOUS SILVER,1J6
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,PRECIOUS METAL,1L5
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,BLACK,202
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,EMOTIONAL RED 2,3U5
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,FORCE BLUE MULTIPLE LAYER,8Y7
9033325003
main90333-25003
9046707217
main90467-07217
9046708224
main90467-08224
9046710162
main90467-10162
9095006064
main90950-06064
9095006123
main90950-06123
91631B0610
main91631-B0610
30 parts on this diagram · 2 diagrams in section
