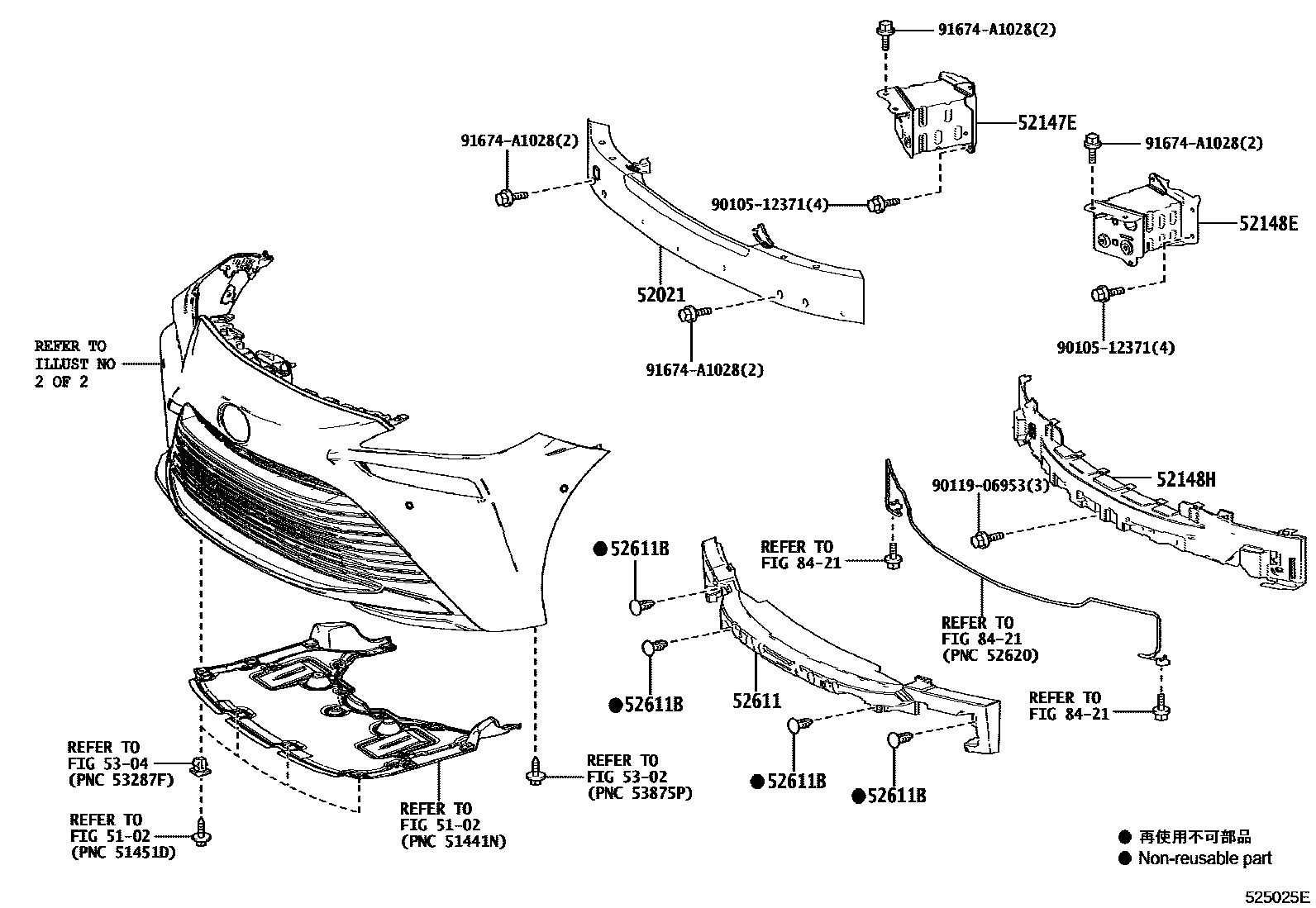

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-62040supersedes 52021-62050iJPD20202011-202306

CANADA SPEC

main52021-62050iJPD20..S202411

CANADA SPEC

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main57107-62020iJPD20202312-202411

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main57108-62020iJPD20202312-202411

52148HBRACKET, FRONT BUMPER MOUNTING, NO.2

main52148-62010iJPD20202312-202411

52611ABSORBER, FRONT BUMPER ENERGY

main52611-62020iJPD20202312-202411

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07049-23×4iJPD20202312-202411

BLACK

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

8421AIR BAG

→ Go to FIG 84-21

9010512371

main90105-12371

9011906953

main90119-06953

91674A1028

main91674-A1028

13 parts on this diagram · 2 diagrams in section
