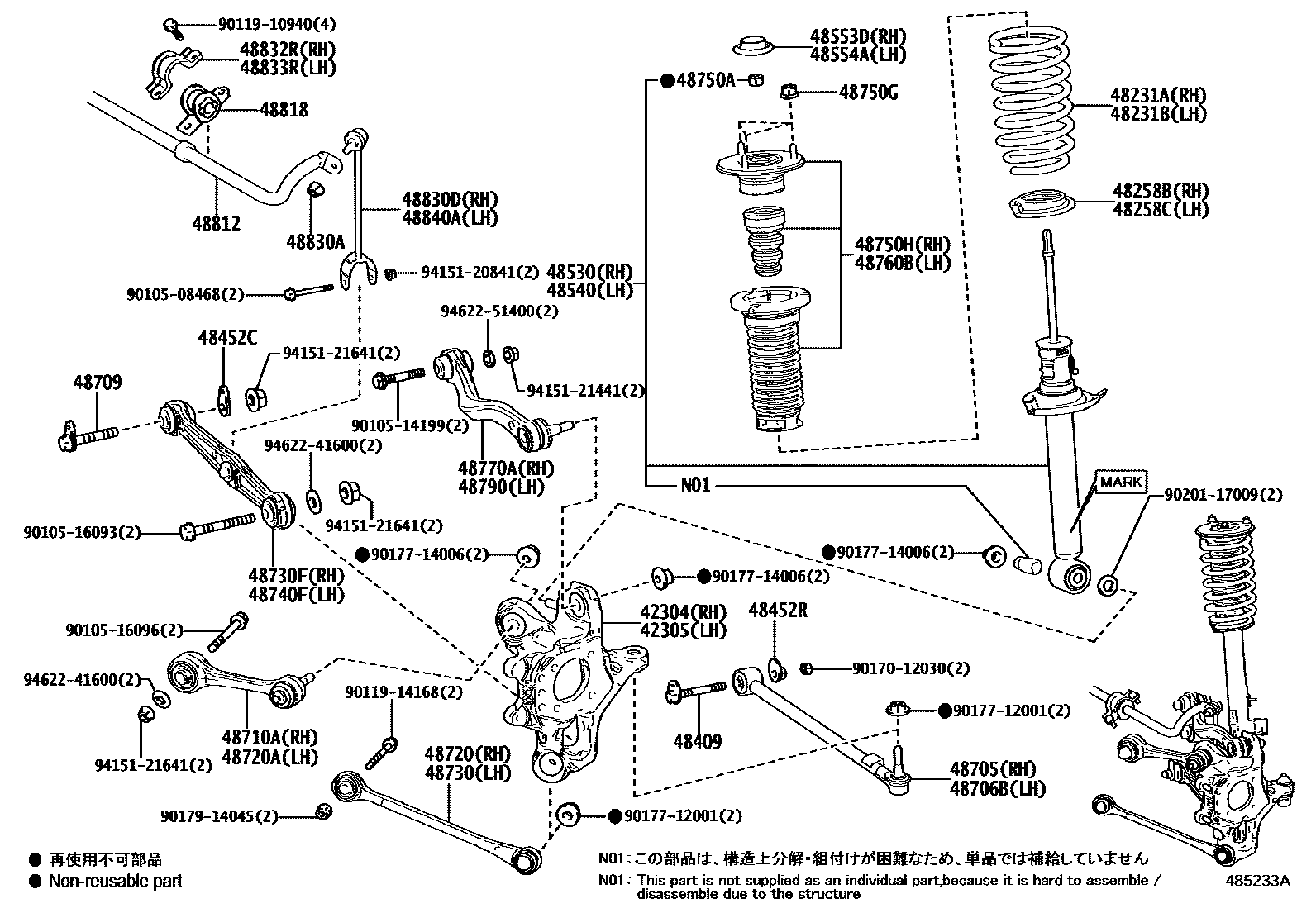

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452CPLATE, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-62020
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-62020
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720ARM ASSY, LOWER CONTROL, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730ARM ASSY, LOWER CONTROL, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
48840ALINK ASSY, REAR STABILIZER, LH
9010508468
main90105-08468
9010514199
main90105-14199
9010516093
main90105-16093
9010516096
main90105-16096
9011910940
main90119-10940
9011914168
main90119-14168
9017012030
main90170-12030
9017712001
main90177-12001
9017714006
main90177-14006
9017914045
main90179-14045
9020117009
main90201-17009
9415120841
main94151-20841
9415121441
main94151-21441
9415121641
main94151-21641
9462241600
main94622-41600
9462251400
main94622-51400
51 parts on this diagram · 2 diagrams in section
