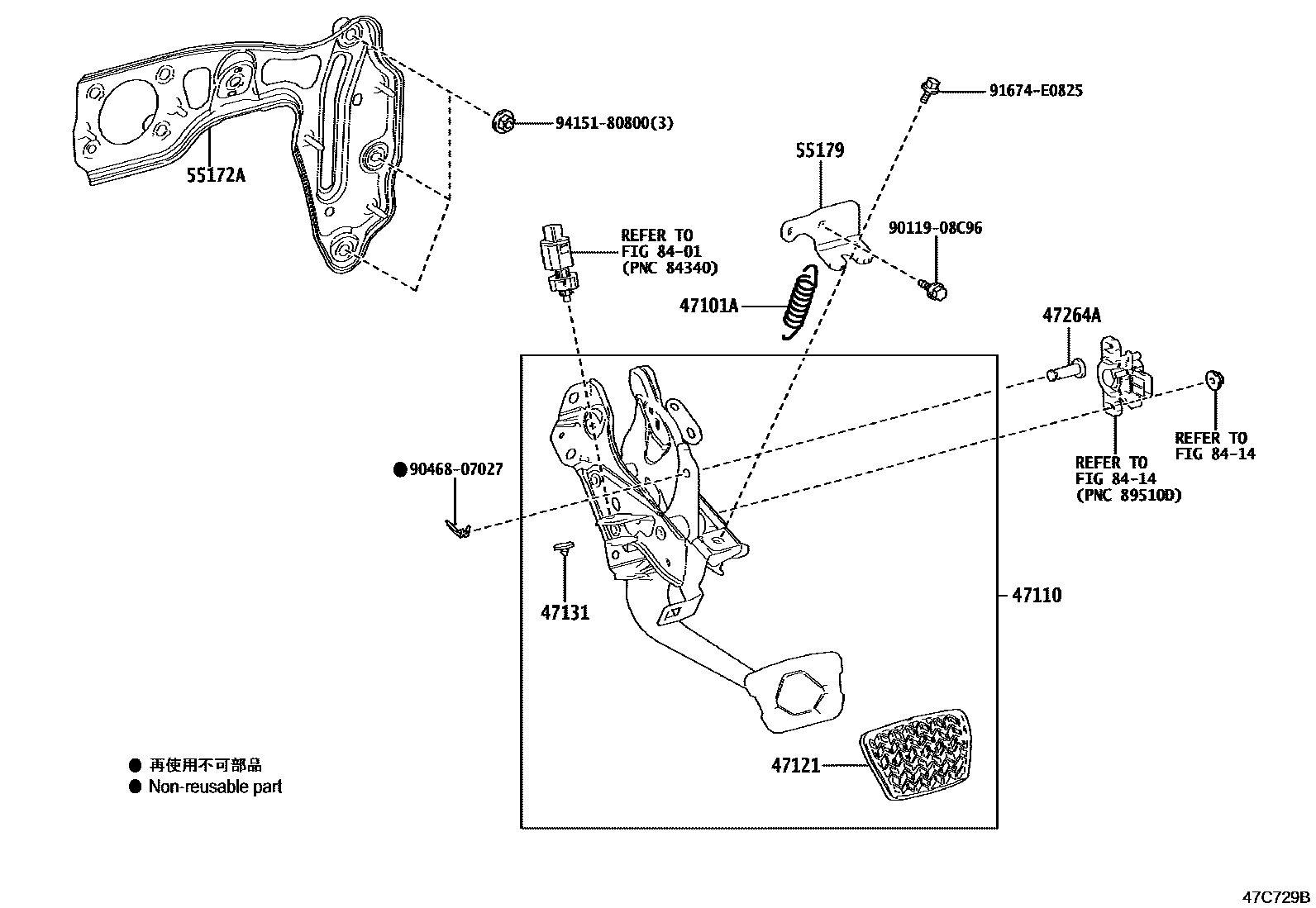

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iJPD20202312-202411

47110SUPPORT ASSY, BRAKE PEDAL

main47110-62030iJPD20202312-202411

47121PAD, BRAKE PEDAL

main47121-62010iJPD20202312-202411

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iJPD20202312-202411

47264APIN(FOR PUSH ROD)

main90240-08078iJPD20202312-202411

55172ABASE, BRAKE PEDAL SUPPORT

main55172-62010iJPD20202312-202411

55179REINFORCEMENT, BRAKE PEDAL SUPPORT

main55179-62060iJPD20202312-202411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046807027

main90468-07027

91674E0825

main91674-E0825

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
