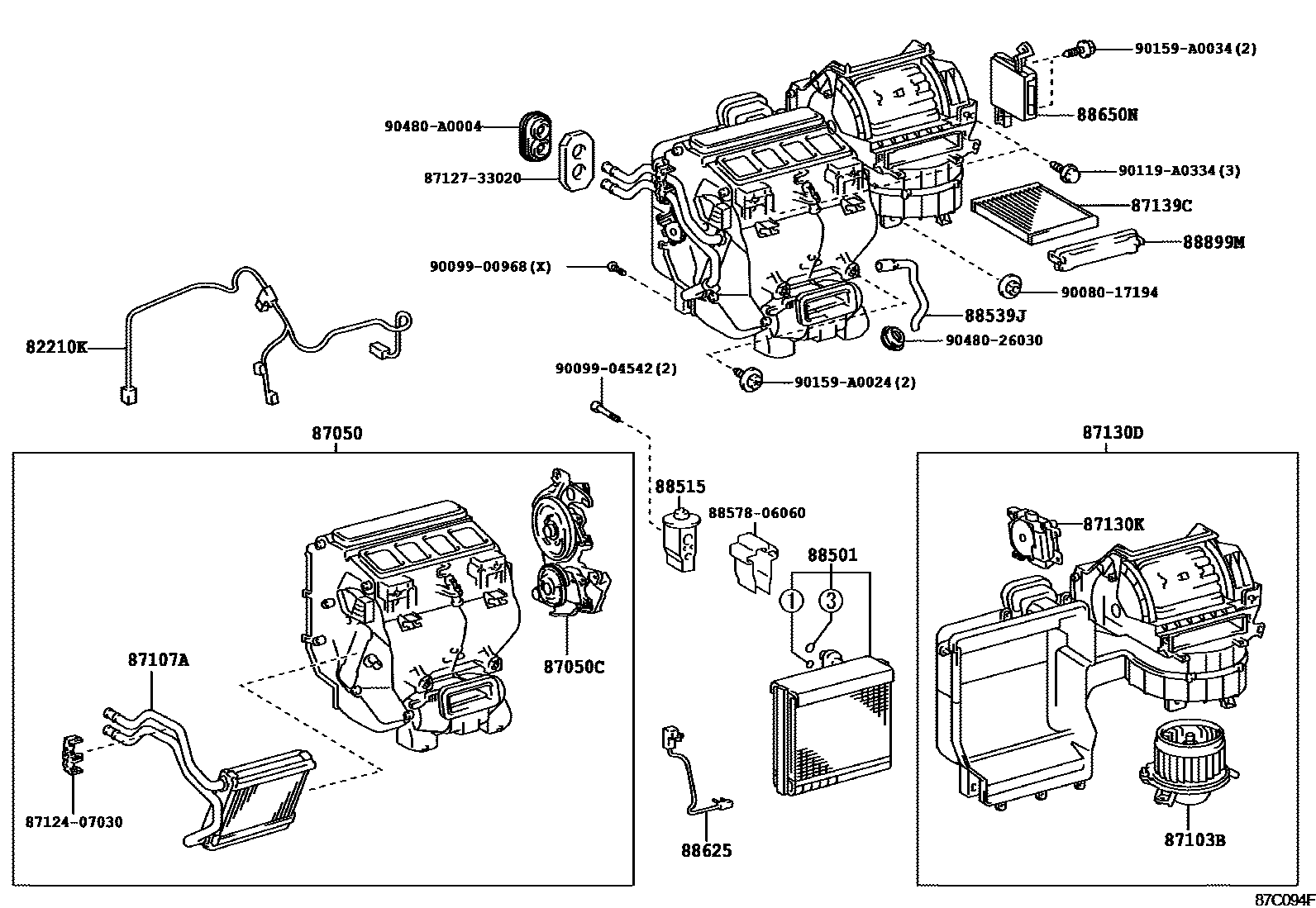

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06111iASV50..LE201409-201606

main82212-06121iASV50..XLE201409-201606

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06570iASV50..LE,N201109-201211

main87050-06571iASV50..LE,N201211-201409

main87050-06580iASV50..XLE201109-201211

main87050-06581iASV50..XLE201211-201409

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06290iASV50..LE201409

main87106-06300iASV50..XLE201109-201409

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E040iASV50201109-201409

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07030iASV50201109-201409

87130DBLOWER ASSY

main87130-06330iASV50201109-201409

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-07140iASV50201109-201409

87139CFILTER, CLEAN AIR

main87139-02090iASV50201109-201211

MICRO DUST FILTER

main87139-07020iASV50201212-201409

POLLEN FILTER

main87139-50060iASV50201109-201204

DEODORANT FILTER

main87139-50100iASV50201205-201409

*DPF

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06230iASV50201109-201404

88515VALVE, COOLER EXPANSION

main88515-02530iASV50201405-201409

main88515-68010iASV50201109-201405

88539JHOSE, DRAIN COOLER

main88539-06121iASV50201109-201409

88625THERMISTOR, COOLER, NO.1

main88620-06020iASV50201109-201409

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-06490iASV50..LE,N201109-201204

main88650-06491iASV50..LE,N201204-201212

main88650-06510iASV50..XLE201109-201204

main88650-06511iASV50..XLE201204-201212

main88650-06670iASV50..LE,N201212-201312

main88650-06671iASV50..LE201409

main88650-06690iASV50..XLE201212-201312

main88650-06691iASV50..XLE201312-201409

main88650-06880iASV50..XLE201409

88899MPLATE, COVER(FOR AIR FILTER)

main88899-07010iASV50201109-201409

8712407030CLAMP, HEATER

main87124-07030

8712733020PACKING, HEATER AIR DAMPER

main87127-33020

8857806060PAKING, COOLER AIR DUCT

main88578-06060

9008017194

main90080-17194

9009900968

main90099-00968

9009904542

main90099-04542

90119A0334

main90119-A0334

90159A0024

main90159-A0024

90159A0034

main90159-A0034

9048026030

main90480-26030

90480A0004

main90480-A0004

25 parts on this diagram · 3 diagrams in section
