MIRROR

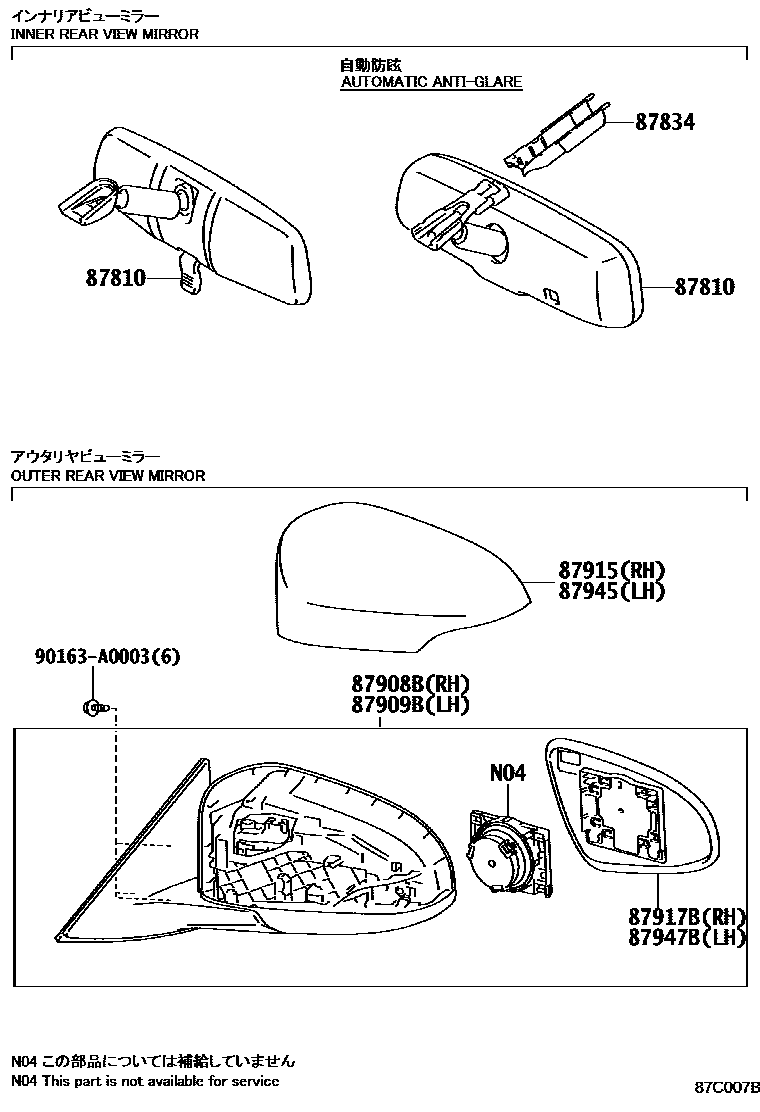

87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
87908BMIRROR SUB-ASSY, RH
87909BMIRROR SUB-ASSY, LH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
SUPER WHITE 2,040
GRAY M.M.,1H1
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
LT.YELLOW M.M.,5B2
DK.BLUE M.M.,8W6
87917BMIRROR, OUTER REAR VIEW, RH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BEIGE ME.,4T8
LT.YELLOW M.M.,5B2
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W6
SUPER WHITE 2,040
GRAY M.M.,1H1
DK. STEEL MC.,1H2
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
LT.YELLOW M.M.,5B2
DK.BLUE M.M.,8W6
87947BMIRROR, OUTER REAR VIEW, LH
90163A0003
main90163-A0003
9 parts on this diagram · 2 diagrams in section
