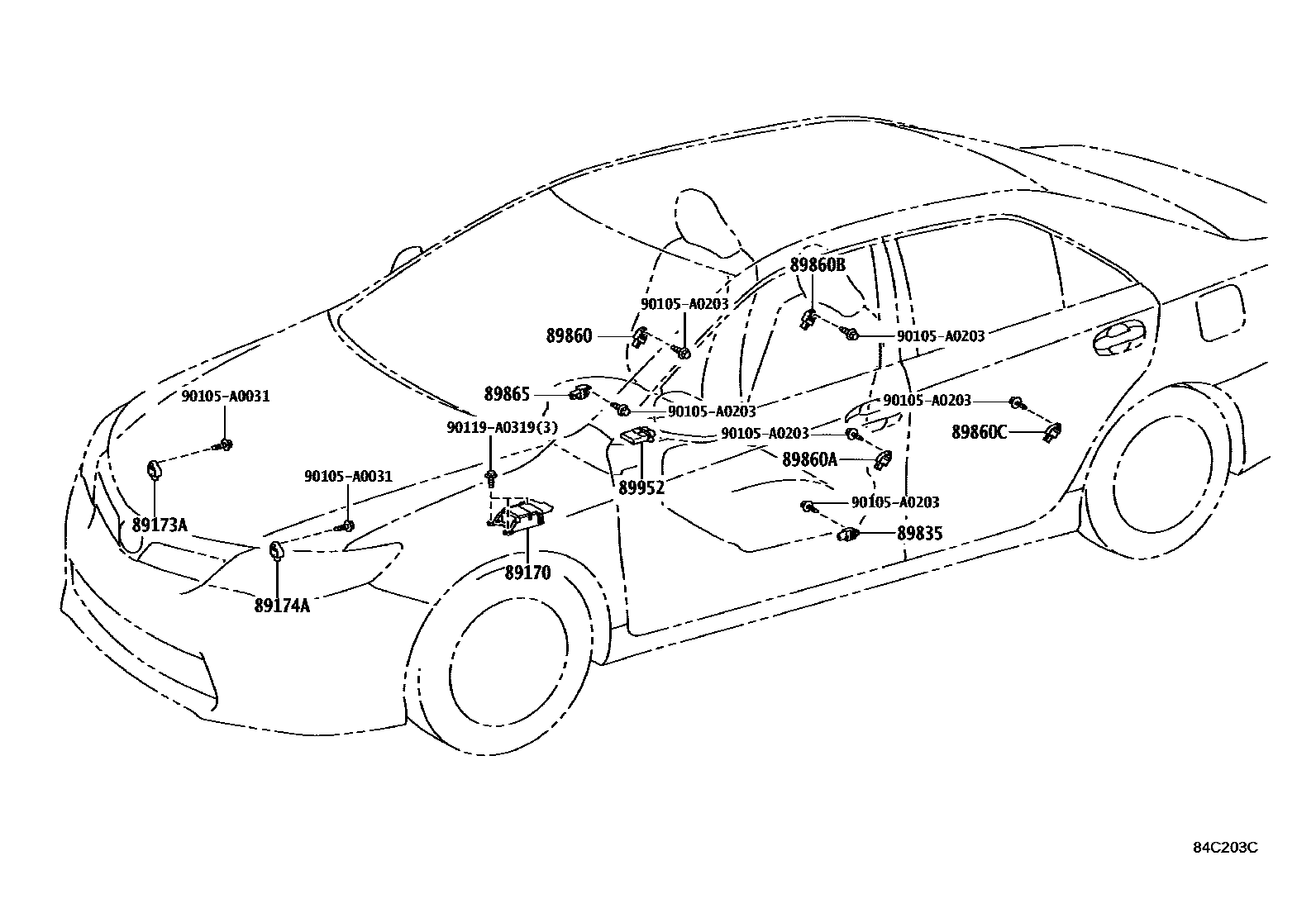

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-06660iASV50201109-201206

89173ASENSOR, AIRBAG, FRONT RH

main89173-09820iASV50201206-201409

P/N LABEL=8917309820

main89173-09A00iASV50201109-201206

P/N LABEL=8917309A00

89174ASENSOR, AIRBAG, FRONT LH

main89173-09820iASV50201206-201409

P/N LABEL=8917309820

main89173-09A00iASV50201109-201206

P/N LABEL=8917309A00

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-06070iASV50201206-201409

P/N LABEL=8983106070

main89831-0E020iASV50201109-201206

P/N LABEL=898310E020

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-06060iASV50201206-201409

P/N LABEL=8983106060

main89831-0R010iASV50201109-201206

P/N LABEL=898310R010

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-06060iASV50201206-201409

P/N LABEL=8983106060

main89831-0R010iASV50201109-201206

P/N LABEL=898310R010

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-06060iASV50201206-201409

P/N LABEL=8983106060

main89831-0R010iASV50201109-201206

P/N LABEL=898310R010

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-06060iASV50201206-201409

P/N LABEL=8983106060

main89831-0R010iASV50201109-201206

P/N LABEL=898310R010

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-06070iASV50201206-201409

P/N LABEL=8983106070

main89831-0E020iASV50201109-201206

P/N LABEL=898310E020

89952COMPUTER, OCCUPANT DETECTION

main89952-06030iASV50201109-201202

main89952-06031iASV50201202-201409

main89952-0E011iASV50201409-201606

90105A0031

main90105-A0031

90105A0203

main90105-A0203

90119A0319

main90119-A0319

13 parts on this diagram · 2 diagrams in section
