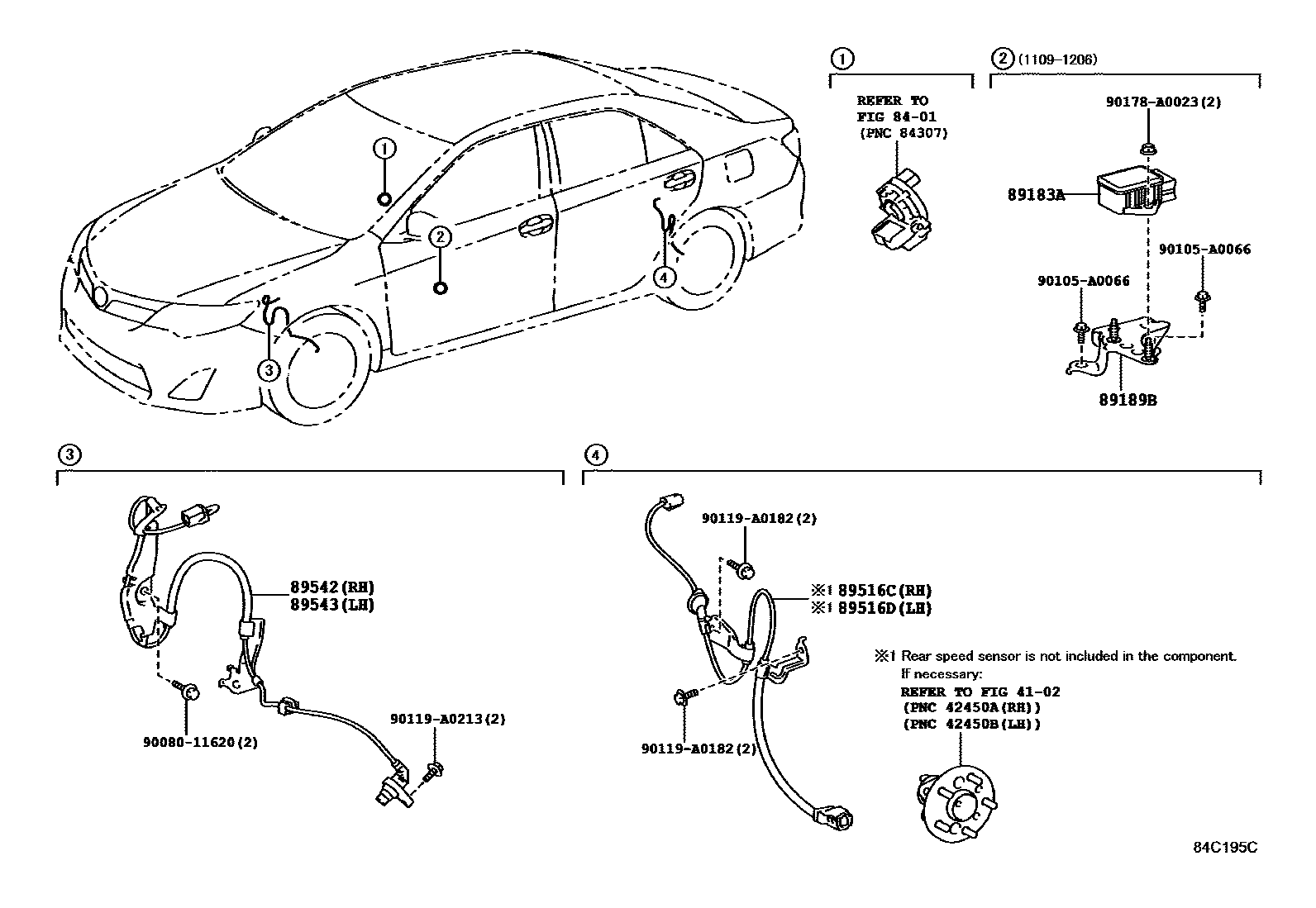

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89183-0T010iASV50201109-201206

89189BBRACKET, YAWRATE SENSOR

main89189-33010iASV50201109-201206

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-06150iASV50201109-201409

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-06160iASV50201109-201409

89542SENSOR, SPEED, FRONT RH

main89542-06040iASV50201109-201409

main89542-06120iASV50201506

main89542-33110iASV50201409-201506

89543SENSOR, SPEED, FRONT LH

main89543-06040iASV50201109-201409

main89543-06120iASV50201506

main89543-33100iASV50201409-201506

9008011620

main90080-11620

90105A0066

main90105-A0066

90119A0182

main90119-A0182

90119A0213

main90119-A0213

90178A0023

main90178-A0023

13 parts on this diagram · 1 diagram in section
