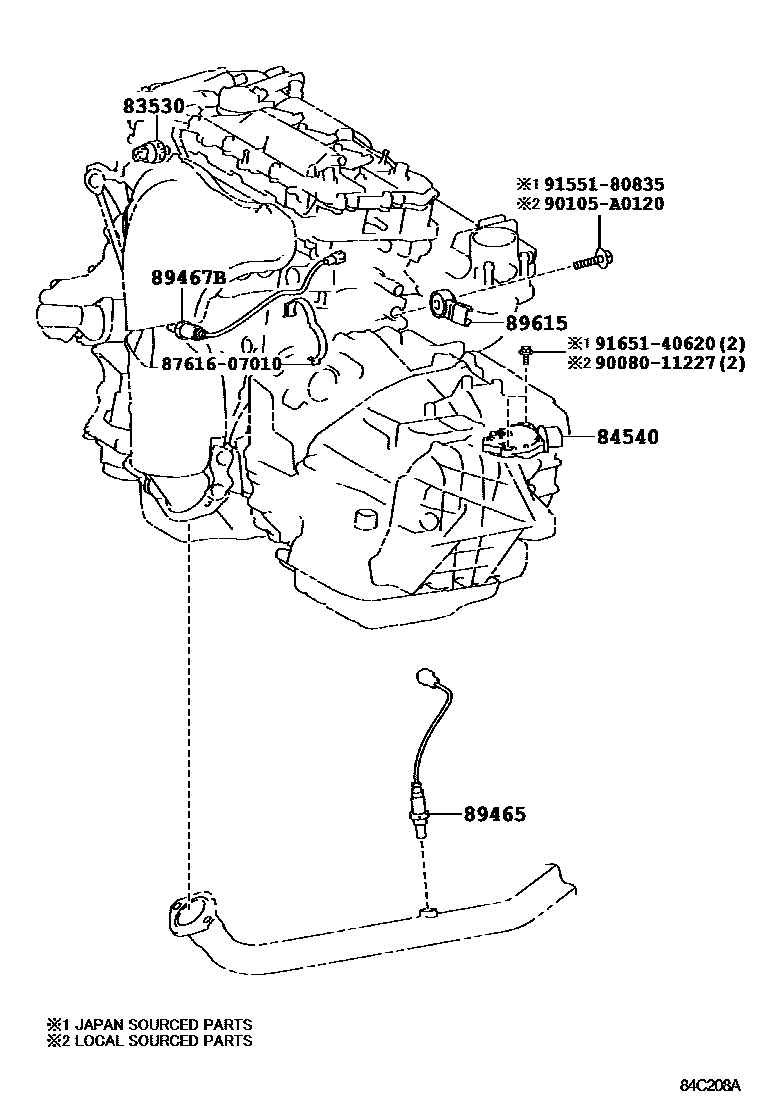

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1STEERING 0009 1SEAT 0010 1DOOR,ROOF,FLOOR & LUGGAGE 0011 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASV50201109-201409

84540SWITCH ASSY, NEUTRAL START

main84540-07010iASV50201109-201606

(L)

main84540-33010iASV50201109-201606

(J)

89465SENSOR, OXYGEN

main89465-06290iASV50201109-201409

89467BSENSOR, AIR FUEL RATIO

main89467-06120iASV50201109-201409

89615SENSOR, KNOCK CONTROL

main89615-06010iASV50201109-201409

(L)

main89615-06010iASV50201409

main89615-20090iASV50201109-201409

(J)

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011227

main90080-11227

90105A0120

main90105-A0120

9155180835

main91551-80835

9165140620

main91651-40620

10 parts on this diagram · 11 diagrams in section
