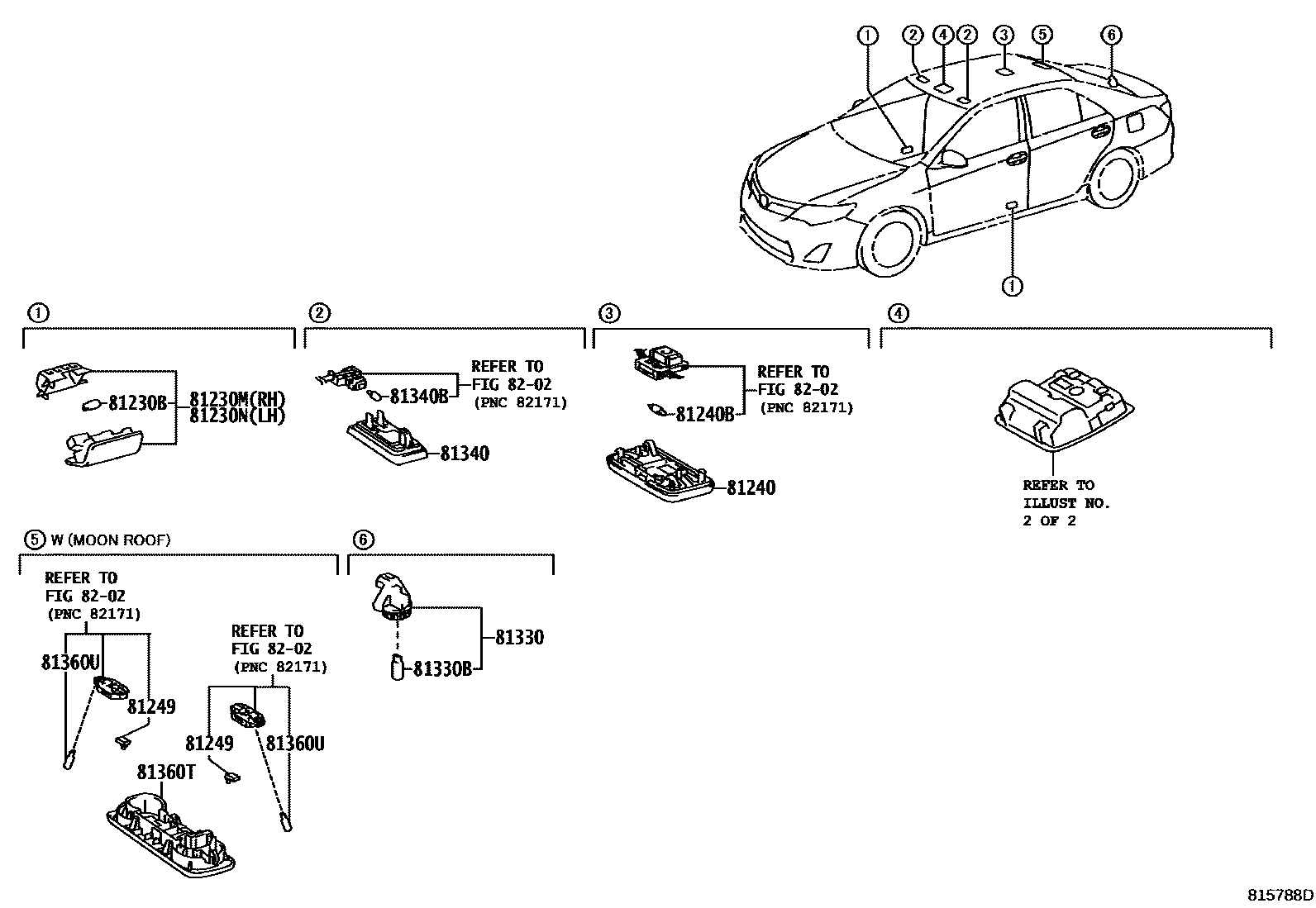

INTERIOR LAMP

0001 1 0002 1 0003 1W(MOON ROOF)

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iASV50201109-201409

12V 5W

81230MLAMP ASSY, COURTESY, RH

main81230-06040iASV50201312-201409

main81230-47010iASV50201109-201311

81230NLAMP ASSY, COURTESY, LH

main81230-06040iASV50201312-201409

main81230-47010iASV50201109-201311

81240LAMP ASSY, ROOM, NO.1

main81240-35020-A1iASV50..LE,N201109-201409

IVORY,TRIM0#

main81240-35020-A3iASV50201409-201606

FLAXEN,TRIM0#

main81240-35020-B2iASV50..LE,N201109-201409

GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iASV50..LE,N201109-201409

12V 8W

81249SWITCH, ROOM LAMP

main84532-58010×2iASV50201504

MOON ROOF-WITH

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iASV50201109-201409

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iASV50201109-201409

12V 3.8W

81340LAMP ASSY, VANITY

main81340-30100-A1×2iASV50..LE; ASV50..XLE201109-201409

IVORY,TRIM0#; MOON ROOF-WITH,IVORY,TRIM0#

main81340-30100-B1×2iASV50..LE; ASV50..XLE201109-201409

GRAY,TRIM1#; MOON ROOF-WITH,GRAY,TRIM1#

main81340-06030×2iASV50201509

MOON ROOF-WITH

main81340-30110×2iASV50201409-201508

MOON ROOF-WITH

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iASV50..LE; ASV50..XLE201109-201409

12V 8W; 12V 8W,MOON ROOF-WITH

81360TLAMP ASSY, SPOT

main81360-06060-A0iASV50..LE; ASV50..XLE201109-201409

IVORY,TRIM0#; MOON ROOF-WITH,IVORY,TRIM0#

main81360-06060-B0iASV50..LE; ASV50..XLE201109-201409

GRAY,TRIM1#; MOON ROOF-WITH,GRAY,TRIM1#

main81360-06060-A1iASV50201409-201606

MOON ROOF-WITH,FLAXEN,TRIM0#

81360UBULB, SPOT LAMP

main90981-11062×2iASV50..LE; ASV50..XLE201109-201409

MOON ROOF-WITH

8202WIRING & CLAMP

→ Go to FIG 82-02

13 parts on this diagram · 3 diagrams in section
