HEADLAMP

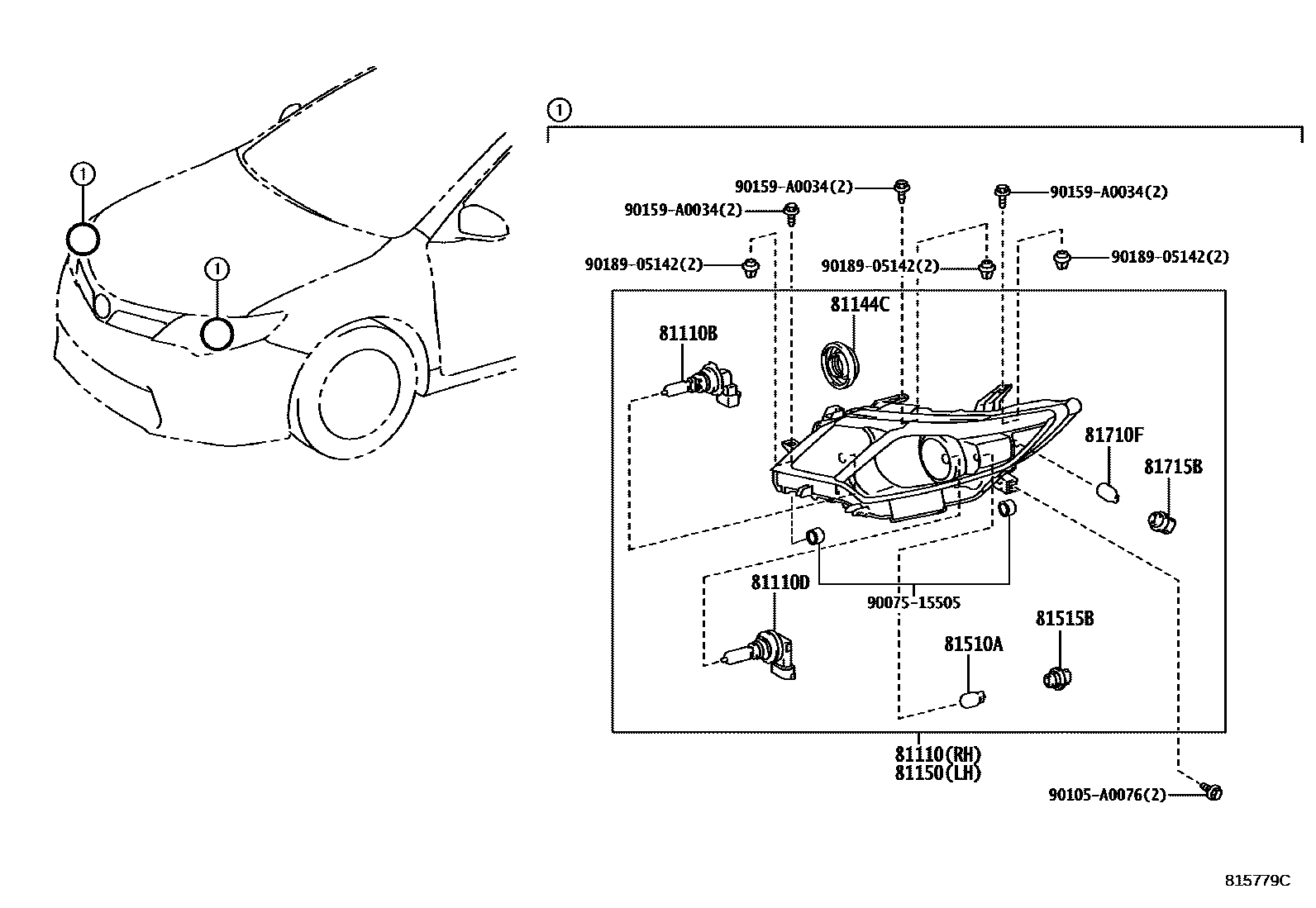

Parts diagram

81110HEADLAMP ASSY, RH

main81110-06470i201109-201409

main81110-06D90i201409-201606

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i201109-201409

12V65W(SAE),60W(ECE); 12V65W(SAE),60W(ECE),HEADLAMP-DISCHARGE

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2i201109-201409

12V 55W,HALOGEN

main90981-13085×2i201409-201606

12V 55W,HALOGEN

81144CCOVER, HEADLAMP SOCKET

main90075-65006×2i201109-201409

81150HEADLAMP ASSY, LH

main81150-06470i201109-201409

main81150-06D90i201409-201606

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2i201109-201409

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-06470×2i201109-201409

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050×2i201109-201409

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60001×2i201109-201409

main90075-60077×2i201409-201606

9007515505

main90075-15505

90105A0076

main90105-A0076

90159A0034

main90159-A0034

9018905142

main90189-05142

13 parts on this diagram · 3 diagrams in section
