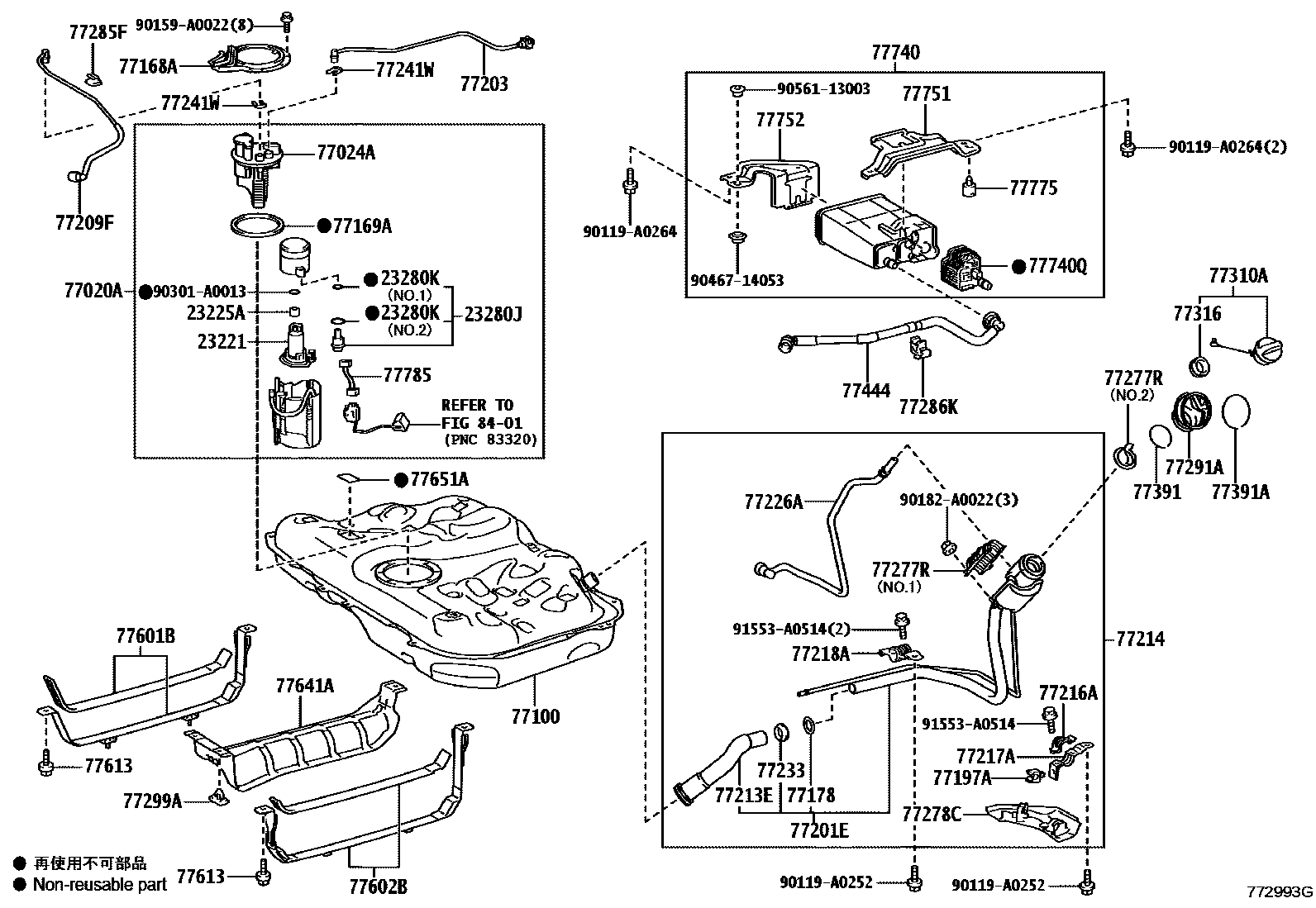

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23221PUMP, FUEL

main23220-0V150supersedes 23220-0V040i2ARFE..ASV50201212-201409

23225ASPACER, FUEL PUMP

main23225-0V010i2ARFE..ASV50201109-201409

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ARFE..ASV50201109-201409

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ARFE..ASV50201109-201409

NO.1

main90301-15024i2ARFE..ASV50201109-201409

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-06282iASV50201109-201409

main77020-06302iASV50..LE,N201109-201409

EXHAUST EMISSION CONTROL-USA PZEV

main77020-06305supersedes 77020-06286iASV50201410-201502

CALIFORNIA SPEC

main77020-06306supersedes 77020-06286iASV50201503

CALIFORNIA SPEC

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-06151iASV50201109-201409

main77024-06211iASV50..LE,N201109-201409

EXHAUST EMISSION CONTROL-USA PZEV

main77024-06212supersedes 77024-06153iASV50201410-201502

CALIFORNIA SPEC

main77024-06213supersedes 77024-06153iASV50201503

CALIFORNIA SPEC

77100TANK ASSY, FUEL

main77001-06190iASV50201409

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33070iASV50201109-201409

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iASV50201109-201409

main77169-53010iASV50..LE,N201109-201409

EXHAUST EMISSION CONTROL-USA PZEV

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-06010iASV50201109-201409

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-0R010iASV50201109-201409

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-06161iASV50201212-201409

main77201-06170supersedes 77201-06160iASV50201109-201212

EXHAUST EMISSION CONTROL-USA PZEV

main77201-06171iASV50..LE,N201212-201409

EXHAUST EMISSION CONTROL-USA PZEV

77203TUBE SUB-ASSY, FUEL TANK BREATHER ELBOW

main77203-06070iASV50201109-201409

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-06051supersedes 77209-06050iASV50201212-201409

main77209-06052iASV50201409

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-06060iASV50201109-201409

77214PIPE, FUEL TANK FILLER

main77210-06162iASV50201301-201409

main77210-06170supersedes 77210-06160iASV50201109-201212

EXHAUST EMISSION CONTROL-USA PZEV

main77210-06171supersedes 77210-06161iASV50201212-201301

EXHAUST EMISSION CONTROL-USA PZEV

main77210-06172iASV50..LE,N201301-201409

EXHAUST EMISSION CONTROL-USA PZEV

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-06100iASV50201109-201409

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-06090iASV50201109-201409

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-06090iASV50201109-201301

main77218-06091iASV50201409

(L)

main77218-33031iASV50201301-201401

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-06120iASV50201109-201409

77233JOINT, FUEL HOSE

main77233-06020iASV50201109-201212

main77233-06030iASV50201409

77241WCLIP, TUBE JOINT

main77241-06020×2iASV50201109-201409

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-06050iASV50201109-201409

NO.1

main77277-33090iASV50201109-201212

NO.2

main77277-33100iASV50201212-201409

NO.2

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-06050iASV50201109-201409

77285FCLAMP, FUEL TUBE, NO.1

main77285-33110iASV50201109-201409

77286KCLAMP, FUEL TUBE, NO.2

main77286-06050iASV50201109-201409

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-06110iASV50201109-201409

main77291-06160iASV50201409

77299ACLAMP, FUEL TUBE, NO.5

main77299-06070×3iASV50201402-201409

main77299-52010×3iASV50201109-201401

77310ACAP ASSY, FUEL TANK

main77300-07030iASV50201308-201409

main77300-07020supersedes 77300-07010iASV50201212-201308

EXHAUST EMISSION CONTROL-USA PZEV

main77300-07040iASV50..XLE201308-201312

EXHAUST EMISSION CONTROL-USA PZEV

main77300-75010supersedes 77300-06040iASV50201109-201212

EXHAUST EMISSION CONTROL-USA PZEV

77316GASKET, FUEL TANK CAP

main77316-06070iASV50201109-201409

main77316-06090iASV50..LE,N201212-201409

EXHAUST EMISSION CONTROL-USA PZEV

main77316-75020iASV50201109-201212

EXHAUST EMISSION CONTROL-USA PZEV

77391RING, FUEL INLET BOX

main77391-02041iASV50201109-201409

77391ARING, FUEL INLET BOX

main77391-06070iASV50201109-201409

main77391-06130iASV50201409

77444HOSE, FUEL TANK VENT

main77404-06100iASV50201109-201409

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06080iASV50..XLE201409-201411

main77601-06150iASV50201412

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06080iASV50..LE201409-201412

main77602-06090iASV50201109-201409

main77602-06150iASV50..LE201412

main77602-06160iASV50..XLE201412

77613BOLT, FUEL TANK BAND SET

main90119-10971×4iASV50201409

(J)

main90119-A0267×4iASV50201109-201409

77641APROTECTOR, FUEL TANK, NO.1

main77641-06010iASV50201109-201409

77651ACUSHION, FUEL TANK, NO.1

main77651-20090×5iASV50201409

77740CANISTER ASSY, CHARCOAL

main77740-06180iASV50201109-201409

main77740-06220iASV50..XLE201109-201312

EXHAUST EMISSION CONTROL-USA PZEV

77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER

main90910-AF004iASV50201409-201503

main90910-AF006iASV50201504

77751BRACKET, CHARCOAL CANISTER BASE

main77751-06110iASV50201109-201409

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-06050iASV50201109-201409

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-47010iASV50201109-201409

77785HARNESS, FUEL PUMP

main77785-06080supersedes 77785-06100iASV50201212-201409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0252

main90119-A0252

90119A0264

main90119-A0264

90159A0022

main90159-A0022

90182A0022

main90182-A0022

90301A0013

main90301-A0013

9046714053

main90467-14053

9056113003

main90561-13003

91553A0514

main91553-A0514

53 parts on this diagram · 3 diagrams in section
